Description

AT A GLANCE

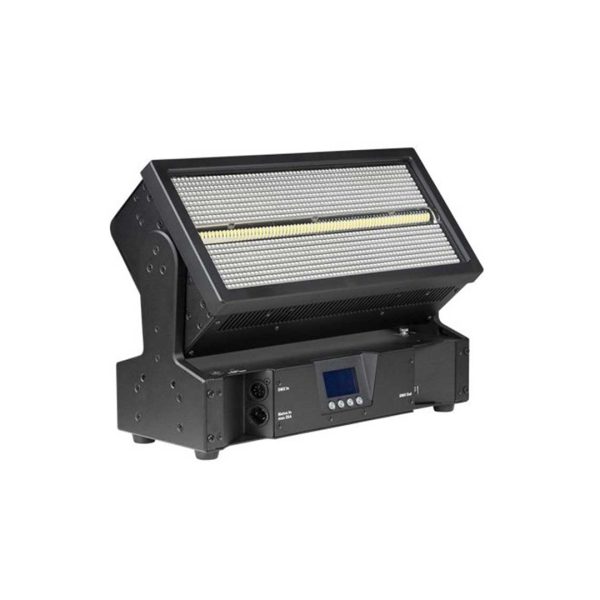

Light source
- Dual Mode – High power white tube LED’s surrounded by RGB plates
Movement
- 185° Tilt range
- 16 bit resolution motorized tilt
- Position feedback
- High precision 3 Phase stepping motor control
Strobe Control
- Separate control of intensity, rate and duration for tube and plate elements
- 6 pixels per plate section (12 total) can be individually controlled with color and intensity
- Center tube can be programmed in 12 pixel sections
- Macro channel with Pulse and Random effects
Control
- DMX-512 protocol
- Pixel mapping control
- Back-lit graphic-LCD menu
- Battery operation of menu
- Over-temperature protection
Specifications

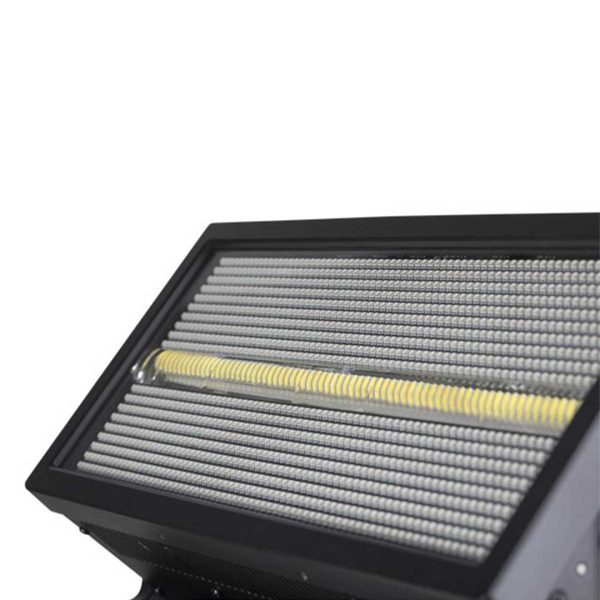

Light Source
Strobe Panels
- 1320 RGB LED’s across two panels
- Programmable into 12 pixel sections (2 x 6)
Strobe Tube
- 216 x White LED
- Programmable into 12 pixel sections

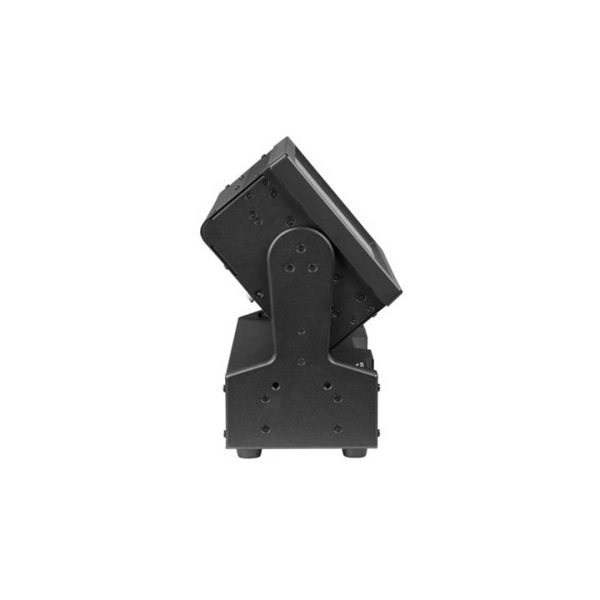

Movement
- Resolution: 16 Bit
- Position Feedback: yes
- Tilt (Degrees): 185°
Control
- Display
- Illuminated graphic LCD
- Self-charging buffer battery
- Protocol
- DMX-512
- Cooling
- Temperature controlled
- Overheating protection
Power Supply
- Mains voltage: 100-240 VAC / 50-60Hz
- Power (Watt @ 230V): 1200 Watt
- Fuse: 6.3 mm X 32 mm T15A
Connectors
- DMX Data
- XLR 5-pin in/out
- Mains Power
- Neutrik TRUE1 Input
Operating Conditions
- Maximum ambient temperature: 104°F (40°C)
Mounting Options
- Omega bracket attachments mount directly to rear of fixture
- Attachment points for safety wire
- Built in rubber feet for floor mounting
- Any orientation
Shipping
- Cardboard box
- 8 Way or 4 Way Flight cased options available
Housing Colors
- Standard color: black
- Optional: Special colors on request
Dimensions
- (L x W x H): head vertical
- 15.3” x 6.1” x 11.2” (39 cm x 15.4 cm x 28.4 cm)
Weight
- Weight (inc. bracket): 26.5 lbs. (12 kg)
- Weight (without bracket) 24 lbs. (10.8 kg)
