Description

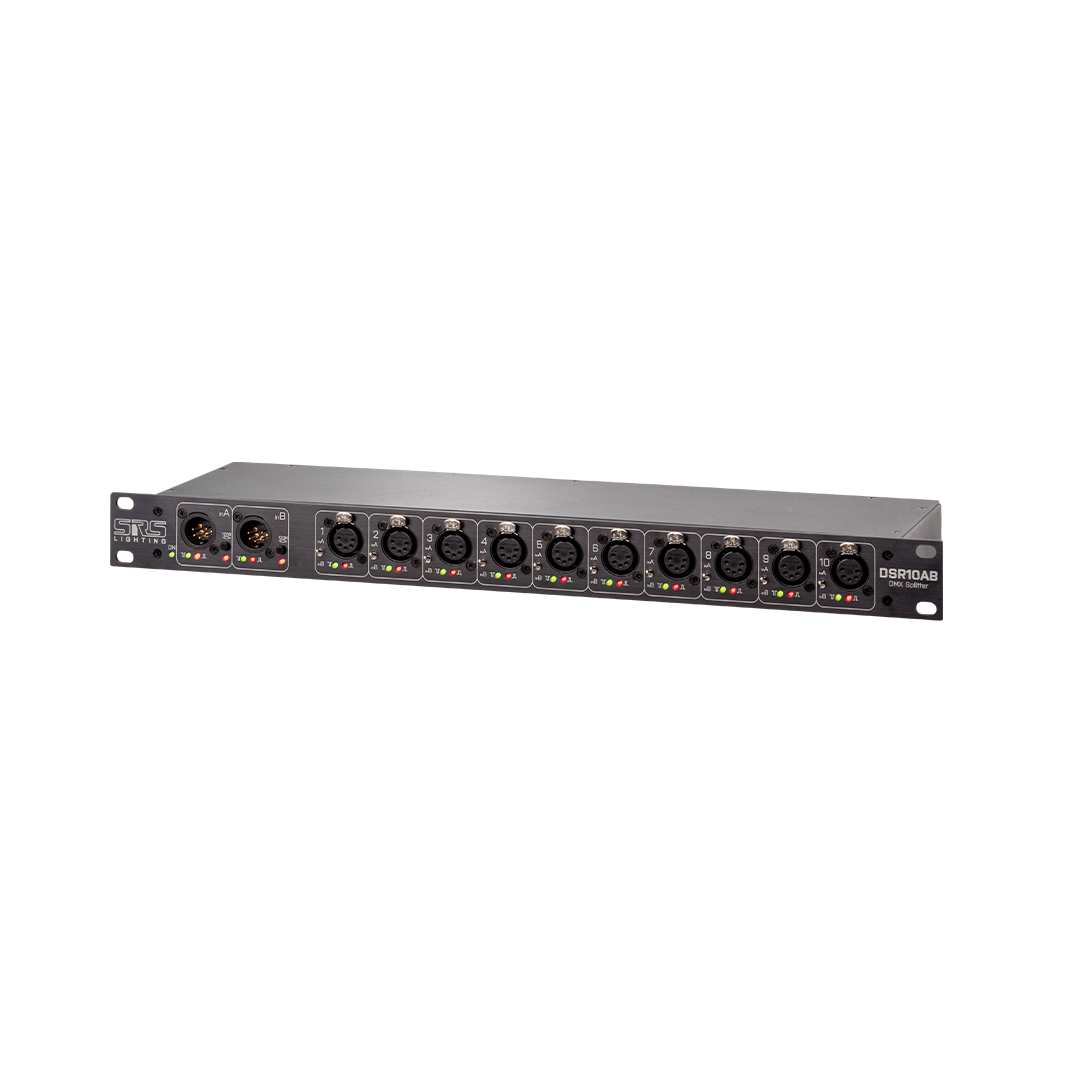

The DSR10AB is a 19” 1U rack-mount 10-channel splitter / booster of the DMX signal. It contains 2 inputs and 10 outputs on the front panel and additional 2 inputs on the rear panel. Every output features LED indication of the DMX status and an AB switch that allows choosing between the input channels A and B. All outputs are optically isolated up to 1000V.
The DSR10AB comes with 3- or 5-pin XLR connectors or a combination of them.
All SRS splitters are covered by a life-time warranty.
TECHNICAL SPECIFICATIONS
Specifications:
- 10-channel DMX splitter / booster with AB switch
- Optically isolated outputs 1000V
- Amplification on each output
- 2x LED indicator of the DMX line status for each output
- 2x Termination switch with LED indication
- 2x DMX input on the front panel

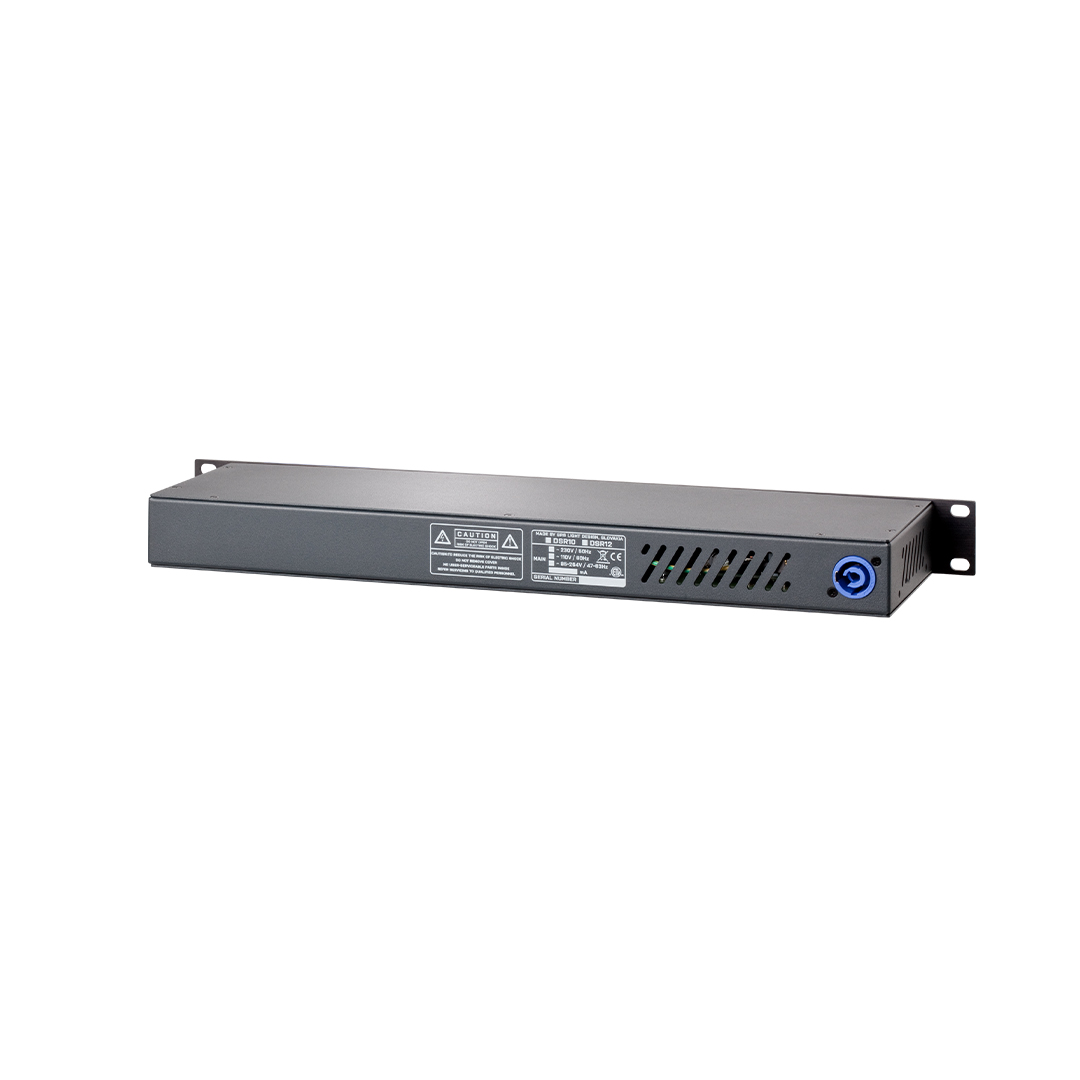

- 2x DMX input on the rear panel
- 1U, 19” rack-mount
- Optional wall mount via UNIHOLDER60
- Full range power supply: 85V-264V, 50/60Hz, 5W
- Neutrik PowerCon connector
- LIFE-TIME WARRANTY
- Vented casing for unrestricted airflow.
All SRS’s products deliver maximum reliability, durability, and the simplicity of control.
With its high level of industry experience, SRS develops and manufactures equipment that satisfies customer’s needs while exceeding their expectations.
* All Specifications subject to change without notice.
* Speak to us about customisations to suit your needs.
