ULTRA COMPACT, VERY BRIGHT LED PROFILER

CUSTOMIZABLE WITH DIFFERENT OPTICS

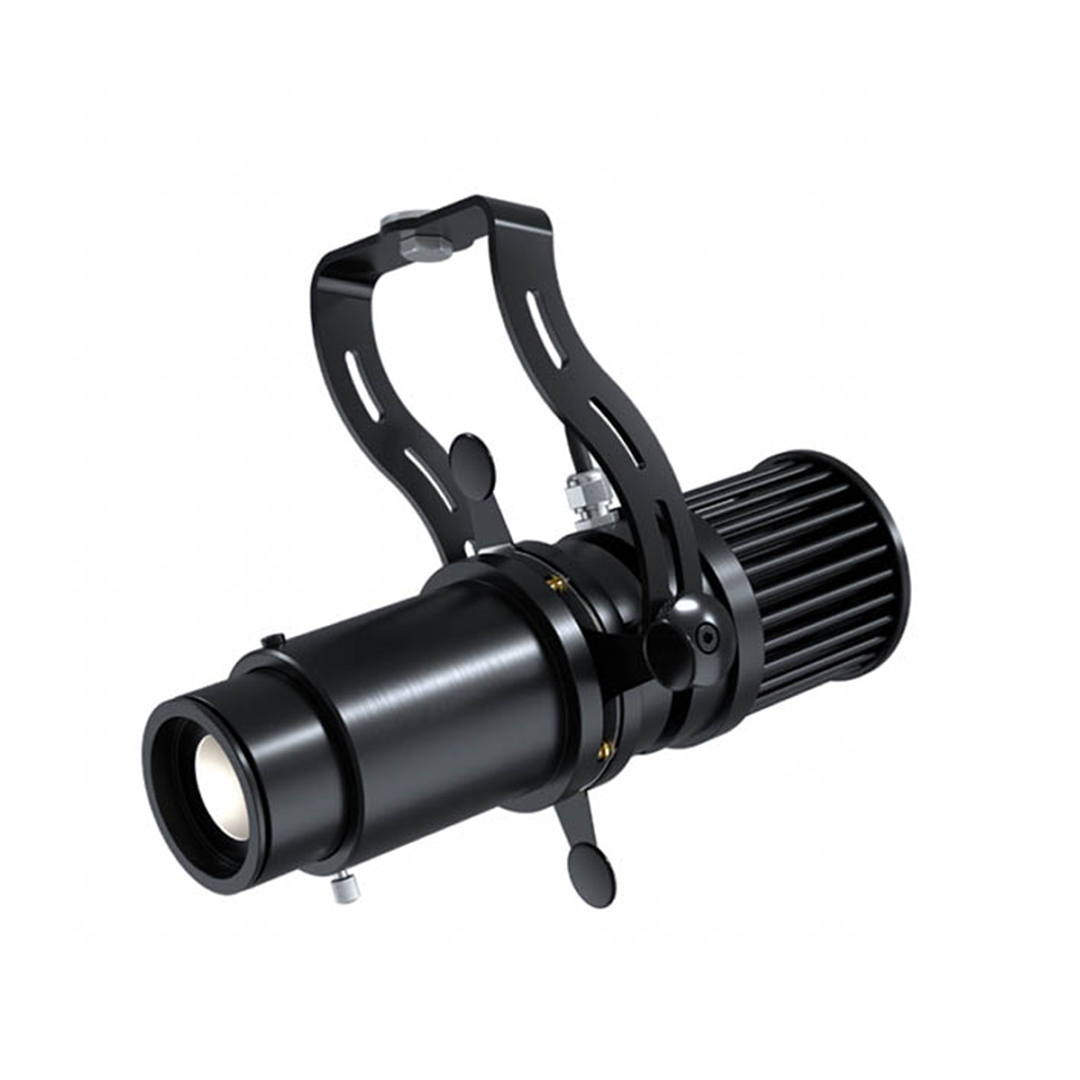

ARTEMIO PROFILE is an ultra compact profiler featuring an internal four-shutter shaping system.

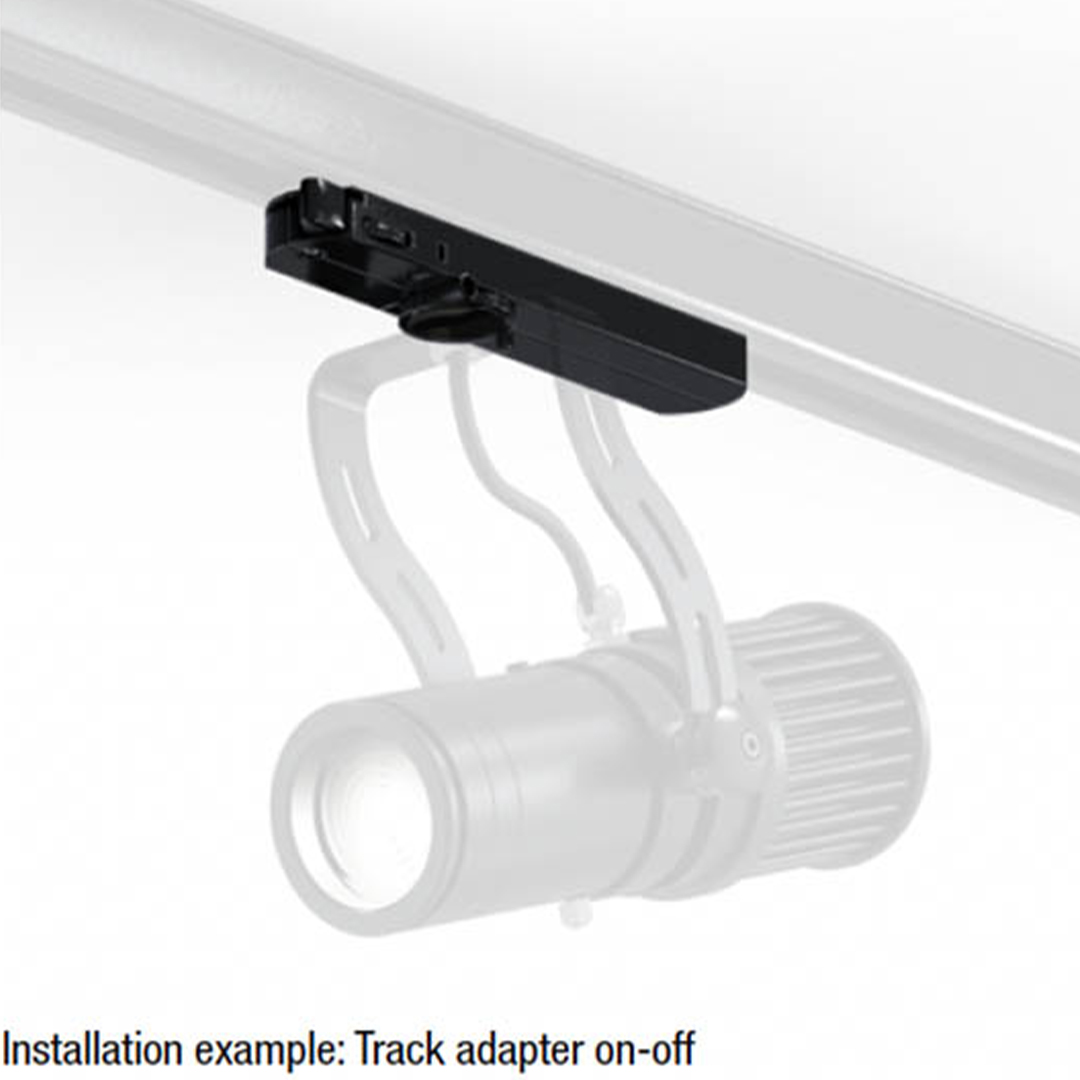

The unit is extra-versatile: in fact you can combine the light body with any of 5 different optics available, to fit any application with the right beam angle. The unit is equipped with a single high-power 25 W white LED and it is powered by a DRIVENET series external PSU. Thanks to a dedicated kit is possible to instal the fixture on electrified rails.

Description

Specifications

Light Source

Type
Single high-power White 3000K LED

Light Source Count
1

Light Source Lifetime
50,000 h

Lumen Output
1830

Colour Generation
3000k
Also available with 4000K(03.ART009) or 5000K(03.ART011) LED

Optical group
5 Interchangeable lenses got different beam angles
• Ultra-Narrow 8º
• Narrow 13º
• Narrow 18º
• Medium 24º
• Wide 33º

Control
Control Via the External PSU:
– DRIVENET 28C DIN @ 48Vdc
– DRIVENET 28 EZ / 416 / 832 (full-range 100-240Vac 50-60 Hz)
– DRIVENET 1664 (range 180-240Vac 50-60 Hz)
– External 36Vdc 700mA max Constant Current PSU

Power consumption: 25W max

Connectors

Power supply: 2 x 0,5 mm2 cable (2 m length)

Thermal Specifications

Cooling convection only

min. ambient temperature (Ta min.)
-10 °C / 14 °F

max. operating temperature
40°C / 104°F

Location
Outdoor permanent

Construction

Housing Colour
Black

Housing Material
Aluminum

Protection Rating
IP 20

Dimensions & Weight
Length
201.3 mm / 7.93 in

Height
157.35 mm / 6.19 in

Width
110 mm / 4.33 in

Weight
0.9 kg / 2 lbs
