Dive 6

DIVE 6 FC is an IP68 underwater projector with 6 Full Color LEDs. The unit is fitted with an adjustable bracket or a round flange for recessed installation and it features a reinforced structure that makes it reliable for long-term use. The unit is available with different optics and it is suitable for medium underwater…

Description

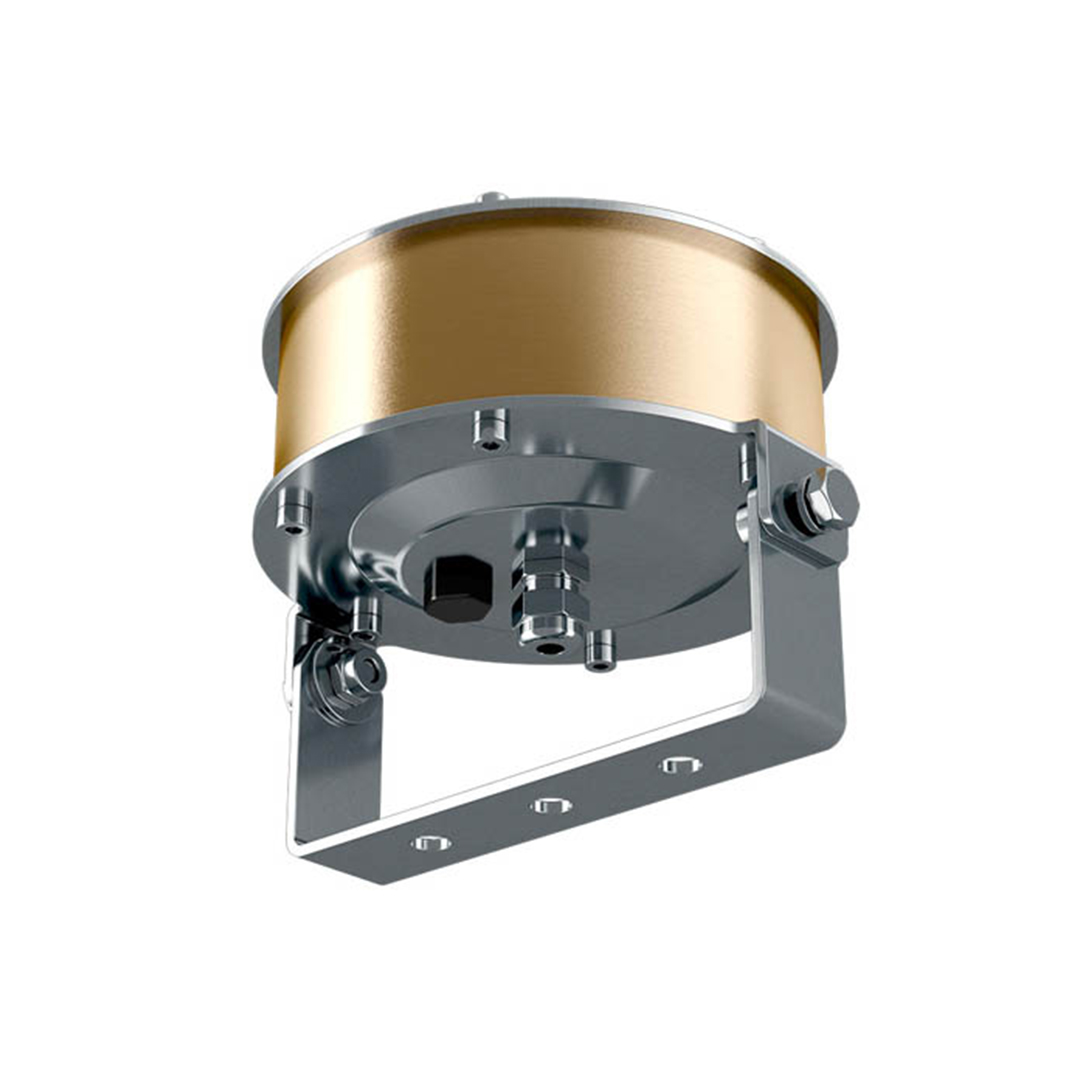

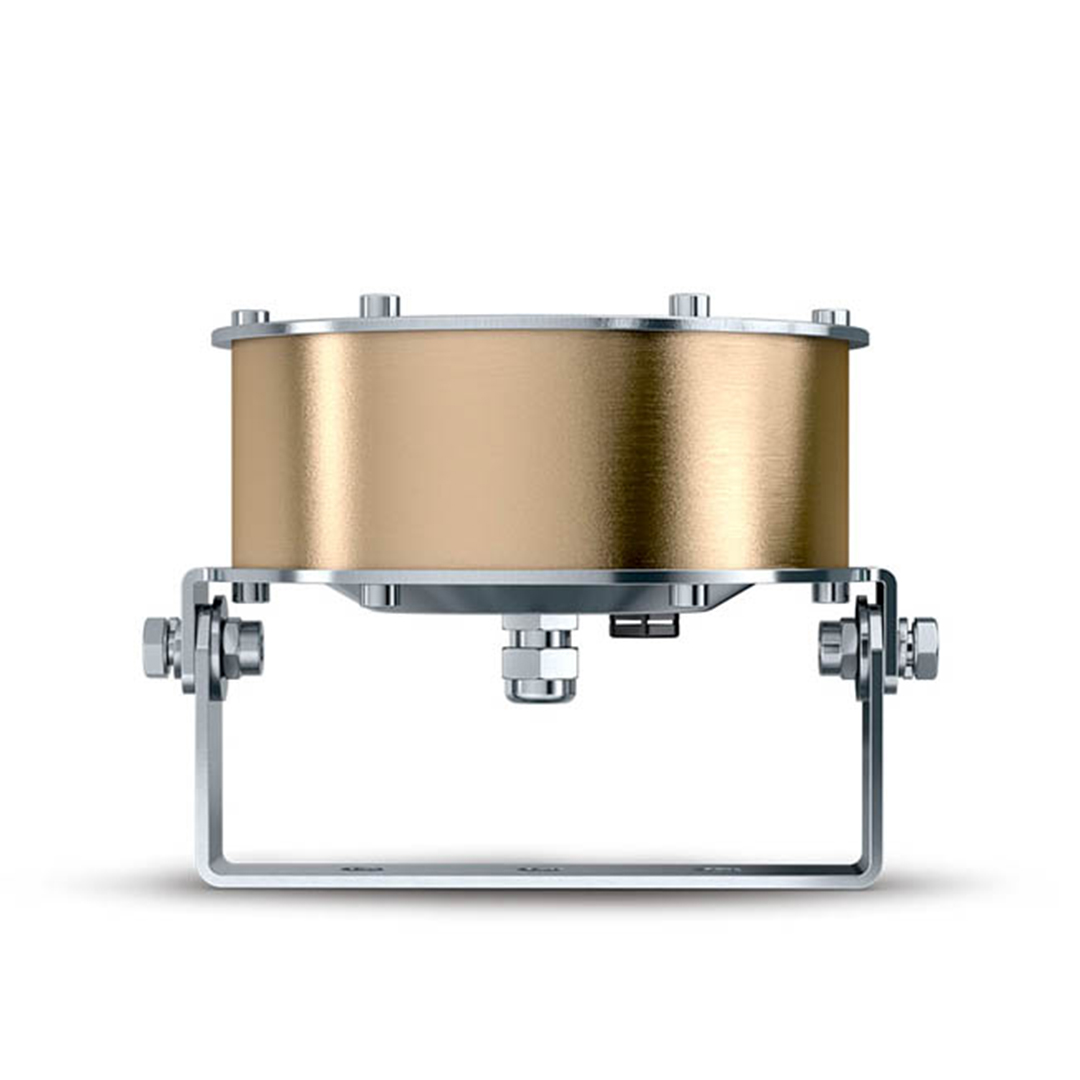

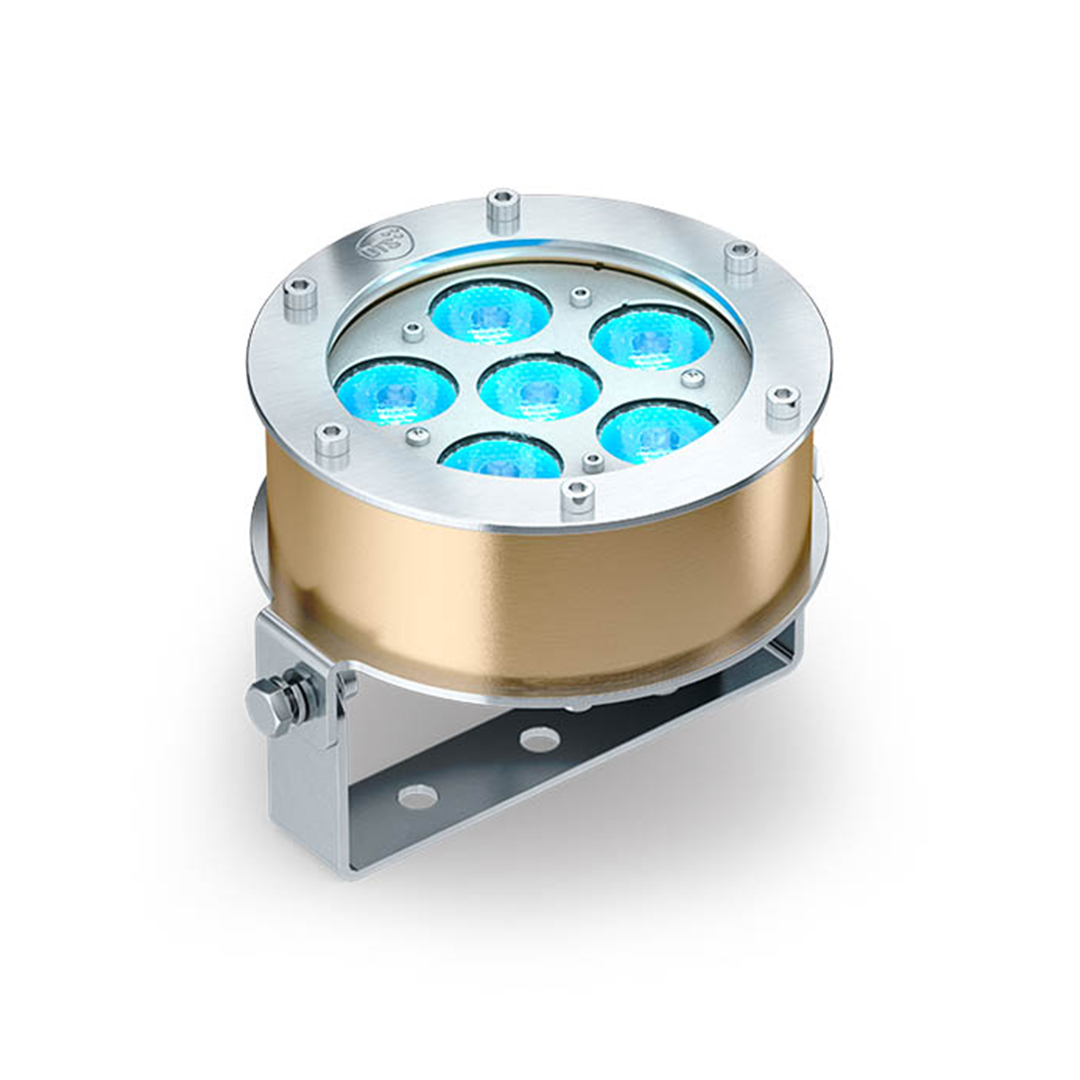

DIVE 6 FC is an IP68 underwater projector with 6 Full Color LEDs. The unit is fitted with an adjustable bracket or a round flange for recessed installation and it features a reinforced structure that makes it reliable for long-term use. The unit is available with different optics and it is suitable for medium underwater applications or for use outside water. The unit has been developed to work where safety regulations request 24 V DC max voltage, such as swimming pools or public areas. The unit is powered by DRIVENET 1664 or DRIVENET 832 24 V DC power supplies. Refer to local norms in case of underwater installation.

Specifications

OUTPUT

  • 6 Full Full Colour RGBW LEDs
  • Lumens: 3,320 @ 700mA
  • LED lifespan: 50,000 hours (70% lumen output)

OPTICAL GROUP

3 lenses sets available: 10° / 22° / 40°

COLOR GENERATION

  • 16 million colors
  • Wide palette of pure uniform whites with variable linear color temperature (2700K – 8000K)

POWER SUPPLY

  • External PSU:

_ DRIVENET 28C DIN @24Vdc

_ DRIVENET 832 24Vdc

(Full range 100-240Vac 50-60Hz)

_ DRIVENET 1664 24Vdc

(Full range 100-240Vac 50-60Hz)

  • Power consumption: 60 W max

CONNECTIONS

End-stripped 8-pole cable (5 m)

OPERATING TEMPERATURE

-20° / 40° C

PHYSICAL

  • IP68 (max immersion depth: 2 m)
  • IK protection degree: IK09 (only R version)
  • Housing:

Bronze / 316 Stainless steel

  • Weight: 3.9 Kg (8.6 lbs)

SHIPPING

  • Packaging: Carton box
  • Box size (LxHxD): 280 x 180 x 270 mm

(11’’ x 7.1” x 10.6”)

  • Weight: 4.4 Kg (9.7 lbs)

Additional information

Brand

DTS Lighting

Brand Series

Dive Series

Categories

Lighting

Sub-Categories

Architectural Lighting, Underwater Fixtures

Features

IP-Rated
