HELIOS is our line of recessed projectors that, thanks the round flange perfectly integrated into the flooring, is particularly suitable for installations on traditional or industrial surfaces. Available in full-colour or in a white LED version, with built-in or external control drivers, Helios is the ideal product to create the best outdoor atmosphere and to highlight architectural elements with wall washing lighting.

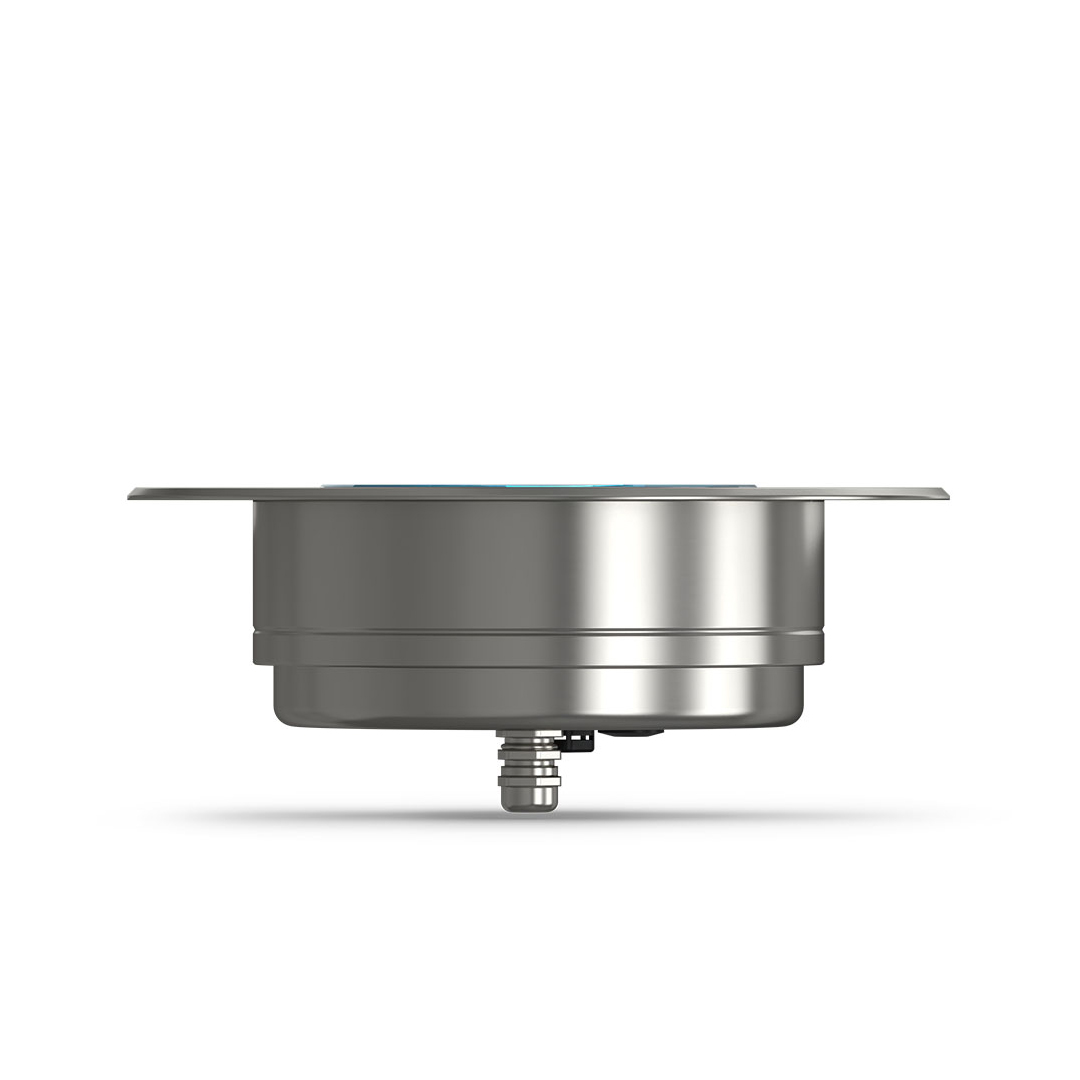

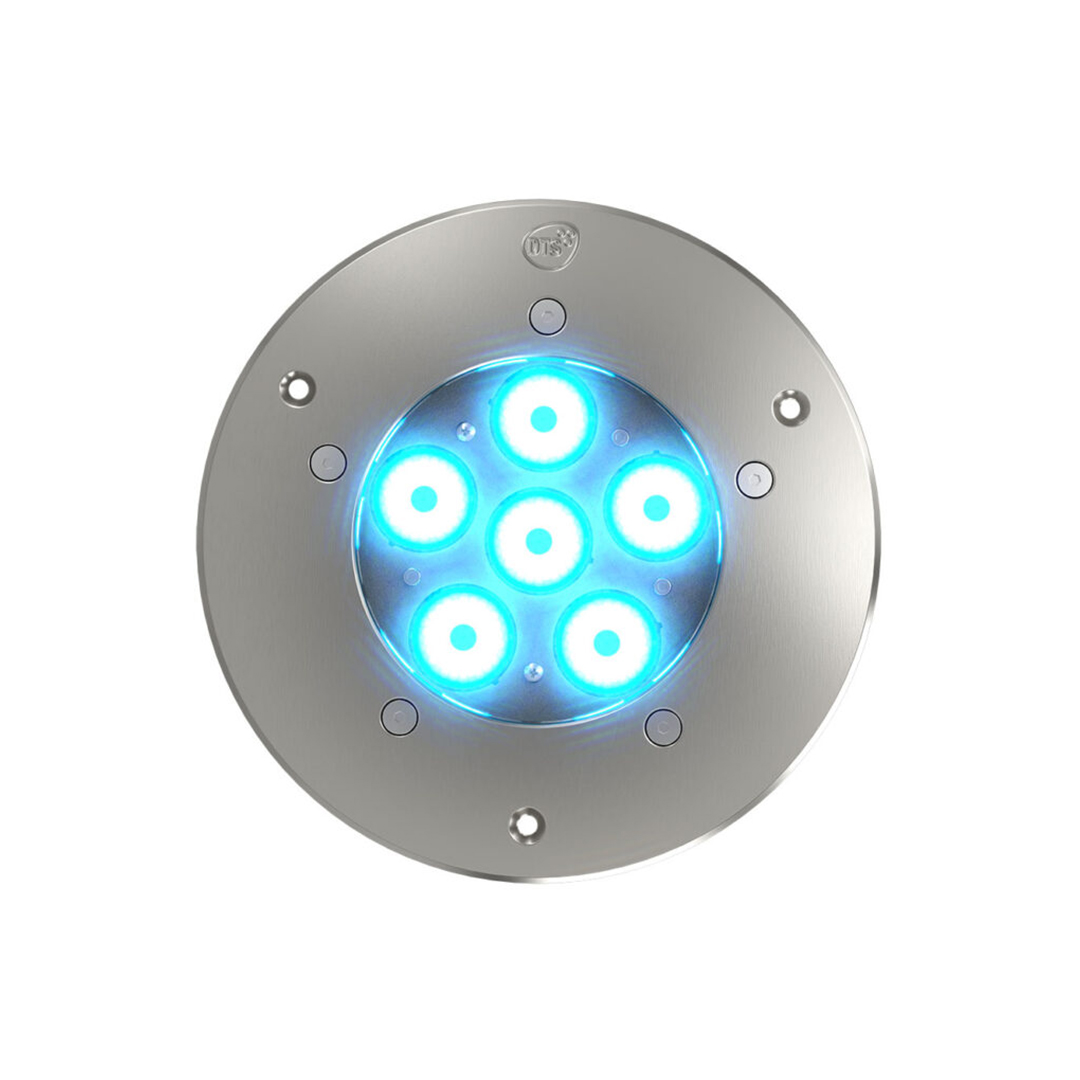

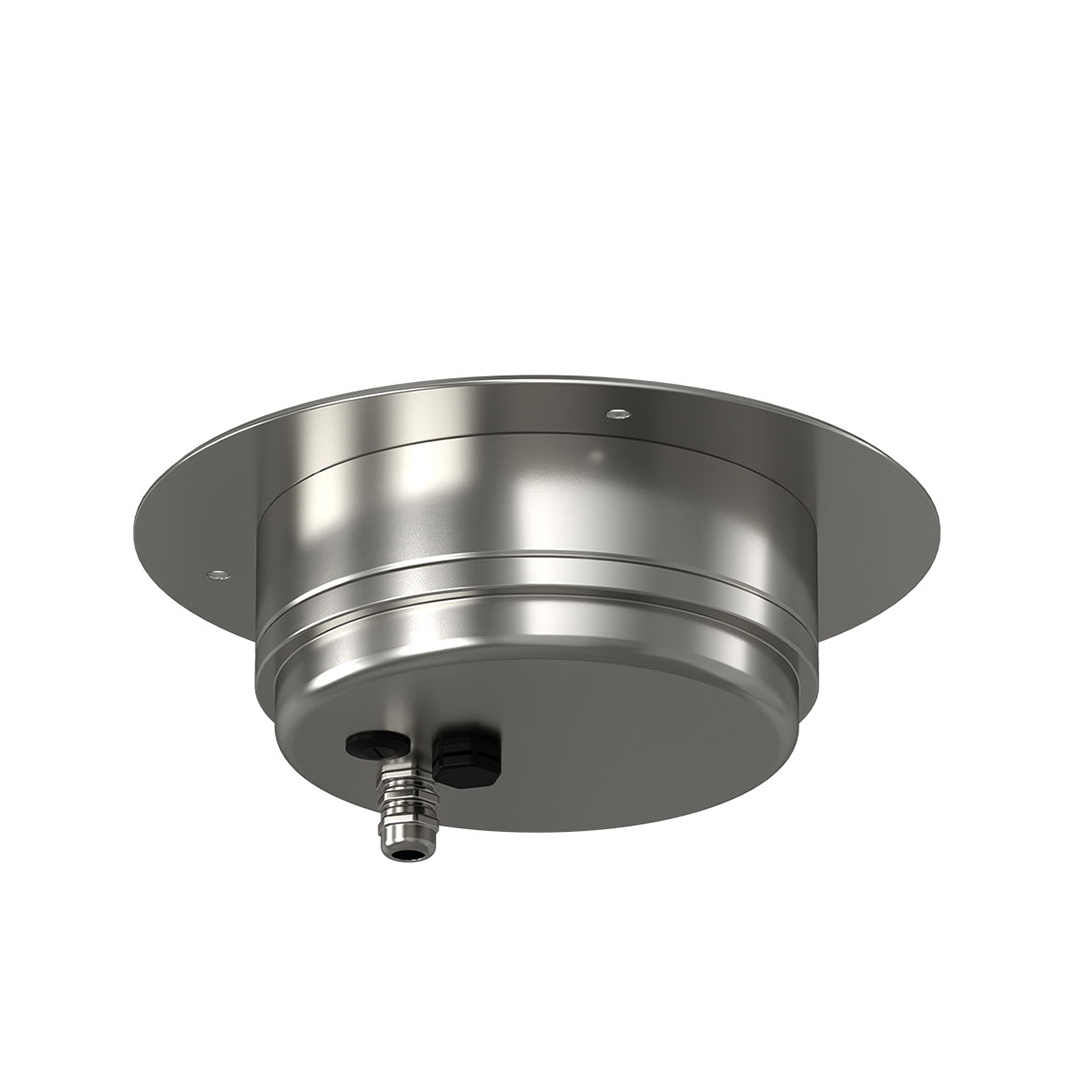

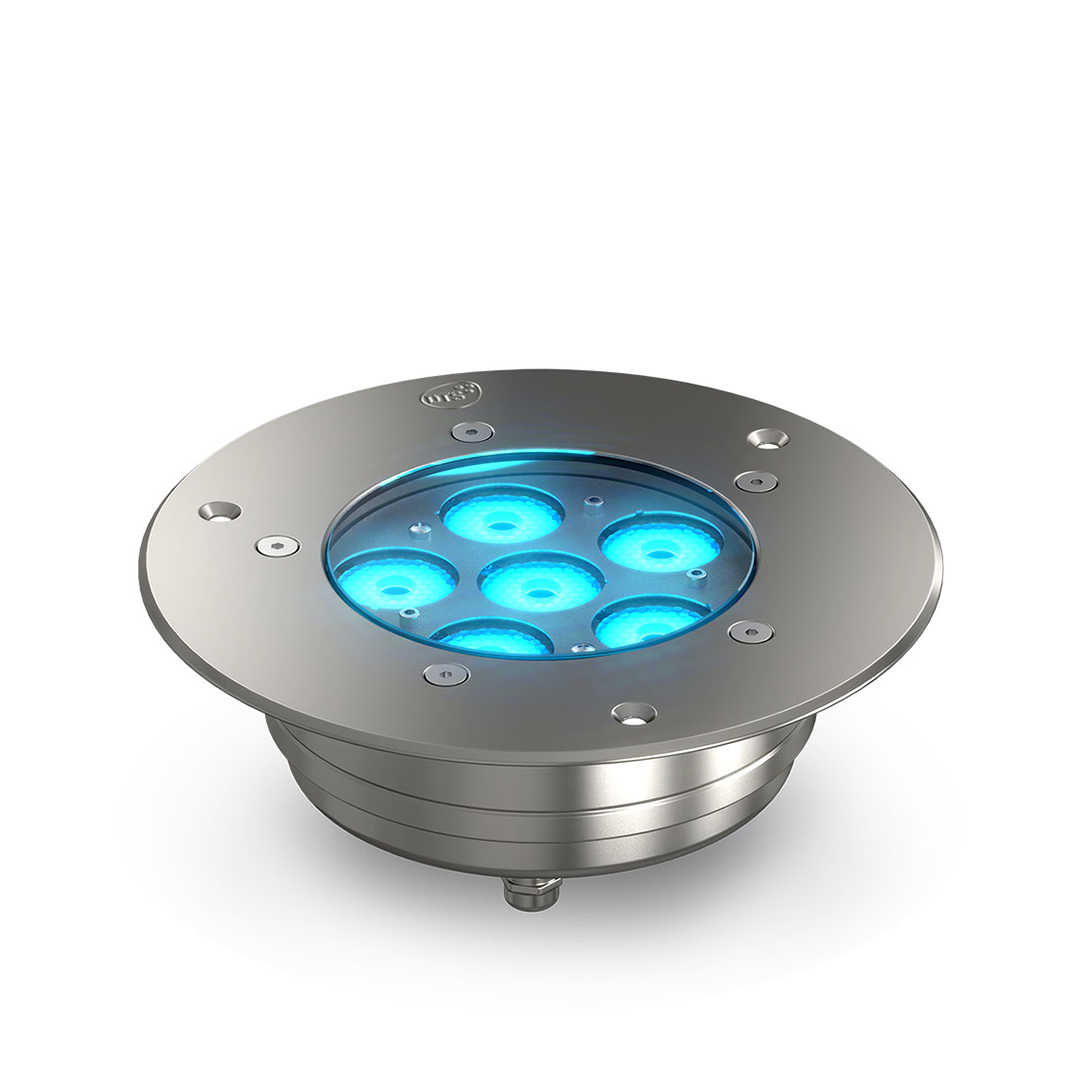

Helios 6 is a lighting projector designed to meet the main required for architainment fix installation. Thanks to the reinforced IP65-rated structure, made in aluminum and steel, and the remote power and control Helios 6 is perfect for recessed installation in outdoor environment. This projector features 6 4-colour LED with a 60 W max consumption and guarantee a high-quality colour mixing.

Add to Wishlist
Compare
Categories: , , ,

Description

Specifications

 Output

6 x 4-colors LEDS

• Lumens output (RGBW): 2,660 @ 700 mA

• LED lifespan: 50,000 hours (70% lumen output)

Power supply

• External CC PSU Led driver 700mA max per channel

• Max distance between Drivenet PSU and fixture 100 m

• Consumption: max 60 W @ 700mA

Optical Group

• Medium flood 22°
• Wide flood 40°



Connections

• 90 cm cable with M12 male connector

Physical

• Housing: Body in aluminium and flange in Stainless Steel

• Weight: 2 Kg (4.4 lbs)

Accessories

• 03.LA.131.IP56 • HUB-IP56 Screw terminals 1 IN / 3 OUT

• 03.LA.131 • HUB-IP20 Screw terminals 1 IN / 3 OUT

• Outdoor extension cable M12 Female + end stripped 8-pole
02K001157.10 • length 10 mt – 33 ft
02K001157.30 • length 30 mt – 98 ft
02K001157.50 • length 50 mt – 164 ft
02K001157.100 • length 100 mt – 328 ft

• 03.LA.035.50 • Outdoor extension cable with M12 M/F 8 pins – cable Ø 6 mm – 50 m length (164 ft) – (more lengths availables)

• 03.LA.037 • Y-BOX IP65 M12

• 03.LA.190 • Outercase IP20 rated
