Description

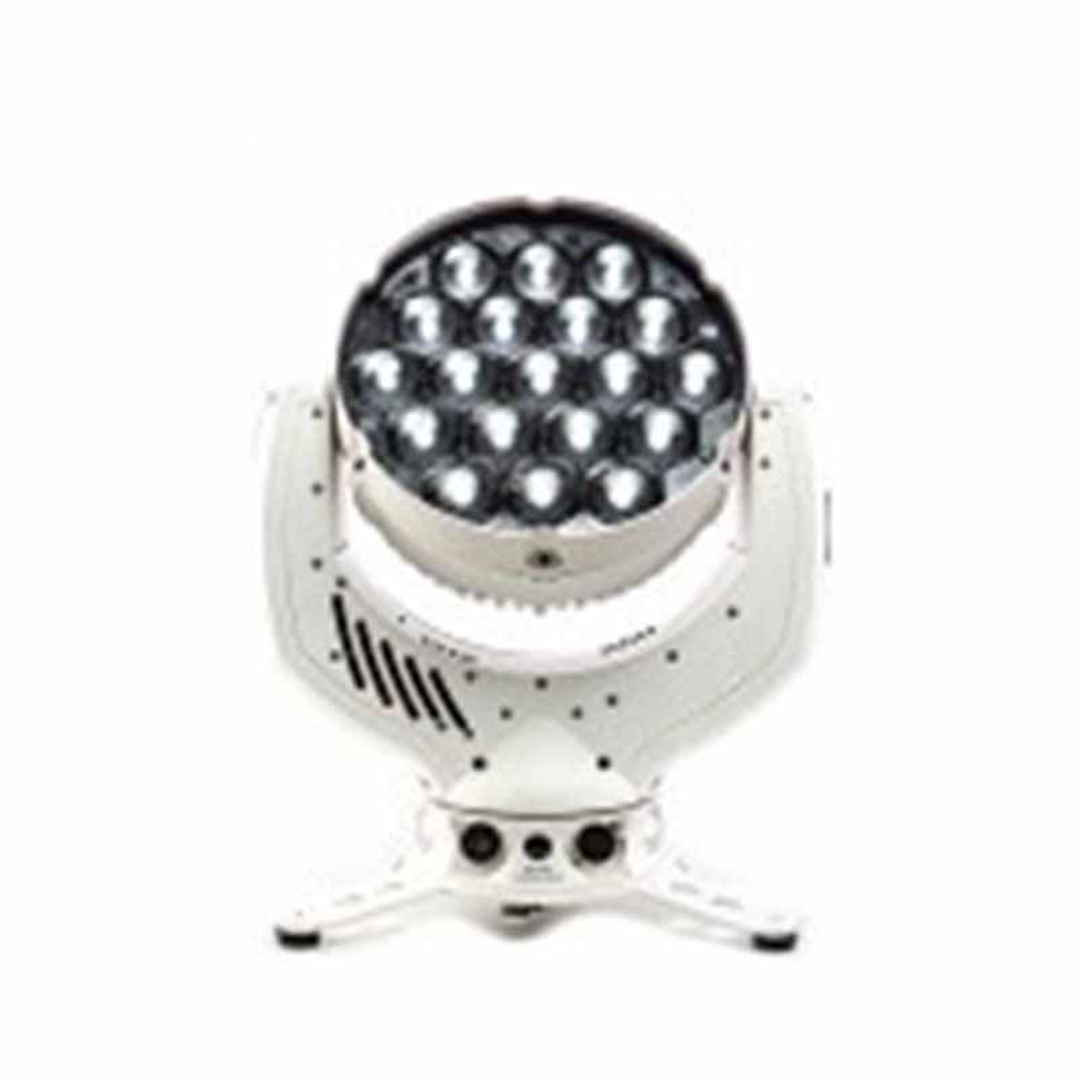

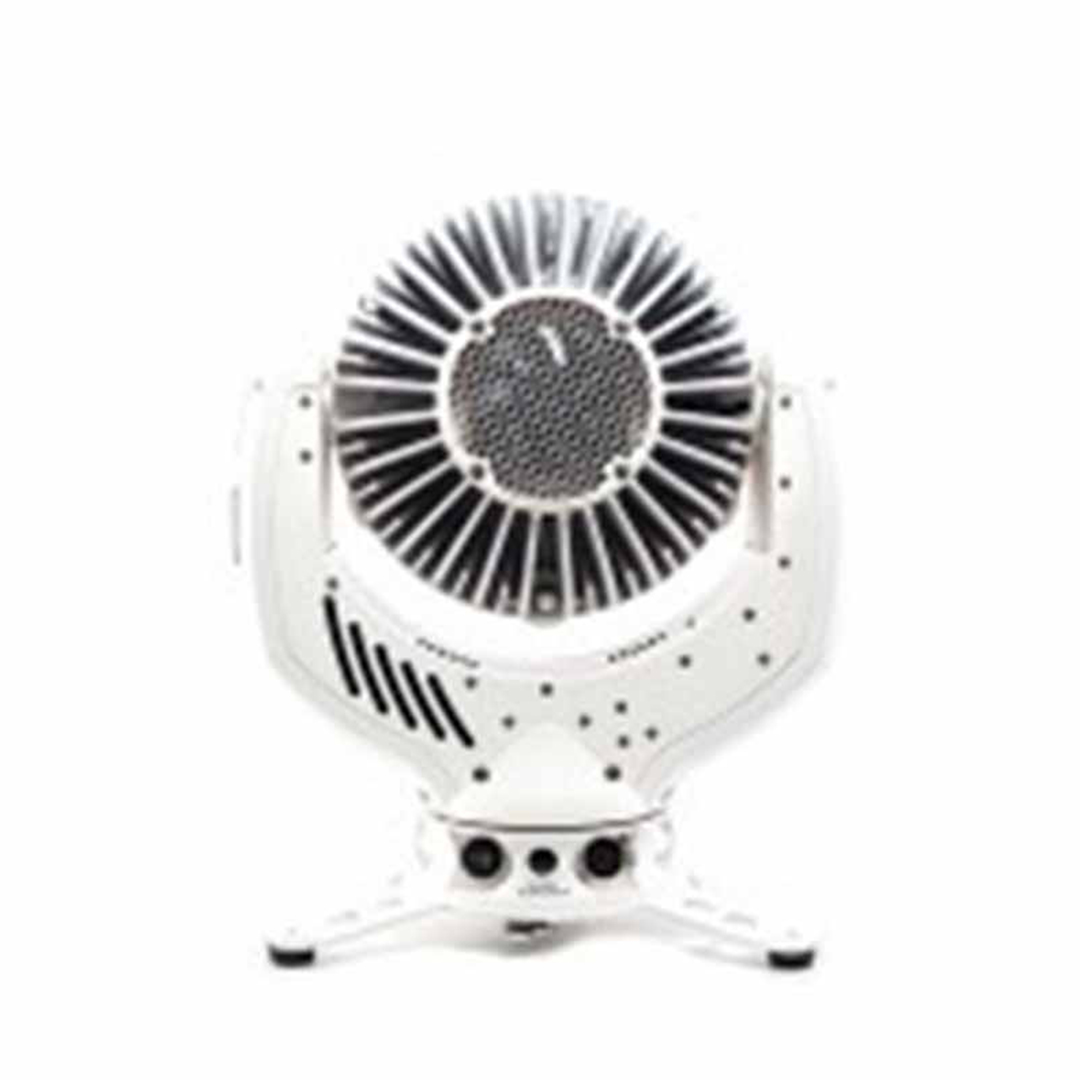

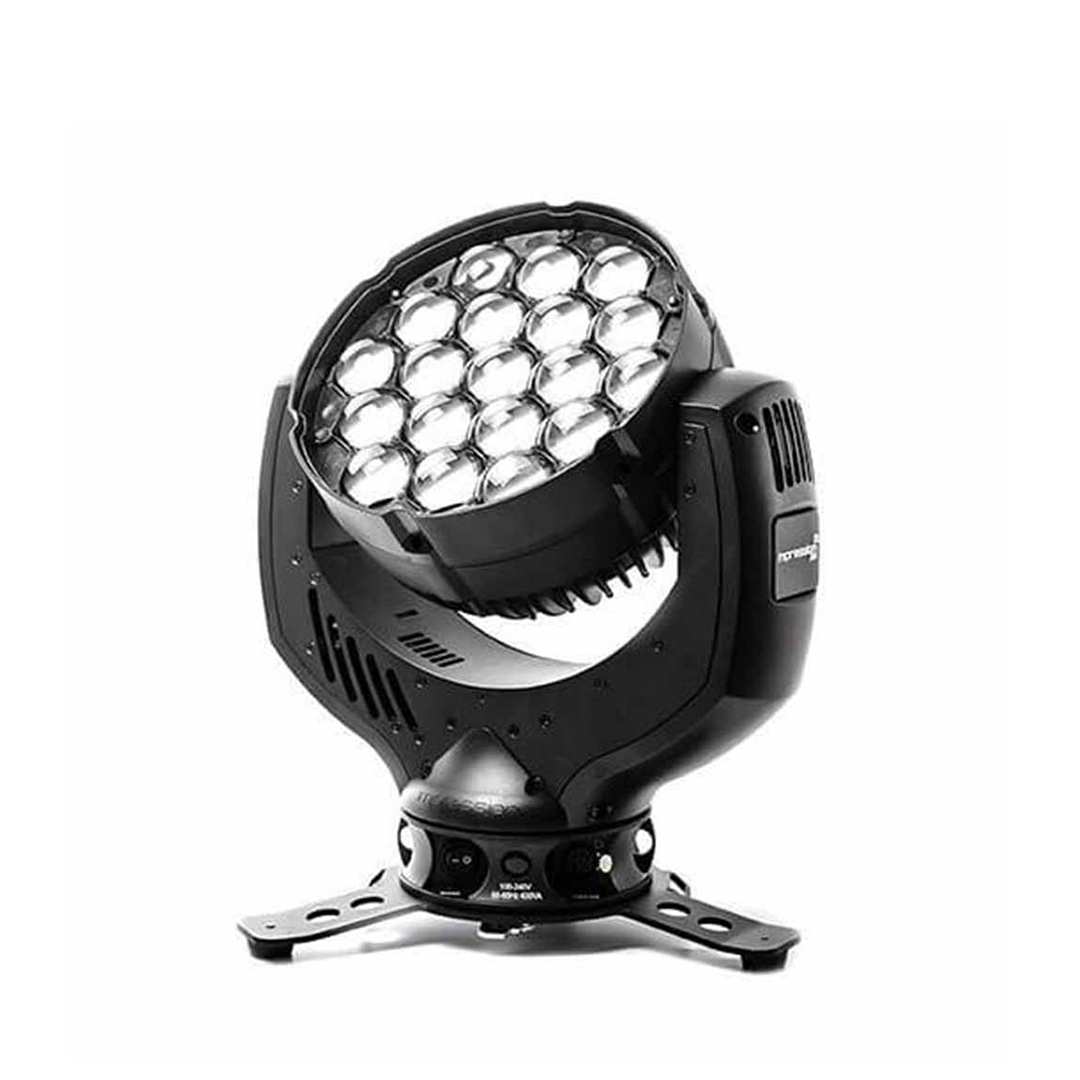

The impression X4 features 19 high power RGBW LEDs, each rated at 15W with a 7 ° – 50 ° zoom range. The housing design is based on the legendary, and award winning, impression 90 and 120RZ fixtures including their baseless design and small footprint.
The brand new optical system gives a well defined beam, complete with hard edge in the lower zoom range whilst remaining absolutely homogenous and soft edged at wider angles.
RGBW color mixing, variable CTO and a finely tuned dimming curve are standard in the impression X4.
The impression X4 features individually controllable LEDs allowing a range of different patterns to be created and displayed on the front lenses, including arrows, numbers, letters and much more, either from stock patterns or through user created patterns.
Light Source
19 x 15 Watt RGBW LED
Zoom
7 to 50 degrees
Colors
RGBW Color Mixing
TECHNICAL SPECIFICATIONS
Light Source
- 19 Osram High Power RGBW LEDs
- Average service life: 50.000 hours
Optical system
- Motorized zoom system with 7° to 50° beam angle
Movement
- 8 or 16 Bit resolution selectable
- Position feedback
- Maximum speed: 660° Pan in 2 secs., 260° Tilt in 1 sec.
- High precision 3 Phase stepping motor control
Shutter / Dimmer
- Continuous dimmer 0-100%
- Variable strobe effect from 1 – 10 Hz.
- Random strobe effect
- Pulse effects
Control
- DMX-512 protocol
- Back-lit graphic-LCD menu with 4 illuminated buttons
- Very quiet, temperature controlled ventilation
- Over-temperature protection
- Colour calibration feature
- Internal colour-presets
- Internal macro effects
Power Supply
- Power consumption: 350 VA (Watt)
- Power input: Auto sensing 100-240 V AC, 50-60Hz
- Fuse protection: Micro-fuse 5x20mm, T 5A
Connectors
- DMX: XLR 5 pin
- Mains voltage: Neutrik Powercon
Operating Conditions
- Maximum ambient temperature: 113°F / 45°C
Mounting Options
- Upright: Floor stand (included) with brackets for ratchet strap
- M10 socket for direct attachment of half coupler or other clamp
- Optional omega bracket attachment
- 2 attachment points for safety wire
Shipping
- Cardboard box
- 4 way tour pack (complete with half couplers) in flight case
- 6 way tour pack (complete with half couplers) in flight case
Housing Colours
- Standard colours are black, silver & white
- For other colours please contact sales department
Dimensions
- Length x width x height (head vertical): 9.4″ x 13.4″ x 15.2″ (242mm x 340mm x 385mm)
Net Weight
- 16.5 lbs (7.5 kg)
