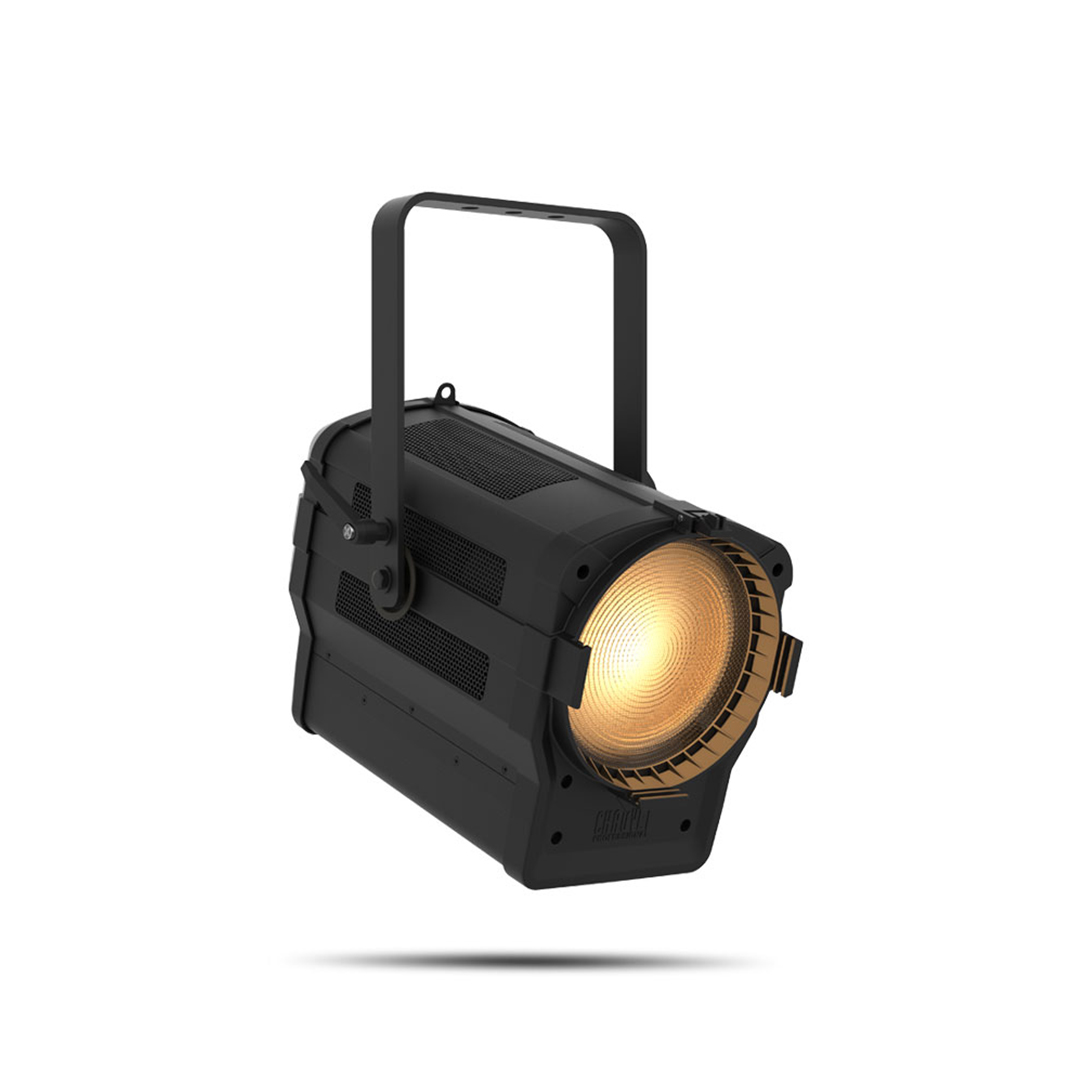

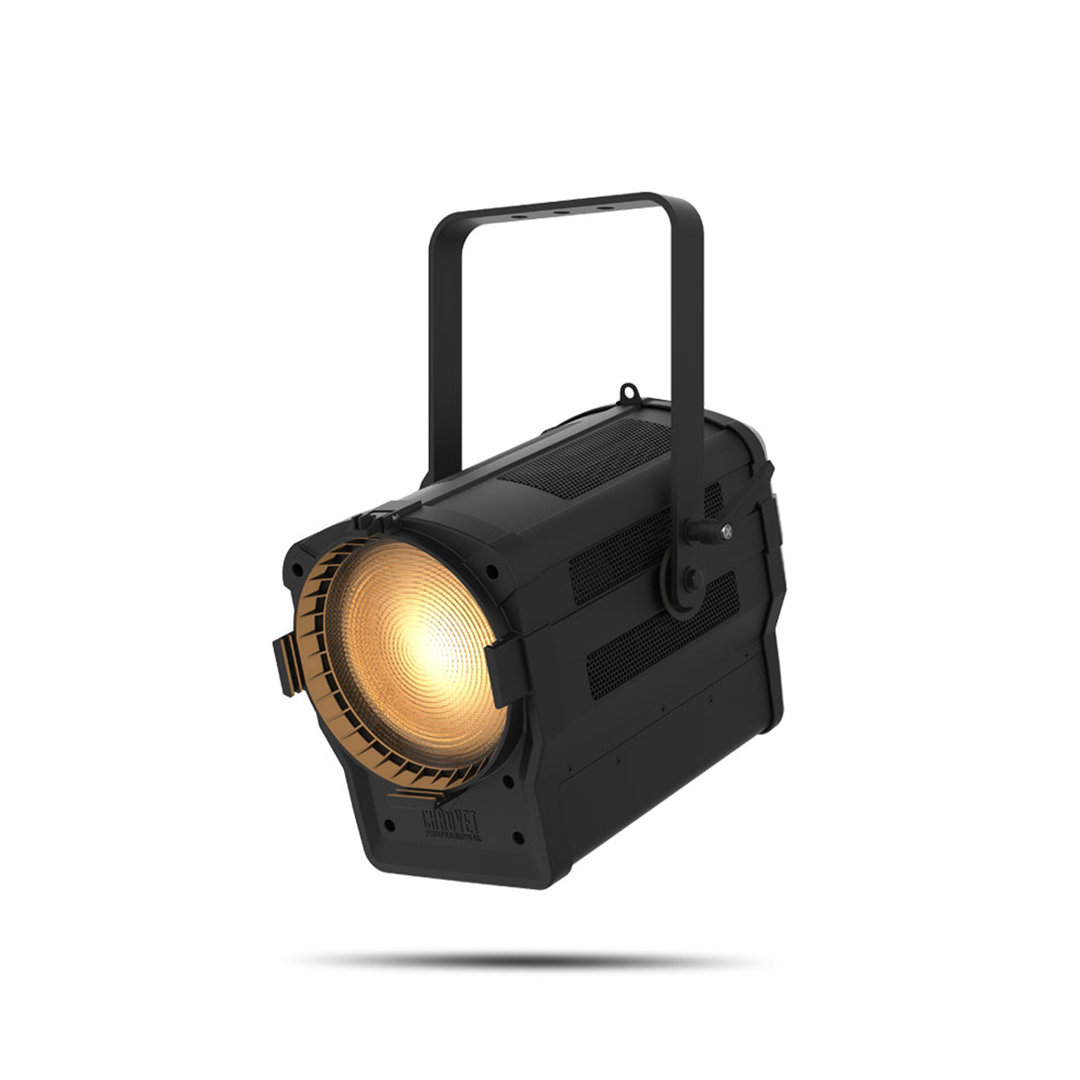

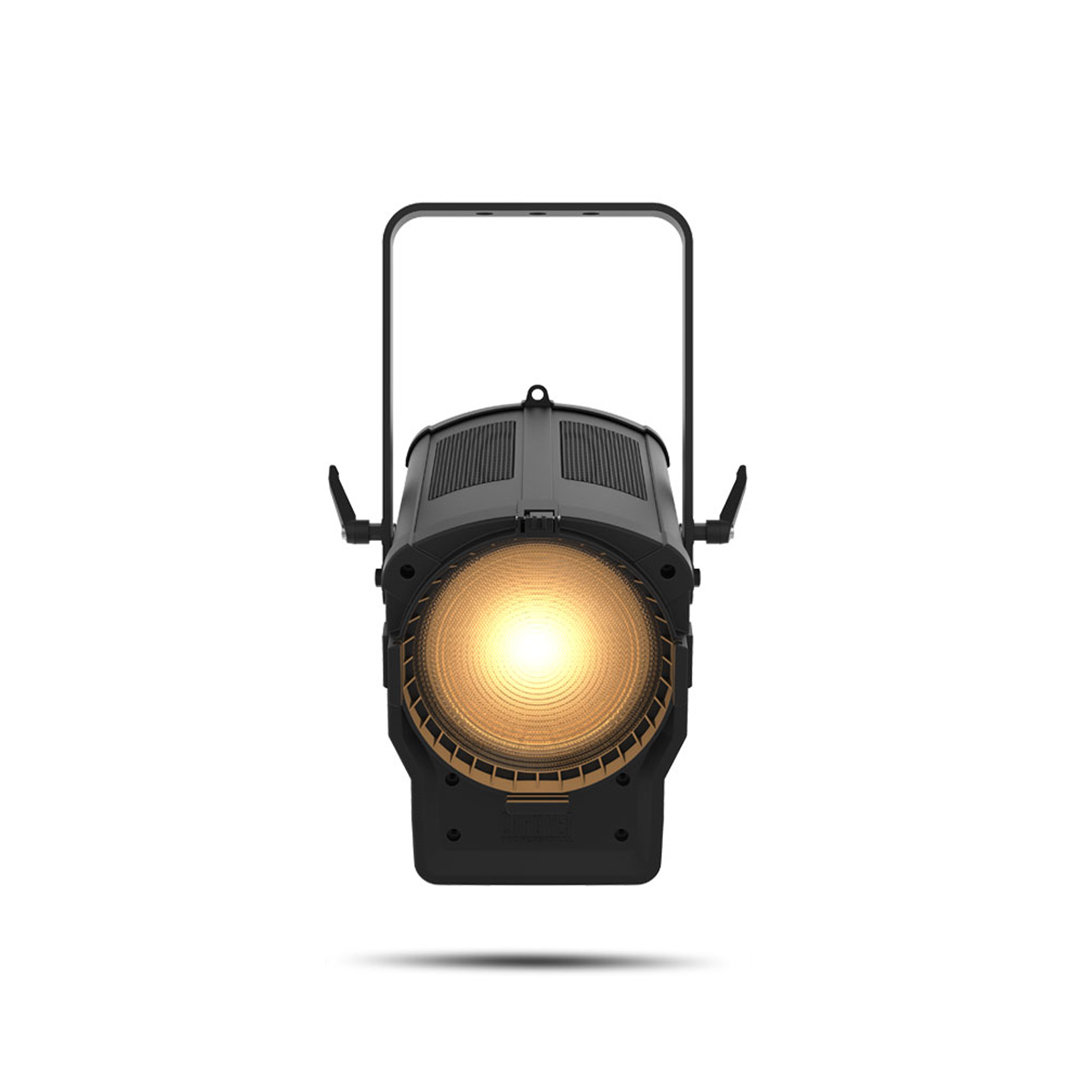

Ovation F-265WW

Ovation F-265WW is a high-power Fresnel-style fixture utilizing our efficient warm white LED system to project a bright, beautifully soft, high CRI (95+) field of light ideal for theaters and television studios. A motorized zoom with a 27°- 68° field angle and the light output can be controlled via DMX, on-board dials, RDM, adjustable PWM…

SKU: OvationF265WW

Description

AT A GLANCE

  • Warm white fresnel with output comparable to an 8”, 2,000 W Fresnel
  • Soft and even field of light
  • 16-bit dimming resolution for smooth fades
  • Virtually silent operation for use in any situation
  • Motorized zoom range between 16° to 68°, manually or via DMX

TECHNICAL SPECIFICATIONS

OPTICAL

  • Light Source: 1 LED (WW) 230 W, (3.6 A), 50,000 hours life expectancy
  • Color Temperature (at full): 3142 K
  • CRI: 96
  • Beam Angle: 16° to 46°
  • Field Angle: 27° to 68°
  • Zoom Range: 16° to 68°
  • Lumens (27°): 9,283
  • Lumens (68°): 12,802
  • Illuminance (27°): 4,010 lux @ 5 m
  • Illuminance (68°): 1,162 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 30 Hz
  • Dim Modes: 4

CONSTRUCTION / PHYSICAL

  • Dimensions: 15.11 x 12.59 x 17.71 in (384 x 320 x 450 mm)
  • Weight: 17.2 lb (7.9 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

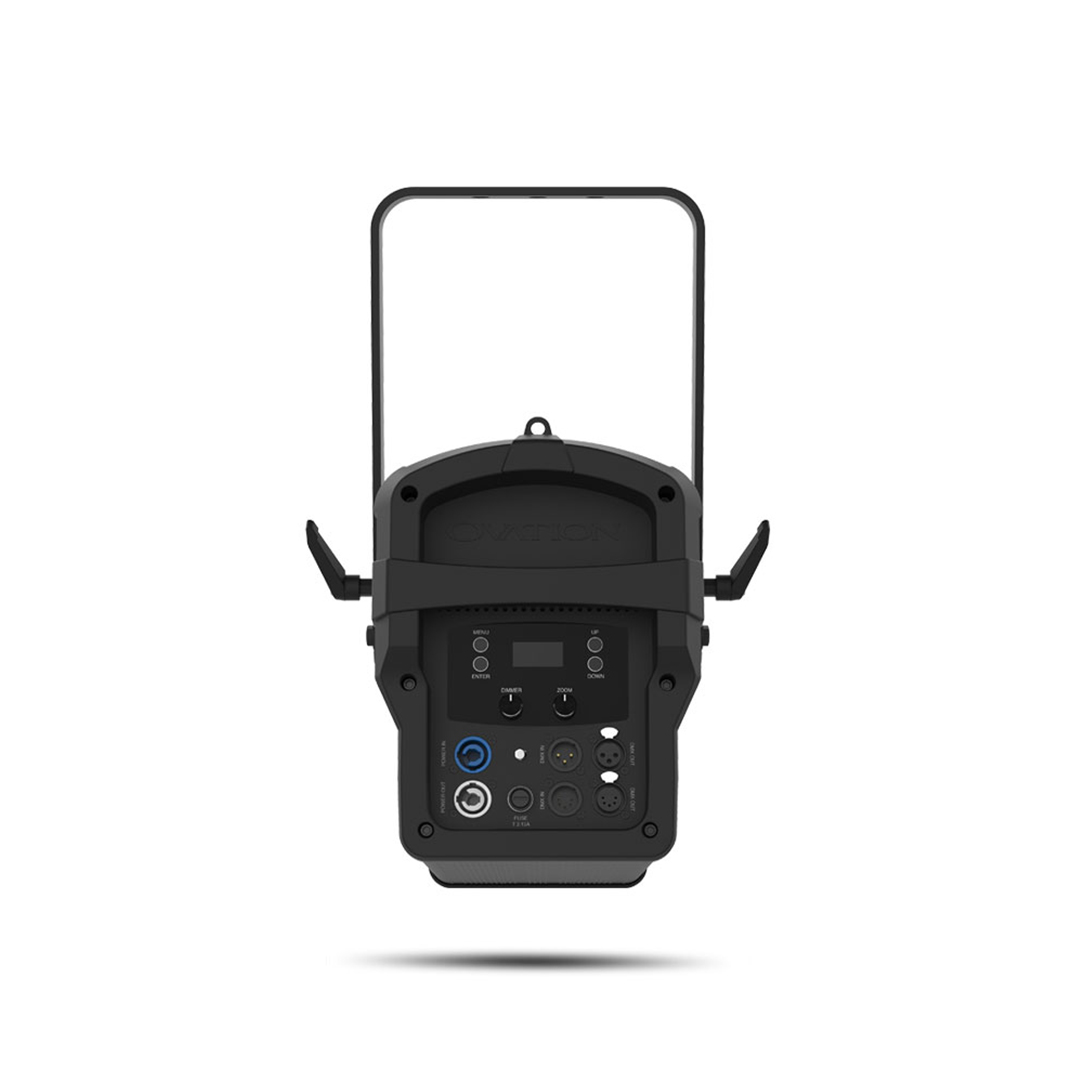

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Protocol(s): DMX, RDM
  • DMX Channels: 1, 2, 2 or 5
  • Modes/Personalities: 4 personalities (1, 2, 2, 5)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
  • Power and Current: 222 W, 1.84 A @ 120 V, 60 Hz
  • Power and Current: 230 W, 1.10 A @ 208 V, 60 Hz
  • Power and Current: 231 W, 1.01 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT’S INCLUDED

  • Ovation F-265WW
  • Neutrik powerCON power cord
  • Gel Frame

OPTIONAL ACCESSORIES

  • Power Connection: Edison (Local) plug to Seetronic Powercon IP65
  • Power Input: Seetronic Powercon IP65
  • Power Output: Seetronic Powercon IP65
  • Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: Art-Net, sACN, DMX, RDM, Klingnet
  • DMX Channels: 20ch, 53ch, 101ch, 155ch, 179ch
  • Art-Net Channels: 20ch, 53ch, 101ch, 155ch, 179ch
  • sACN Channels: 20ch, 53ch, 101ch, 155ch, 179ch
  • Modes/Personalities: 5 personalities( 20ch, 53ch, 101ch, 155ch, 179ch)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 1 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V
  • Power and Current: 790 W, 6.70 A @ 120 V, 60 Hz
  • Power and Current: 772 W, 3.80 A @ 208 V, 60 Hz
  • Power and Current: 768 W, 3.44 A @ 230 V, 50 Hz
  • Fuse: F12 A, 250 V

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, UKCA, FCC
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

WHAT’S INCLUDED

  • COLORADO PXL Curve 12
  • (2) Omega brackets
  • Seetronic Powercon IP65 power cord

OPTIONAL ACCESSORIES

  • Professional Clamps
  • Neutrik TRUE1 power linking cables
  • 5-pin DMX Cables
  • Ethercon Cables

Downloads

Additional information

Brand

Chauvet Professional

Dimensions

38.4 x 32 x 45 cm (7.9kg)

Brand Series

Ovation

Categories

Lighting

Features

Sub-Categories

Fresnels
