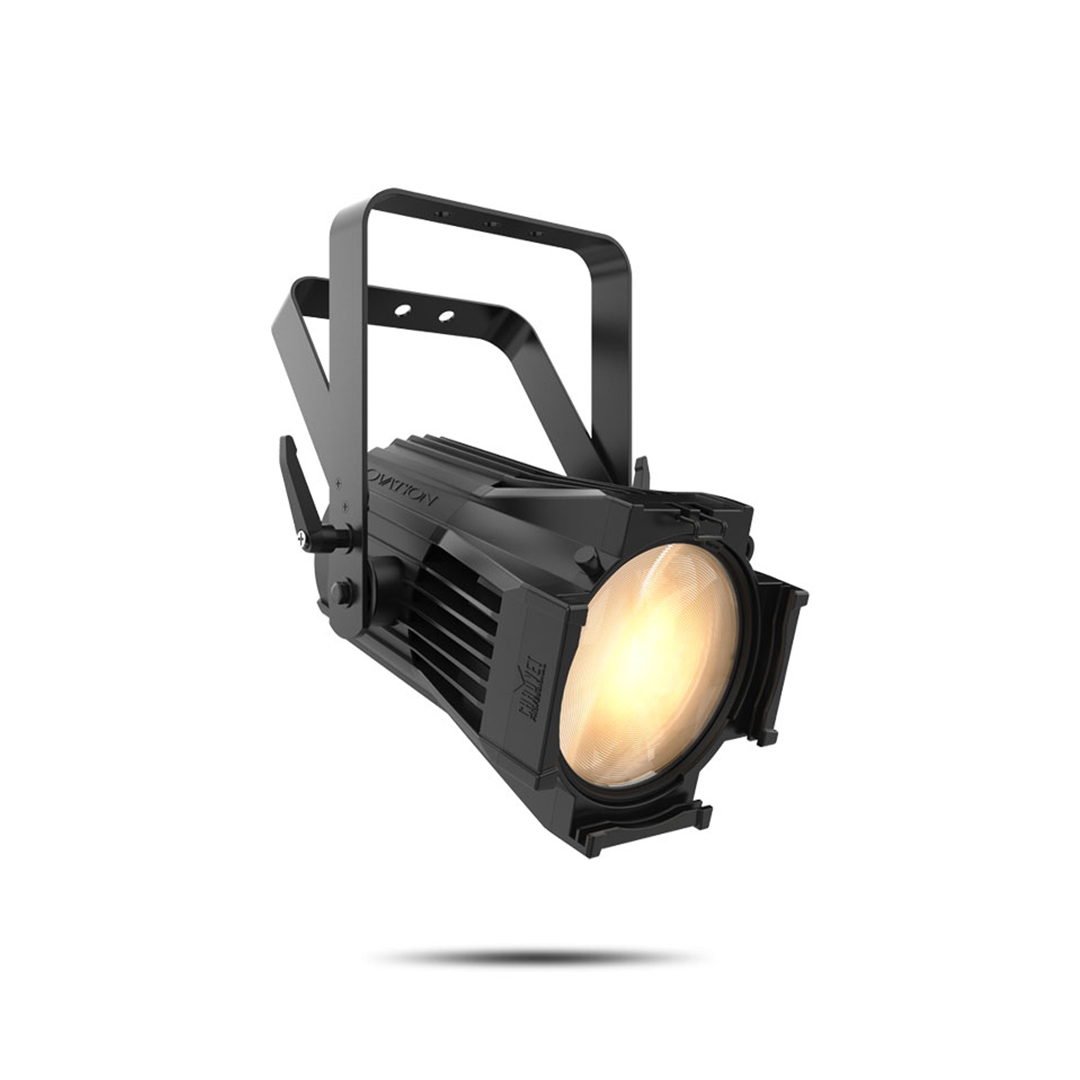

Ovation P-56WW

Ovation P-56WW is a bright, compact, and virtually silent par with exceptionally high CRI that is ideal for theatrical and studio applications. The sleek, modern-style par produces a homogenized, single-source, flat and even field of light with the same efficient warm white LED system found in the award-winning Ovation E-260WW ellipsoidal. Interchangeable lens plates are…

SKU: OVATIONP56WW

Description

AT A GLANCE

  • Warm white PAR style fixture with output comparable to a 1,000 W PAR 64 lamp
  • 16-bit dimming resolution for smooth fades
  • Compact design with homogenous single source of light
  • Flat, even field of light
  • Quiet operation for use in any situation
  • Interchange lens plates included for narrow, medium and wide beam angles

TECHNICAL SPECIFICATIONS

OPTICAL

  • Light Source: 1 LEDs (WW) 230 W, (3.2 A), 3228 K, 50,000 hours life expectancy
  • Color Temperature (at full): 3228 K
  • CRI: 97.9
  • Beam Angle (Narrow lens): 11.8°
  • Beam Angle (Medium lens): 23.9°
  • Beam Angle (Wide lens): 70.9°
  • Beam Angle (Wide lens w/ egg crate) : 37°
  • Field Angle (Narrow lens): 26.6°
  • Field Angle (Medium lens): 40°
  • Field Angle (Wide lens): 106°
  • Field Angle (Wide lens w/egg crate): 68°
  • Lumens (w/Narrow lens): 10,326
  • Lumens (w/Medium lens): 10,728
  • Lumens (w/Wide lens): 10,687
  • Illuminance (w/Narrow Lens): 5,468 lux @ 5 m
  • Illuminance (w/Medium Lens): 2,264 lux @ 5 m
  • Illuminance (w/Wide Lens): 363 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 29 Hz
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
  • Weight: 11.6 lb (5.3 kg)
  • Exterior Color: Black
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
  • Light Source: 12LEDs (RGBW) 45 W, (2.96 A) 50,000 hours life expectancy
  • Color Temperature (range): 2700 to 8000 K
  • Beam Angle Spot: 5.7°
  • Beam Angle Flood: 26.8°
  • Beam Angle 50% Zoom: 13.8°
  • Field Angle Spot: 9°
  • Field Angle Flood: 33.9°
  • Field Angle 50% Zoom: 19.2°
  • Cutoff Angle Spot: 9.9°
  • Cutoff Angle Flood: 36.3°
  • Cutoff Angle 50% Zoom: 21.6°
  • Zoom Range: 5.7° to 36.3°
  • Lumens: 5,807 lm
  • Illuminance (Spot) : 38,727 lux @ 5 m
  • Illuminance (Flood) : 1,120 lux @ 5 m
  • Selectable PWM: 600, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz

DYNAMIC EFFECTS

  • Tilt: 200°
  • Tilt Range: 60°, 180°, 200°
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 20Hz
  • Standalone Color Mixing: No
  • Color Temperature Presets: Yes
  • Dim Modes: 5
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 39.49 x 6.65 x 12.76 in (1,003 x 169 x 324 mm)
  • Weight: 76 lb (34.5 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast, High-Impact flame-retardant polymer, Steel

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 2, 3 or 6
  • Modes/Personalities: 4 personalities (1, 2, 3, 6)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 5 units @ 100 V; 7 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V; 15 units @ 240 V
  • Power and Current: 210 W, 2.278 A @ 100 V, 60 Hz
  • Power and Current: 205 W, 1.806 A @ 120 V, 60 Hz
  • Power and Current: 197 W, 1.023 A @ 208 V, 60 Hz
  • Power and Current: 195 W, 0.916 A @ 230 V, 50 Hz
  • Power and Current: 194 W, 0.886 A @ 240 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT’S INCLUDED

  • Ovation P-56WW
  • Neutrik powerCON power cord
  • Gel Frame holder (7.5 in/191 mm accessories)
  • Wide, medium and narrow lenses

OPTIONAL ACCESSORIES

  • Power Connection: Edison (Local) plug to Seetronic Powercon IP65
  • Power Input: Seetronic Powercon IP65
  • Power Output: Seetronic Powercon IP65
  • Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: Art-Net, sACN, DMX, RDM, Klingnet
  • DMX Channels: 20ch, 53ch, 101ch, 155ch, 179ch
  • Art-Net Channels: 20ch, 53ch, 101ch, 155ch, 179ch
  • sACN Channels: 20ch, 53ch, 101ch, 155ch, 179ch
  • Modes/Personalities: 5 personalities( 20ch, 53ch, 101ch, 155ch, 179ch)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 1 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V
  • Power and Current: 790 W, 6.70 A @ 120 V, 60 Hz
  • Power and Current: 772 W, 3.80 A @ 208 V, 60 Hz
  • Power and Current: 768 W, 3.44 A @ 230 V, 50 Hz
  • Fuse: F12 A, 250 V

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, UKCA, FCC
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

WHAT’S INCLUDED

  • COLORADO PXL Curve 12
  • (2) Omega brackets
  • Seetronic Powercon IP65 power cord

OPTIONAL ACCESSORIES

  • Professional Clamps
  • Neutrik TRUE1 power linking cables
  • 5-pin DMX Cables
  • Ethercon Cables
