OPTICAL

• Light Source: 1 LEDs (CW) 300 W, (8.7 amps), 8831 K, 50,000 hours life expectancy
• Color Temperature (at full): 8847 K
• Front lens diameter: 100 mm
• CRI: 71.7
• Beam Angle: 16°
• Field Angle: 18°
• Cutoff Angle: 18.4°
• Lumens – Source: 23,000
• Lumens – Output: 14,789
• Illuminance (total): 9,344 lux @ 5 m
• Selectable LED Power output: 50-100
• Selectable PWM: 600 Hz, 1,200 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

• Pan and Tilt: 540°/250°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/250°, 180°, 90° tilt
• Colors (1): 7 + white, split colors, continuous scroll at variable speeds
• Colors (2): 7 + white, split colors, continuous scroll at variable speeds
• Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): Positions 1, 2, 3, 4, and 7 (metal); size: 28.8 mm (outside), 23.8 mm (image), 0.5 mm (max. thickness)
• Gobo Size: Gobo Wheel 1 (rotating): Positions 5 and 6 (glass); size: 27 mm (outside), 24 mm (image), 3 mm (max. thickness)
• Framing Shutters: No
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Prism: 3 Facets, motorized, rotating
• Strobe Rate: 0 to 22 Hz
• Standalone Color Mixing: No
• Color Temperature Presets: No
• Move-in-Black: Yes

CONSTRUCTION / PHYSICAL

• Dimensions (single unit): 16.1 x 13.5 x 19.25 in (409 x 343 x 489 mm)
• Weight (single unit): 47.8 lb (21.7 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

• Light Source: 12LEDs (RGBW) 45 W, (2.96 A) 50,000 hours life expectancy
• Color Temperature (range): 2700 to 8000 K
• Beam Angle Spot: 5.7°
• Beam Angle Flood: 26.8°
• Beam Angle 50% Zoom: 13.8°
• Field Angle Spot: 9°
• Field Angle Flood: 33.9°
• Field Angle 50% Zoom: 19.2°
• Cutoff Angle Spot: 9.9°
• Cutoff Angle Flood: 36.3°
• Cutoff Angle 50% Zoom: 21.6°
• Zoom Range: 5.7° to 36.3°
• Lumens: 5,807 lm
• Illuminance (Spot) : 38,727 lux @ 5 m
• Illuminance (Flood) : 1,120 lux @ 5 m
• Selectable PWM: 600, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz

DYNAMIC EFFECTS

• Tilt: 200°
• Tilt Range: 60°, 180°, 200°
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20Hz
• Standalone Color Mixing: No
• Color Temperature Presets: Yes
• Dim Modes: 5
• Built-in Automated Programs: Yes
• Customizable Programs: Yes
• Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: 39.49 x 6.65 x 12.76 in (1,003 x 169 x 324 mm)
• Weight: 76 lb (34.5 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast, High-Impact flame-retardant polymer, Steel

CONNECTIONS

• Power Connection: Edison (local) plug to Neutrik® powerCON®
• Power Input: Neutrik® powerCON®
• Power Output: Neutrik® powerCON®
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX, RDM
• DMX Channels: 18 or 21
• Modes/Personalities: 2 personalities (18, 21)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 2 units @ 120 V; 5 units @ 208 V;5 units @ 230 V
• Power and Current: 488 W, 4.09 A @ 120 V, 60 Hz
• Power and Current: 480 W, 2.35 A @ 208 V, 60 Hz
• Power and Current: 481 W, 2.03 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC, UKCA
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT’S INCLUDED

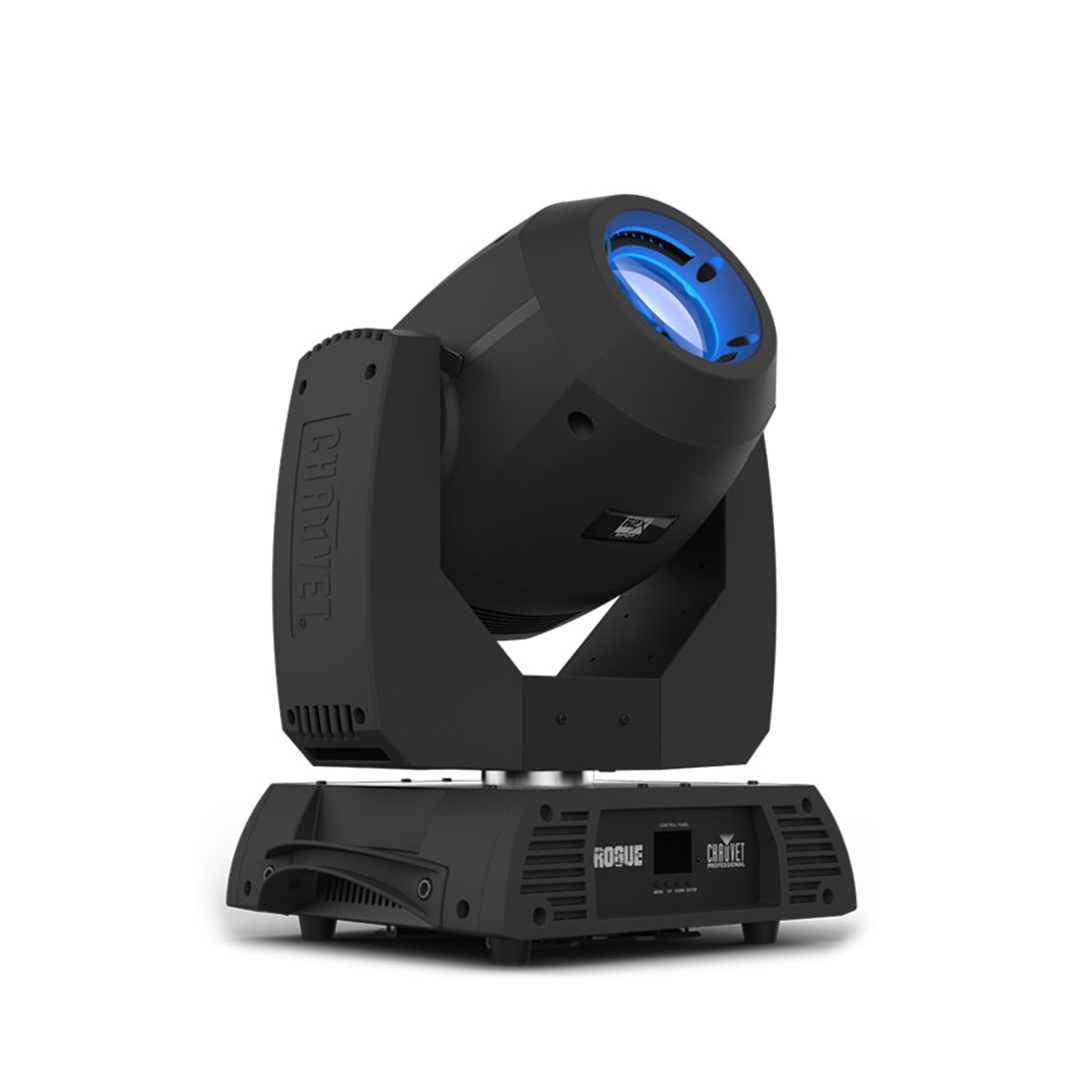

• Rogue R2X Spot
• Neutrik powerCON power cord
• Omega bracket with mounting hardware

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• DMX Cables
• powerCON extension cables
• Upload 08 software uploader
• Road Case: CP2CASER2XR3XSPOT

• Power Connection: Edison (Local) plug to Seetronic Powercon IP65
• Power Input: Seetronic Powercon IP65
• Power Output: Seetronic Powercon IP65
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: Art-Net, sACN, DMX, RDM, Klingnet
• DMX Channels: 20ch, 53ch, 101ch, 155ch, 179ch
• Art-Net Channels: 20ch, 53ch, 101ch, 155ch, 179ch
• sACN Channels: 20ch, 53ch, 101ch, 155ch, 179ch
• Modes/Personalities: 5 personalities( 20ch, 53ch, 101ch, 155ch, 179ch)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 1 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V
• Power and Current: 790 W, 6.70 A @ 120 V, 60 Hz
• Power and Current: 772 W, 3.80 A @ 208 V, 60 Hz
• Power and Current: 768 W, 3.44 A @ 230 V, 50 Hz
• Fuse: F12 A, 250 V

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, UKCA, FCC
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

WHAT’S INCLUDED

• COLORADO PXL Curve 12
• (2) Omega brackets
• Seetronic Powercon IP65 power cord

OPTIONAL ACCESSORIES

• Professional Clamps
• Neutrik TRUE1 power linking cables
• 5-pin DMX Cables
• Ethercon Cables
