Description

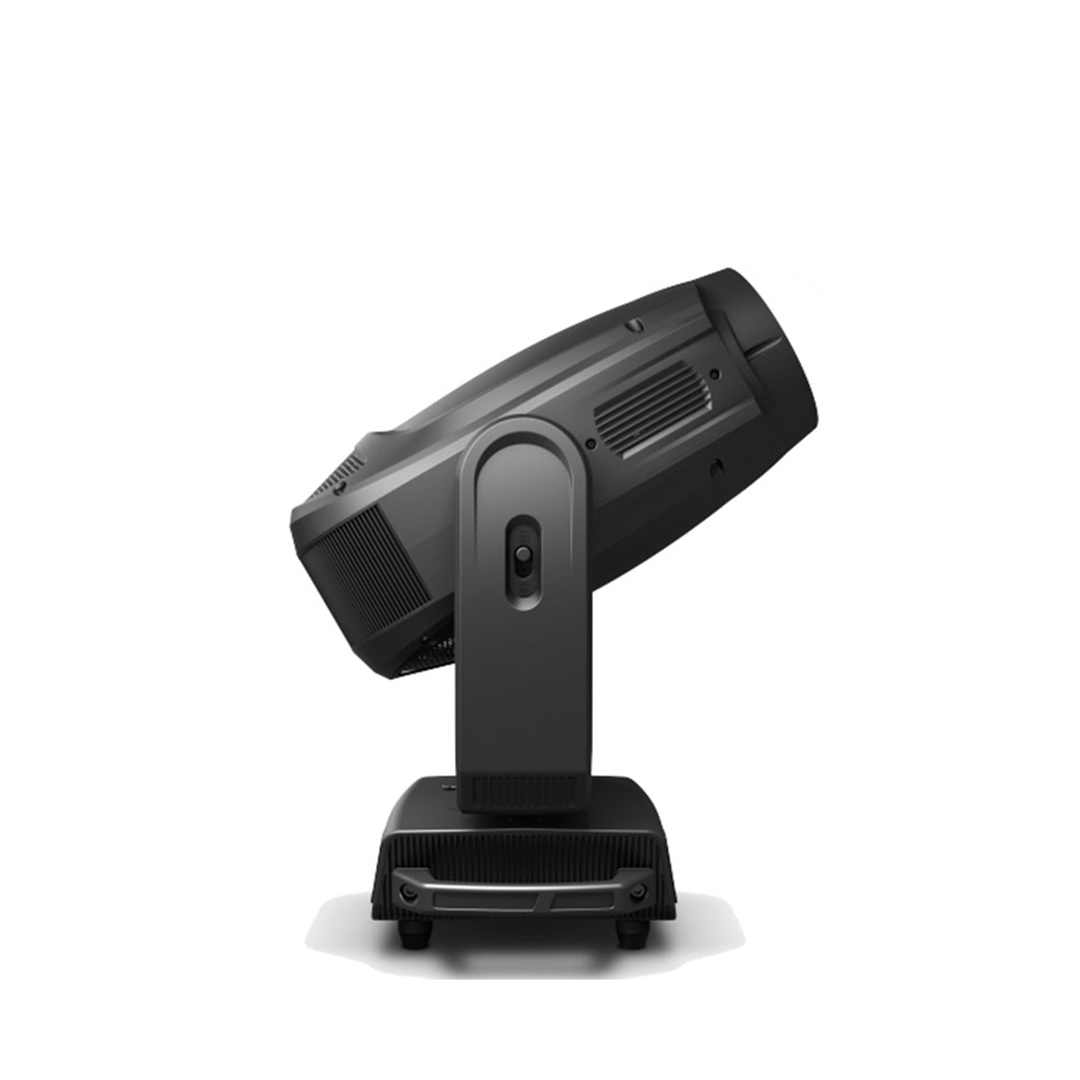

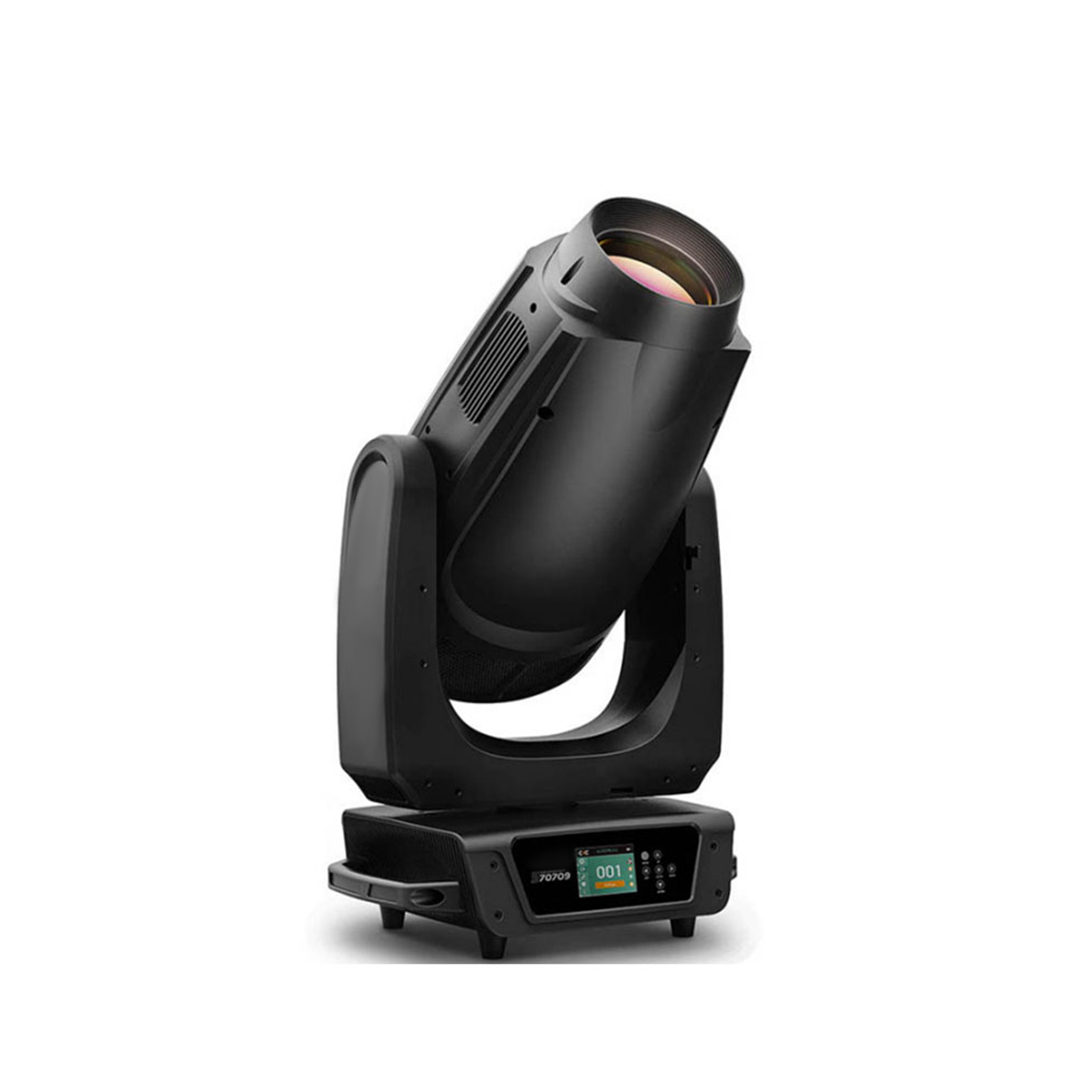

TourPro presents the V6 LED Profile with a 600w White Source LED Engine. The V6 LED Profile is feature rich with CMY Colour control, Variable CTO Colour Correction, Elegant Designer series of Gobos, Animation, continuous iris, and beautiful dimming. The fourfold diaphragm framing system allows you to precisely achieve individual shading positions of +/- 45o making this a complete solution for any application.
TECHNICAL SPECIFICATIONS
Colour spectrum: Cool White
Colour Temperature: 6500K
Colour Render Index: 72
LED type: Single 600w LED
Dispersion: 9o- 46o Zoom
Colour: CMY, Variable CTO, 10 Dichroic Wheel
Gobo: 7 Rotating, 8 Static
Effects: 3 Facet circular , 6 – Facet Linear Prism
Animation: Rotating Animation
Framing: 4 x Diaphragm +/- 45o
Frost: Variable
Hi Speed Iris, shutter
DMX input/output: 5 Pin DMX, Art-NET, sACN, W-DMX
Dimming Curve: Four
Quick electronic strobe 1 ~ 25 Hz
Display: LCD Display
Operating Voltage: AC 100V – 240V 50/60 Hz
Power Consumption: 700W
Power Connector: True 1 In/out
Wireless DMX: W-DMX
Housing Material: Die Cast Metal, ABS Plastic
Cooling: Pipe cooling with temp controlled fans
Width: 397mm
Height: 753mm
Depth: 286mm
Weight: 31kg
IP: 30
