Description

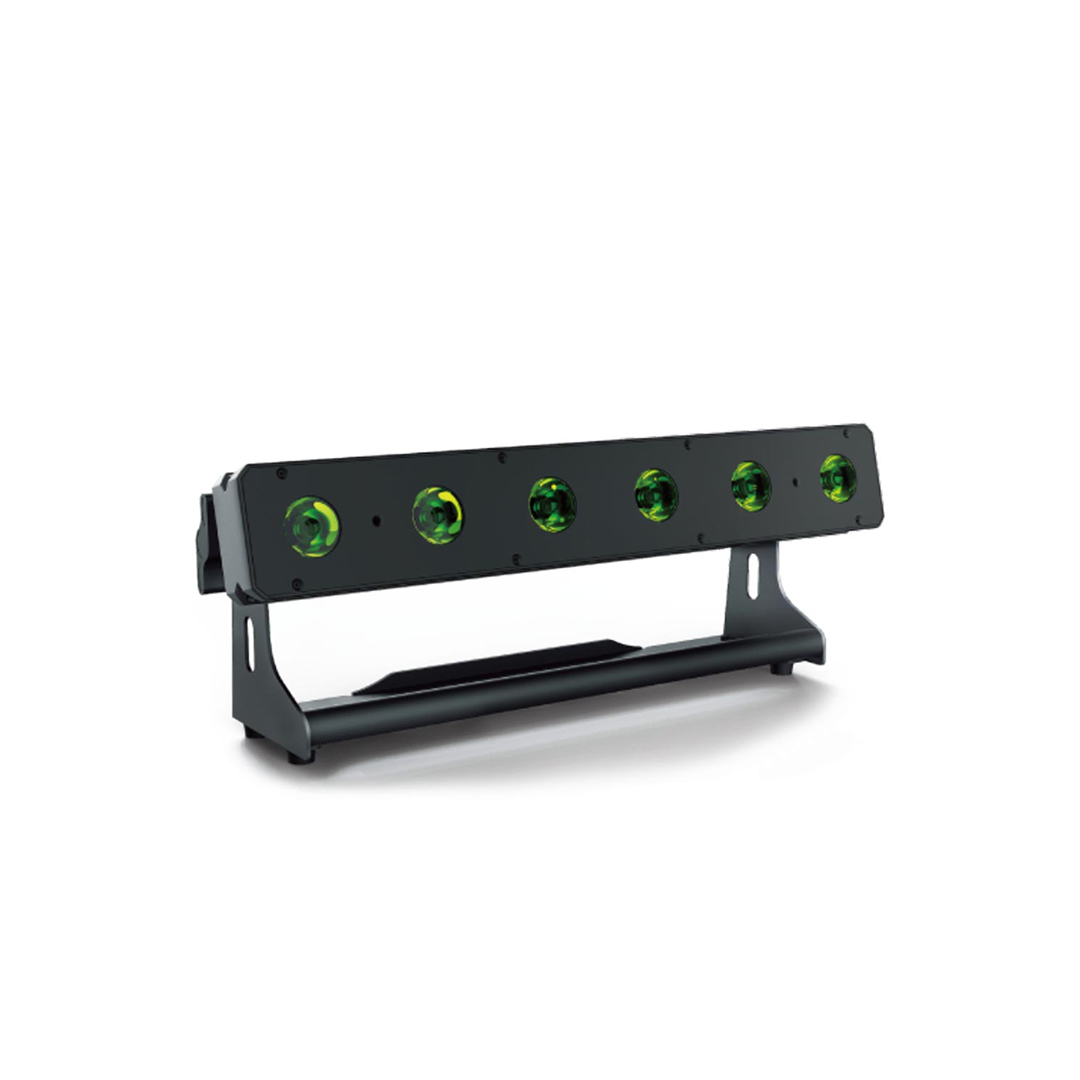

TourPro Lighting presents a LED Pixel Bar. Featuring Six 12w RGBWA+UV LED engines. With
each LED having the flexibility of being individually controlled making it easy to have dynamic
graphic effects.
TECHNICAL SPECIFICATIONS
Colour spectrum: RGBWA+UV
Number of LEDs: 6
LED type: 12w

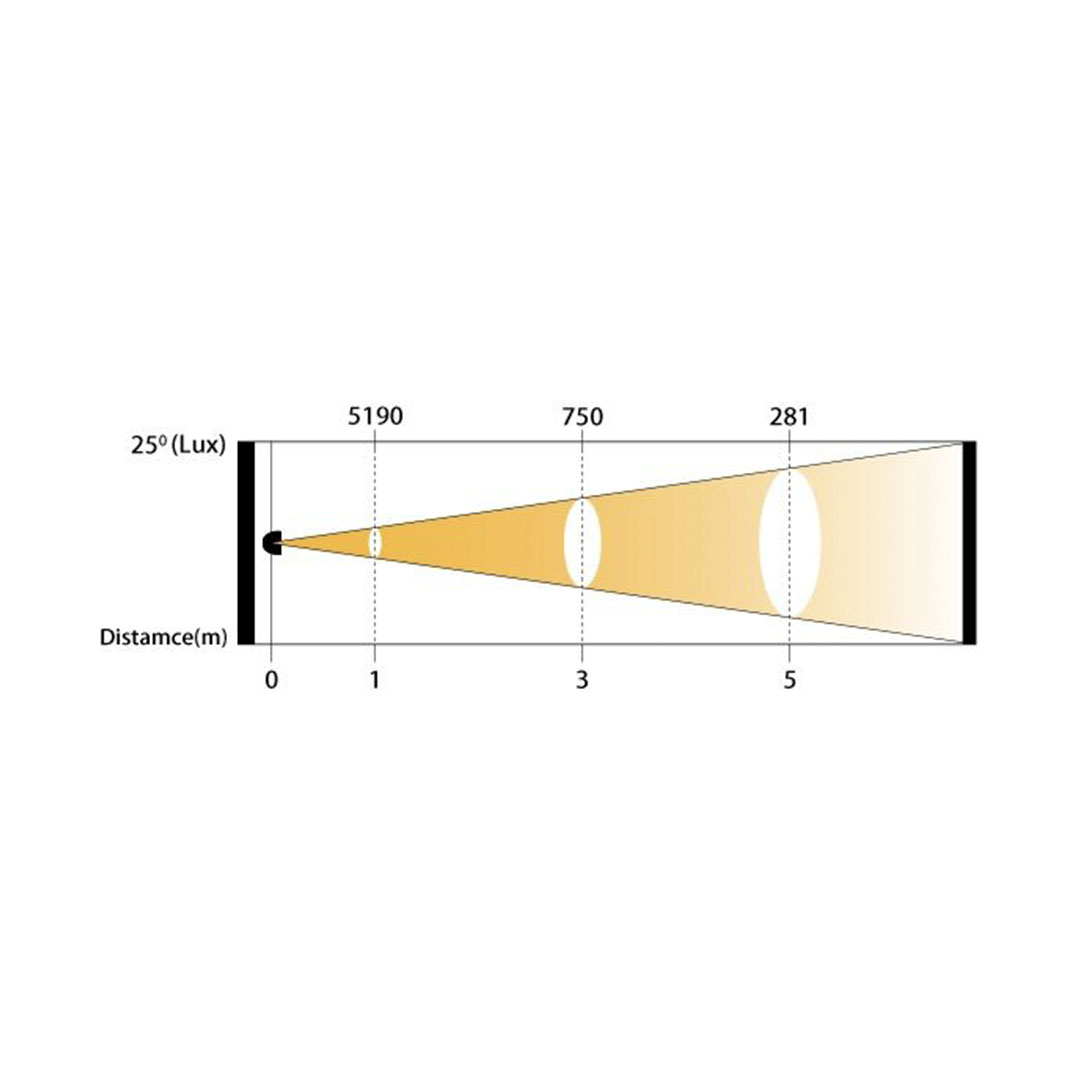

Dispersion: 25° (45° Optical Lens Included)
Refresh rate: 2000Hz
DMX input/Output: DMX 5-Pin with RDM
DMX mode: 2/6/8/12/38/42-channel modes
A variety of built-in programs to choose from. Built in Battery to change DMX without Power
Display: LCD display
Operating voltage:110 V AC – 240V AC / 50 – 60 Hz
Power consumption: 85w
Power connector: PowerCon In/Out
Housing material: Aluminium + Flame Retardant Plastic Housing
Dimming Modes: Two
Dimming Curve: Four
Dimensions
Width: 450m
Height: 147mm
Depth: 145mm
Weight: 4kg
