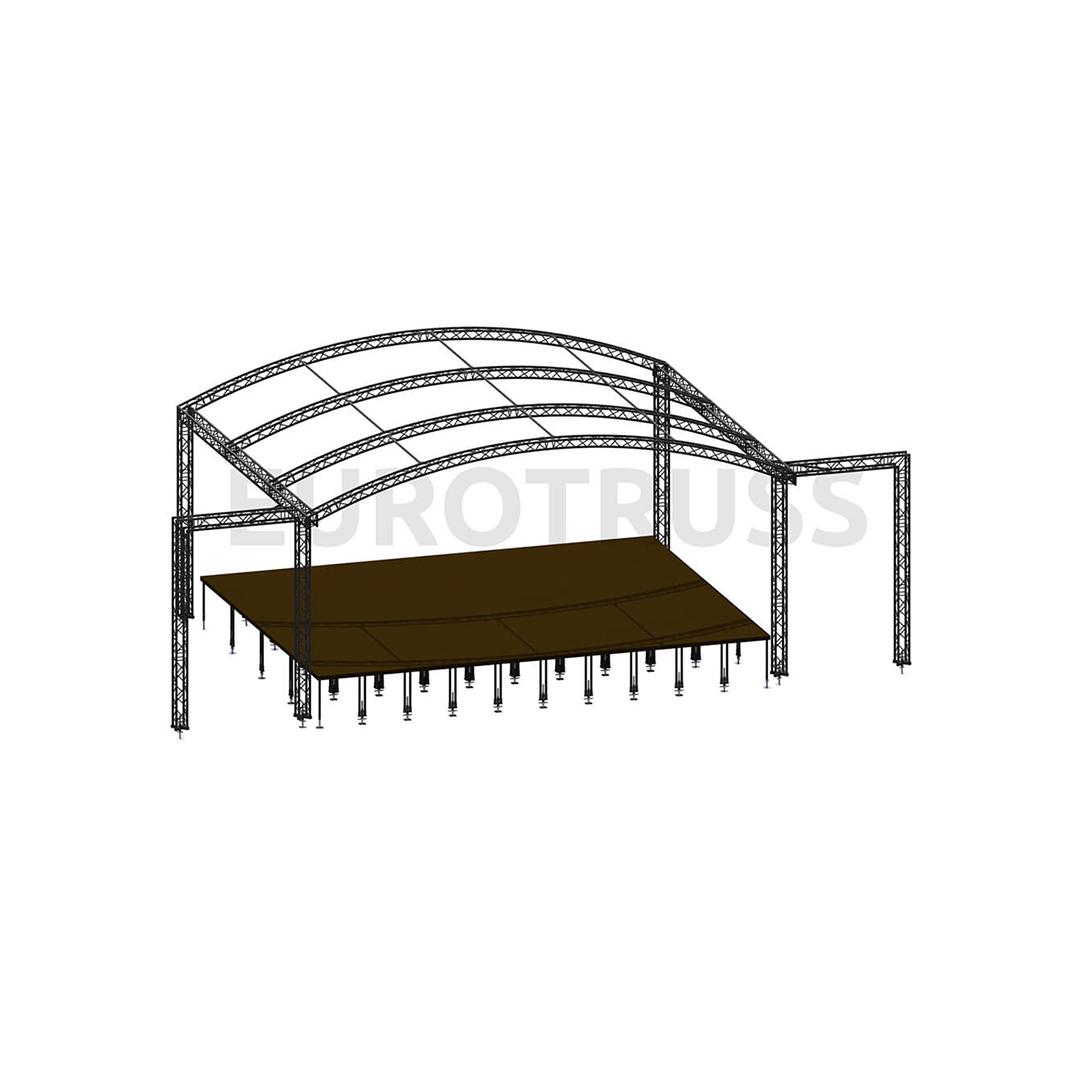

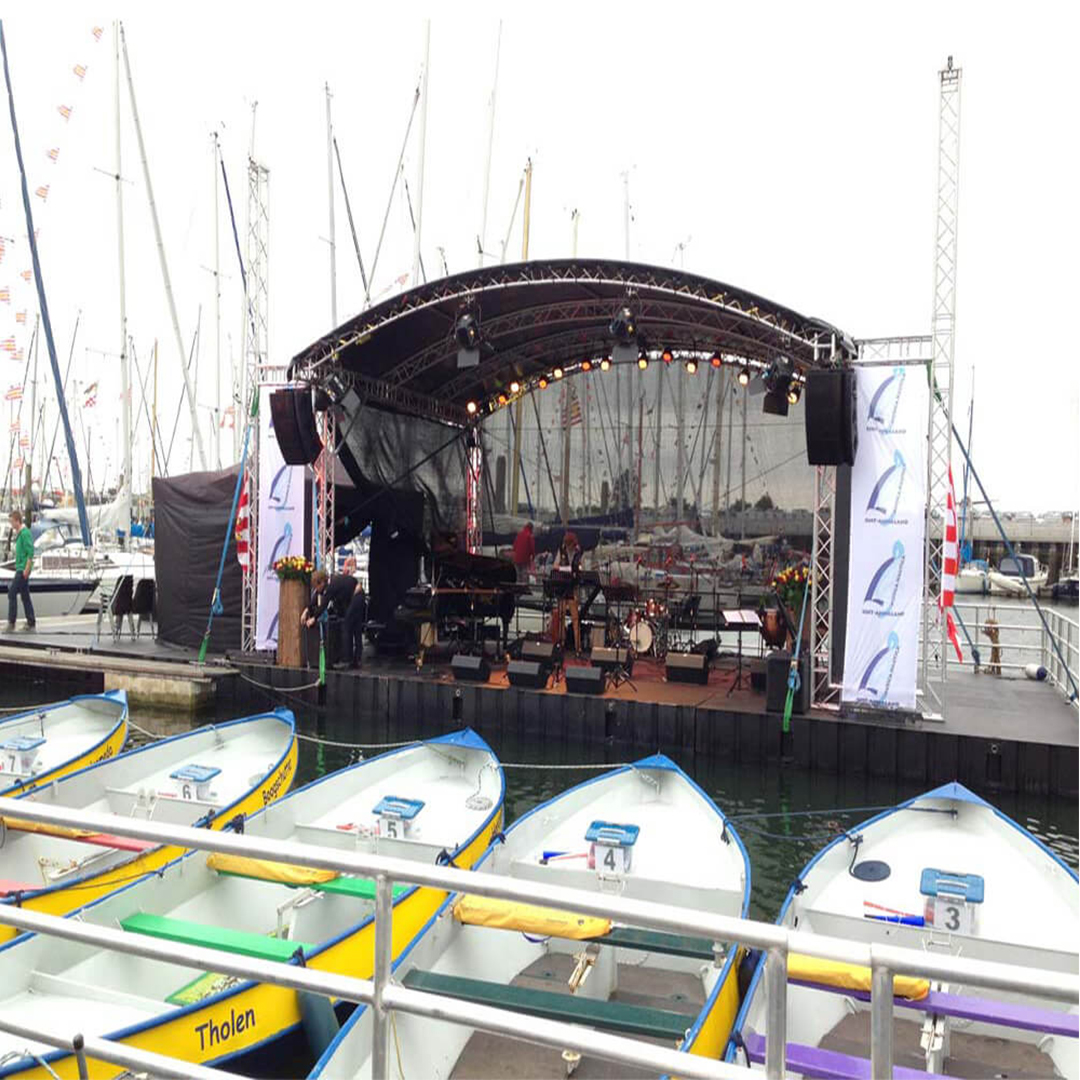

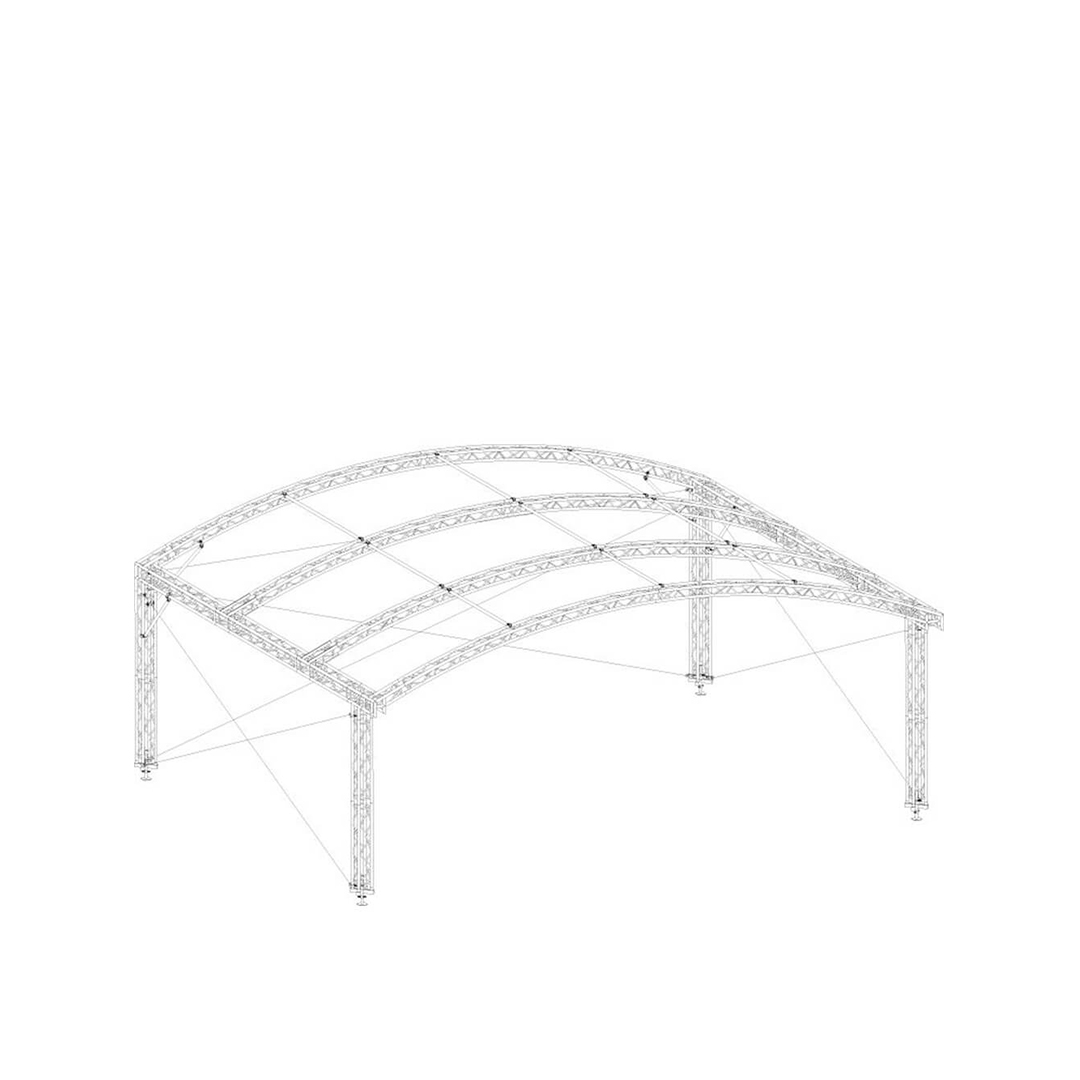

The arched roof structure consist of standard HD/FD34 mast truss sections on special small bases. Integrated jacks and a few special corners assures the fit for the triangular FD/HD33 arches. Between the arches standard hook on bars are required for extra stability and to support the canopy. Available in different sizes -The AR-10 Arc Roof comes in various dimensions 10x8m, 8x6m, 8x4m and 6x4m and all roofs are available in FD or HD Version. The top canopy is tightened with tubes and ratchet straps and the wall canopies can be either in full PVC or the wind through mash.The AR-10 Arc Roof is on many occasions the perfect solution by its low self weight, minimum of volume, easy and fast manual set up by 2 persons and a nice appearance.

Description

Eurotruss

The arched roof structure consist of standard HD/FD34 mast truss sections on special small bases. Integrated jacks and a few special corners assures the fit for the triangular FD/HD33 arches. Between the arches standard hook on bars are required for extra stability and to support the canopy. Available in different sizes -The AR-10 Arc Roof comes in various dimensions 10x8m, 8x6m, 8x4m and 6x4m and all roofs are available in FD or HD Version. The top canopy is tightened with tubes and ratchet straps and the wall canopies can be either in full PVC or the wind through mash.The AR-10 Arc Roof is on many occasions the perfect solution by its low self weight, minimum of volume, easy and fast manual set up by 2 persons and a nice appearance.

Specifications

Type
AR-10
Size
10×8
Tower
HD 34
QTE (Towers)
4
Main Rig
HD 34
Roof Structure
HD 33
PA Wing possible
Yes
Compression
optional
Max. Load PA Wing
1000Kg.
Width
10,2m.
Clearance
5,6m.
Depth
8,89m.
Max. PL
3000Kg.
Max. UDL
800Kg.

Additional information

Dimensions 10.2 cm
Brand

Eurotruss
