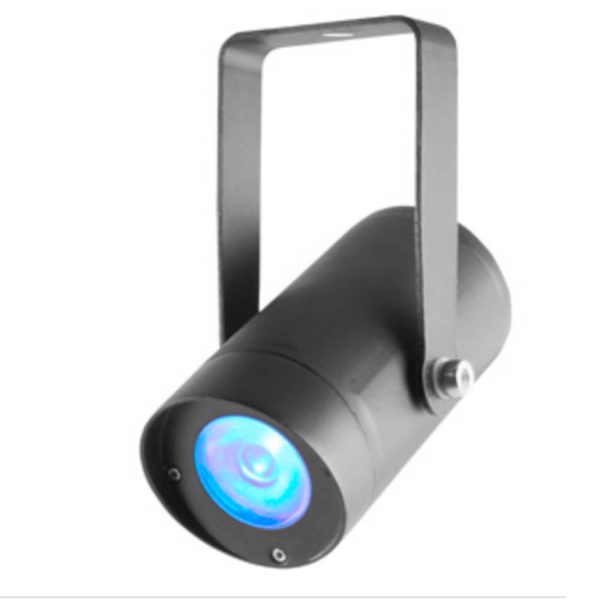

Colorist Pod 1Qa

LIGHT SOURCE & OPTICAL SPECIFICATIONS

• Light Source: 1 LEDs (quad-color RGBA)10 W, (712 mA)
• Light Source Lifespan: 50,000 hours based on LED manufacturer’s specifications
• Installed Optics: 15°
• Beam Angle: 13°
• Field Angle: 24°
• Lumens: 229
• Base Illuminance: 225 lux @ 5 m
• Efficacy: 14.6 lm/W
• Minimum Distance to Illuminated Surface: 4 in (92 mm)

CONSTRUCTION & PHYSICAL SPECIFICATIONS

• Length: 6.85 in (174 mm)
• Width: 4.09 in (104 mm)

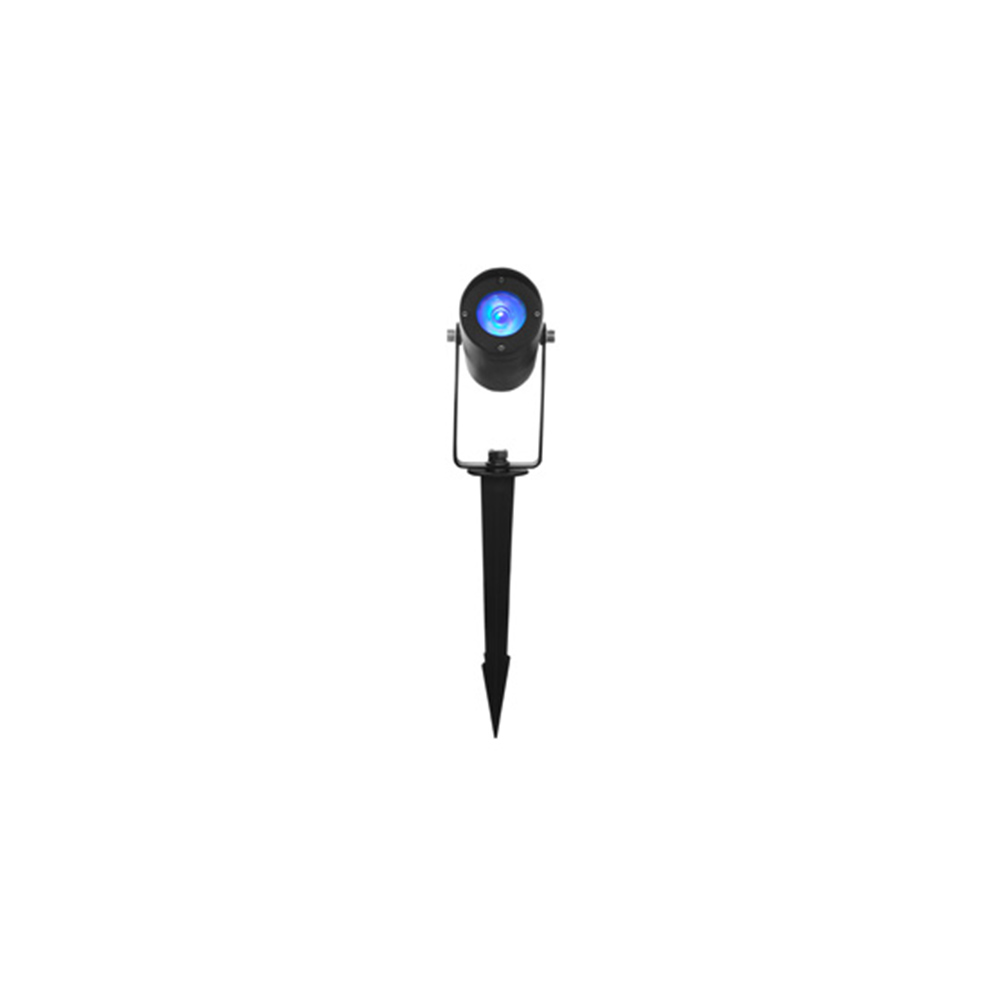

• Height: 6.43 in (163 mm) with base; 16.9 in (430 mm) with spike
• Weight: 3.6 lb (1.6 kg)
• Color: Black
• Ingress Protection Rating: IP65
• Housing Material: Extruded aluminum
• Lens Cover: Impact resistant glass
• Installation Orientation: Any

CONTROL SPECIFICATIONS

• Control Protocol: USITT DMX-512a, RDM
• Control Channels: 1, 4, 5, 6, 7 or 10
• Remote Addresser: RDM2go
• Data Connection: 6.6 ft (2 m) Waterproof cable
• Accessories (optional): IP5SIG IP signal extension 16.4 ft (5 m)

ELECTRICAL SYSTEM SPECIFICATIONS

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
  • 14 W, 0.209 A @ 120 V
  • 13 W, 0.125 A @ 208 V
  • 13 W, 0.113 A @ 230 V
• Power Supply: Electronic internal
• Dimmer: Electronic
• Power Linking: N/A
• Power Connection: 3.9 ft (1.2m) Waterproof cable, Edison plug to proprietary IP65 input power cord
• Accessories (optional): IP5POWER IP power extension 16.4 ft (5 m)

THERMAL SPECIFICATIONS

• Cooling: Convection
• Startup Temperature Range: -4 °F to 104 °F (-20 °C to 40 °C)
• Operating Temperature Range: -20 °F to 110 °F (-29°C to 43 °C)
• Storage Temperature Range: -40 °F to 167 °F (-40°C to 75 °C)

REGULATORY & VOLUNTARY QUALIFICATION

• Certification Listings: MET, CE
• Environment: Wet location, IP65, All indoor and limited outdoor permanent installations.
  • Please refer to the User Manual for more detailed information on installation.
