Description

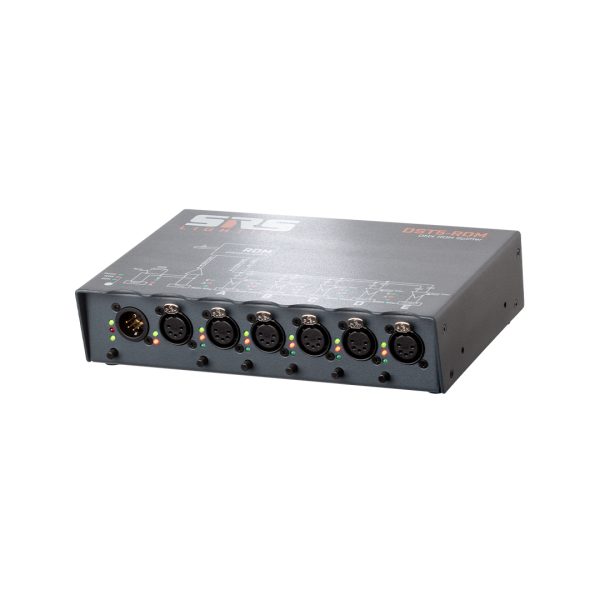

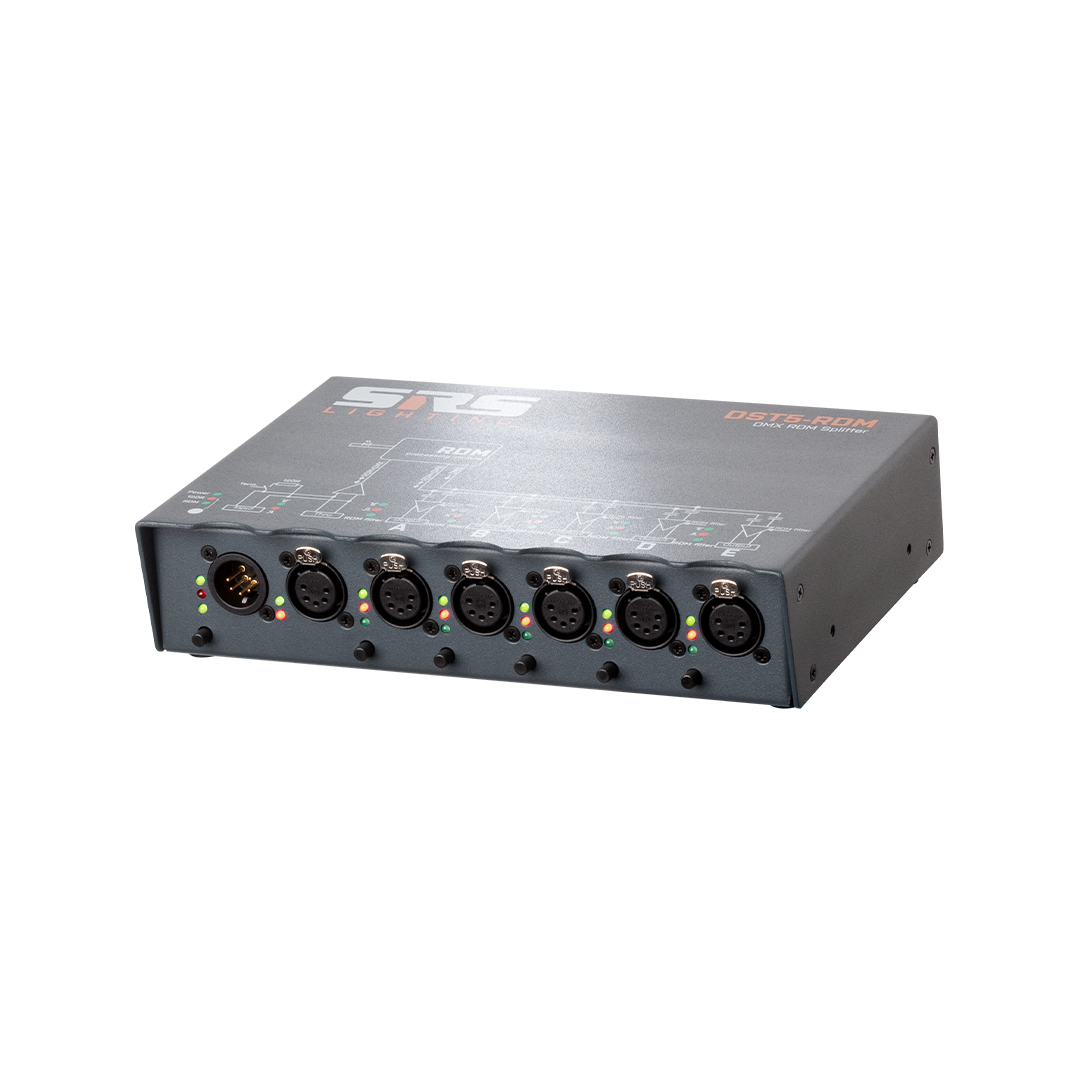

The DST5-RDM is a handy 5-channel portable splitter / booster of both the DMX and RDM signal. Every output features LED indication of the DMX/RDM status and an RDM filter, and is optically isolated up to 1000V. The unit also provides a true output for easy daisy-chaining of other DMX/RDM devices.
RDM filter functions: Easy mix and match the RDM and non-RDM devices on a single unit Removes RDM commands for legacy support When engaged, the corresponding channel works with standard DMX signal only
The DST5-RDM comes with 3- or 5-pin XLR connectors or a combination of them.
All SRS splitters are covered by a life-time warranty.
TECHNICAL SPECIFICATIONS
Specifications:
- 5-channel DMX/RDM splitter / booster
- Optically isolated outputs 1000V
- Amplification on each output
- 2x LED indicator of the DMX/RDM status for each output
- Termination switch with LED indication
- Full range power supply: 85V-264V, 50/60Hz, 5W
- Neutrik PowerCon connector
- Truss / wall-mount
- M10 thread for C-clamp connection
- Optional wall-mount adapters
- LIFE-TIME WARRANTY
- Vented casing for unrestricted airflow.
All SRS’s products deliver maximum reliability, durability, and the simplicity of control.
With its high level of industry experience, SRS develops and manufactures equipment that satisfies customer’s needs while exceeding their expectations.
* All Specifications subject to change without notice.
* Speak to us about customisations to suit your needs.
