Description

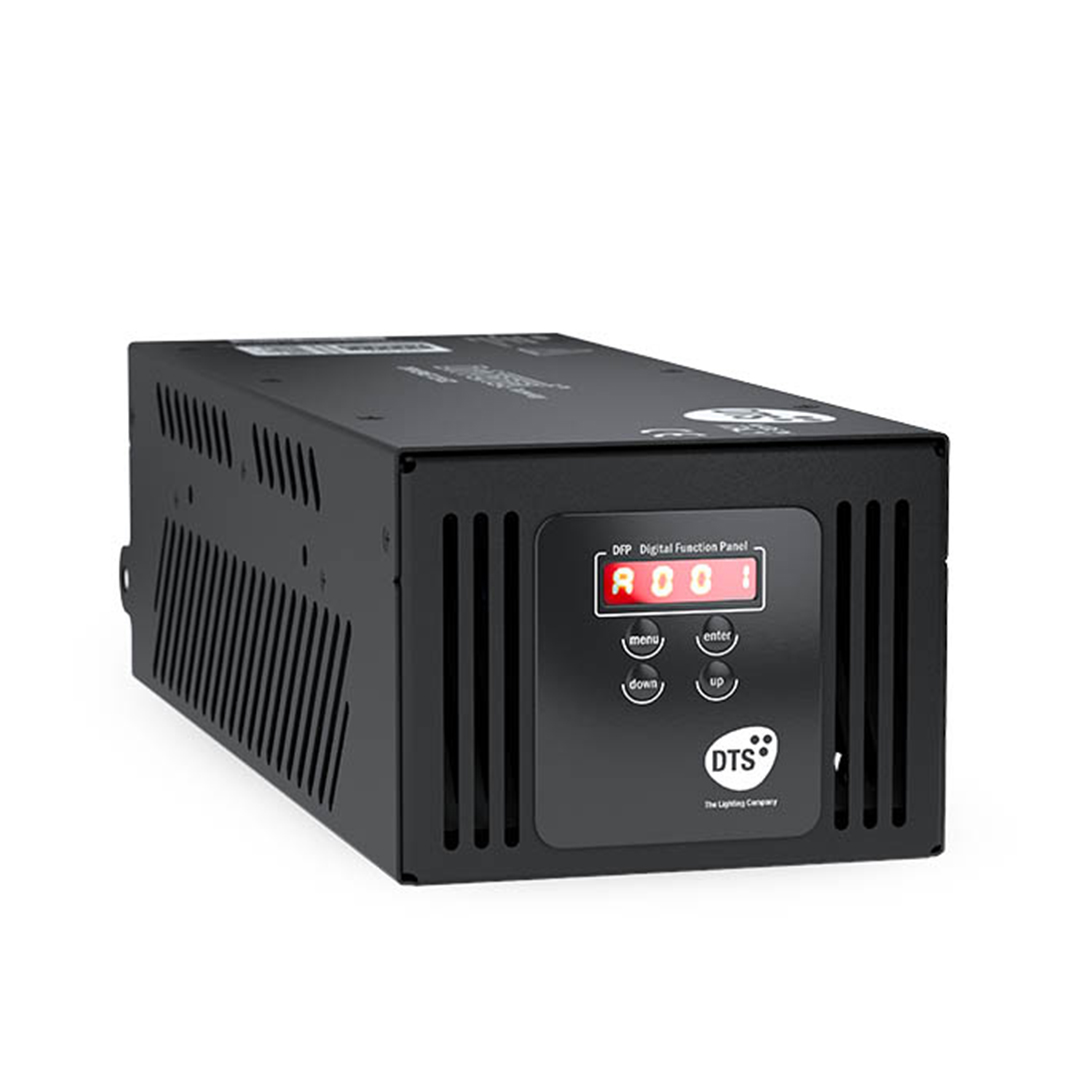

DRIVENET 28 EZ is a 8-channel power supply wall or truss mountable, 100-240 Vac 50-60 Hz. the unit is the must compact Drivenet in its range that can control most of the DTS LED projectors or any other current-driven LED projector matching the unit output specifications. Drivenet 28 EZ is fitted without fan to assure the minimum noise to respect the most demanding applications where silent operation is required.
Specifications
Control
Unit controlled via RDM/DMX512 or DALI protocols
Updatable operating software
Maximum Projector Distance – 100m
* Max projectors distance for FOS 100 and HELIOS R fixtrures must be 50 m
Compatibility Chart
Mini Brick Arc
Fos 100 Fc
Fos 100 White 36
Fos 33 Fc
Fos 33 White 12 Freeline 90 Fc
Freeline 60 Fc
Freeline 30 End Fc
Helios R Fc
Eos 6 / Eos 6 R Fc Niki Tin 26 White
Niki Tin 26 Fc
Focus / Focus R Fc
Focus Power
Focus Pinspot 3000k
Terra White
Terra Fc
Sav White
Sav Fc
Minifocus / Minifocus R Fc
Microfocus R
X SUN 3000K + RGB
Pixel Drop
Minipixel Drop
Artemio Profile
Artemio Fresnel
Sun Deep
Vice R Fc
Vice R Deep Fc
Donut 18 Fc
Donut 12 Fc
Helios Bronze 12 / Helios R Bronze 12 Fc
Power & Connections
Input voltage/frequency range
100-240VAC 50-60hz
Power Factor
PF >0.94
Output Channels
8 (4 channels x 2 groups)
Output Voltage
48Vdc
Output Current
700mA Max (Per Channel)
Max Power
300w
Output Connections
Screw Terminal Connectors
Power Input Connection
PowerCON male panel connector
DMX Connection
XLR 5 Pin In/Out Panel Connectors
Display
4-digit, 7-Segment LED Display
Thermal Specifications
Cooling convection only
min. ambient temperature (Ta min.)
-10 °C / 14 °F
max. operating temperature
40°C / 104°F
Location
Indoor Only
IP Rating
IP20
Construction
Housing Colour
Black
Housing Material
Aluminum
Dimensions & Weight
Length
280 mm / 11 in
Width
111.8 mm / 4.4 in
Height
85.3 mm / 3.4 in
Weight
2kg / 4.41 lbs
