Description

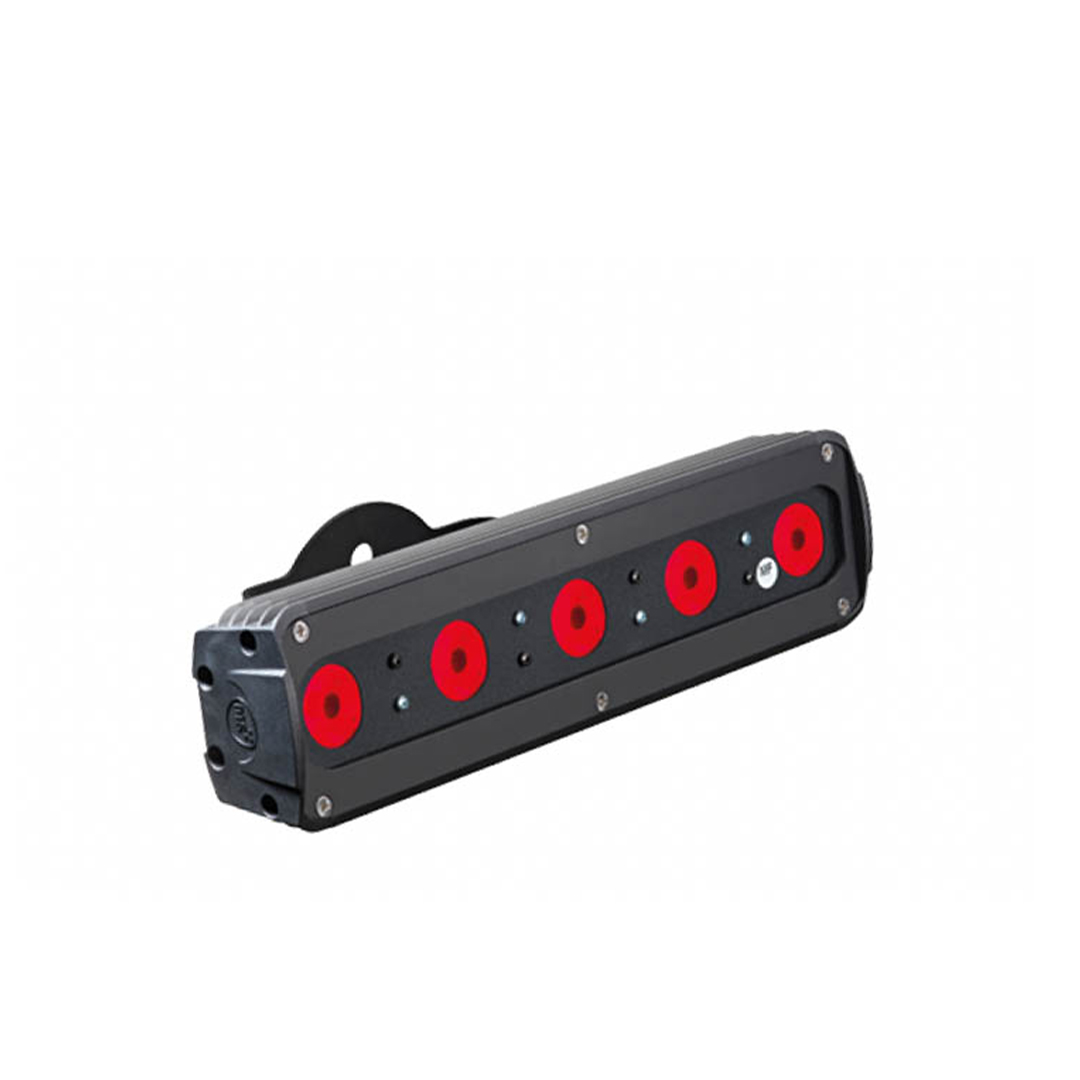

FOS is a compact and robust LED light bar fitted with 5 OSTAR Full Color LEDs. This powerful LED bar can be used either for background lighting or for linear effects. The unit is available with different beam angles and it can be fitted with additional filters to further enlarge its projections range. FOS is IP65-rated and it must be powered by external PSUs as the DTS DRIVENET series.
Specifications
Light Source
Type
FULL COLOUR LED (RGBW)
Light Source Count
5
Light Source Lifetime
50,000 h
Lumen Output
2,150
Colour Generation
16 Million Colours
Wide palette of pure uniform whites with variable linear color temperature (2700K – 8000K)
Optical group
3 lens set available: 10° / 25° / 40°
Holographic filters available on request
Control
Control Via the External PSU:
– DRIVENET 28C DIN @ 48Vdc
– DRIVENET 28 EZ / 416 / 832 (full-range 100-240Vac 50-60 Hz)
– DRIVENET 832(Full-range 100-240Vac 50-60 Hz)
– DRIVENET 1664 (range 180-240Vac 50-60 Hz)
Power consumption: 50W max
Connectors
30cm cable with M12 male IP67 connector
Thermal Specifications
Cooling convection only
min. ambient temperature (Ta min.)
-10 °C / 14 °F
Location
Outdoor permanent
Construction
Housing Colour
Black
Housing Material
Aluminum & Glass
Protection Rating
IP 65
Dimensions & Weight
Width
84.5 mm / 3.33 in
Length
330 mm / 12.99 in
Height
135.4mm / 5.33 in
Weight
1.9 kg / 4.2 lbs
