The DST8 is a small 8-channel portable splitter / booster of the DMX signal. Every output features LED indication of the DMX status and is optically isolated up to 1000V. The unit also provides a true output for easy daisy-chaining of other DMX devices.

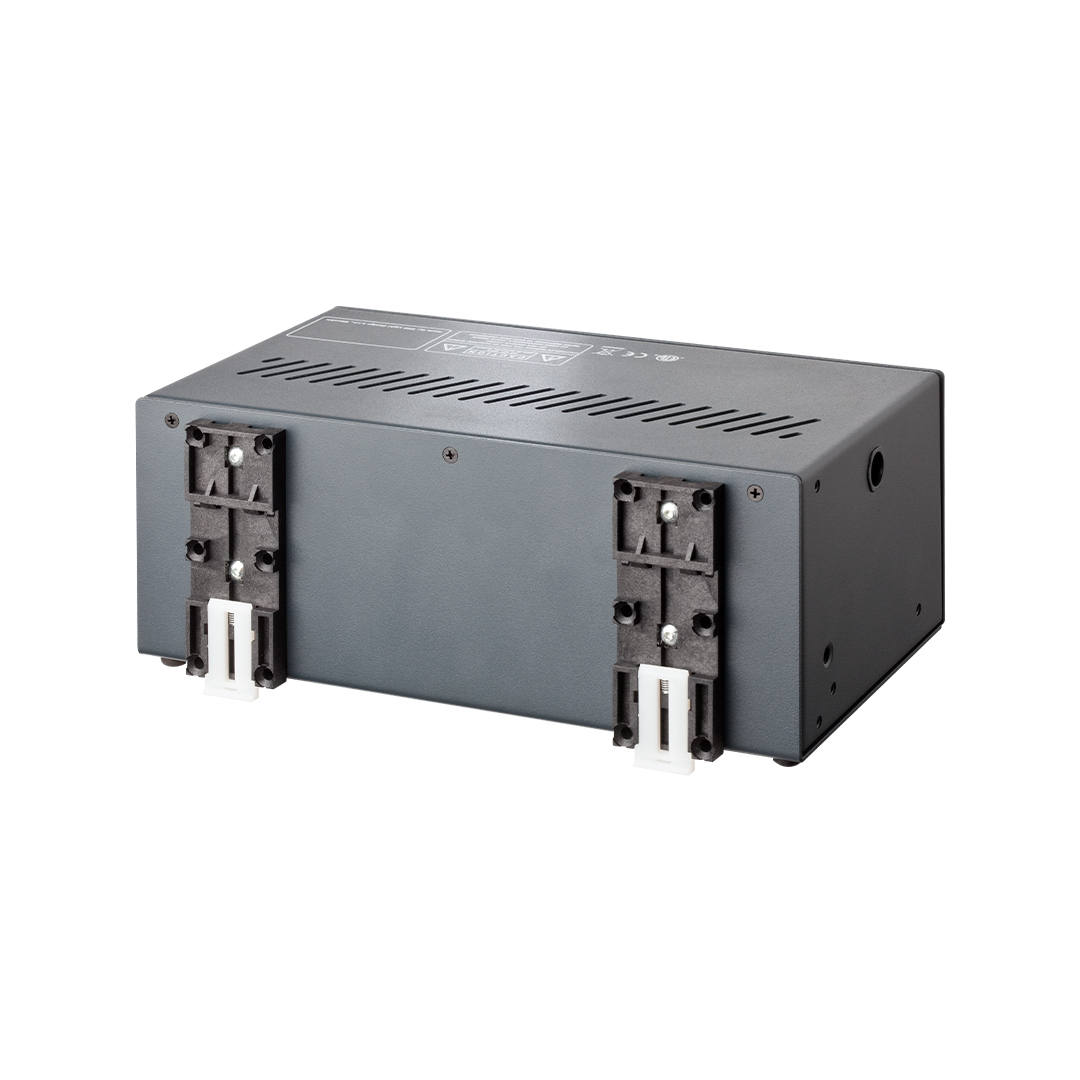

Unit can be easily mounted on DIN rail using built-in clamps, on truss using M10 clamp (not included) or simply set on any flat surface.

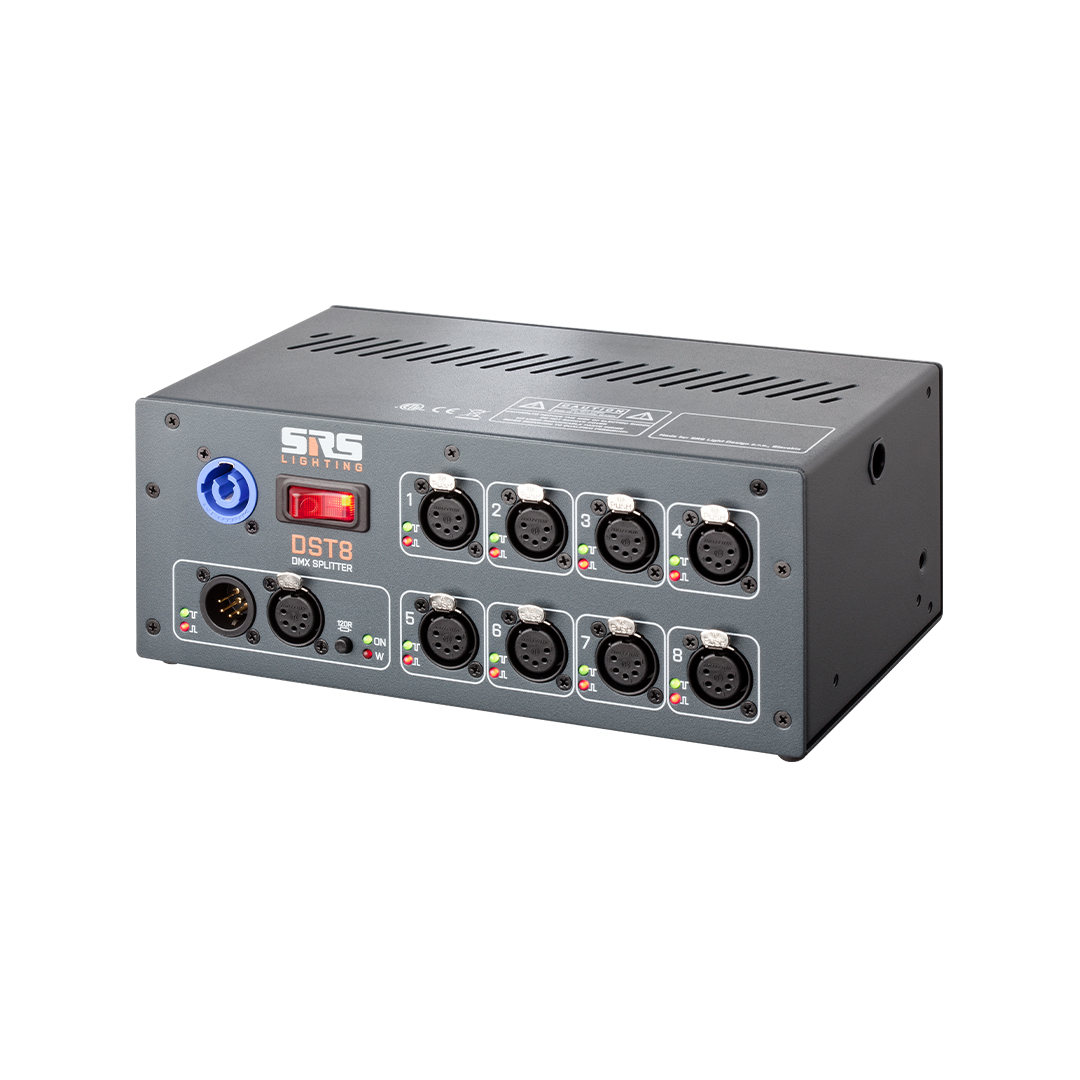

The DST8 comes with 3- or 5-pin XLR connectors or a combination of them.

All SRS splitters are covered by a life-time warranty.

Add to Wishlist
Compare
Categories: , Tag:

Description

Specifications

Specifications:

  • 8-channel DMX splitter / booster
  • Optically isolated outputs 1000V
  • Amplification on each output
  • 2x LED indicator of the DMX line status for each output
  • Termination switch with LED indication
  • Truss / wall / DIN rail-mount
  • M10 thread for C-clamp connection
  • Safety wire connection
  • Full range power supply: 85V-264V, 50/60Hz, 5W
  • Neutrik PowerCon connector
  • LIFE-TIME WARRANTY
  • Vented casing for unrestricted airflow.
Spec Sheet

All SRS’s products deliver maximum reliability, durability, and the simplicity of control.

With its high level of industry experience, SRS develops and manufactures equipment that satisfies customer’s needs while exceeding their expectations.

* All Specifications subject to change without notice.

* Speak to us about customisations to suit your needs.
