Description

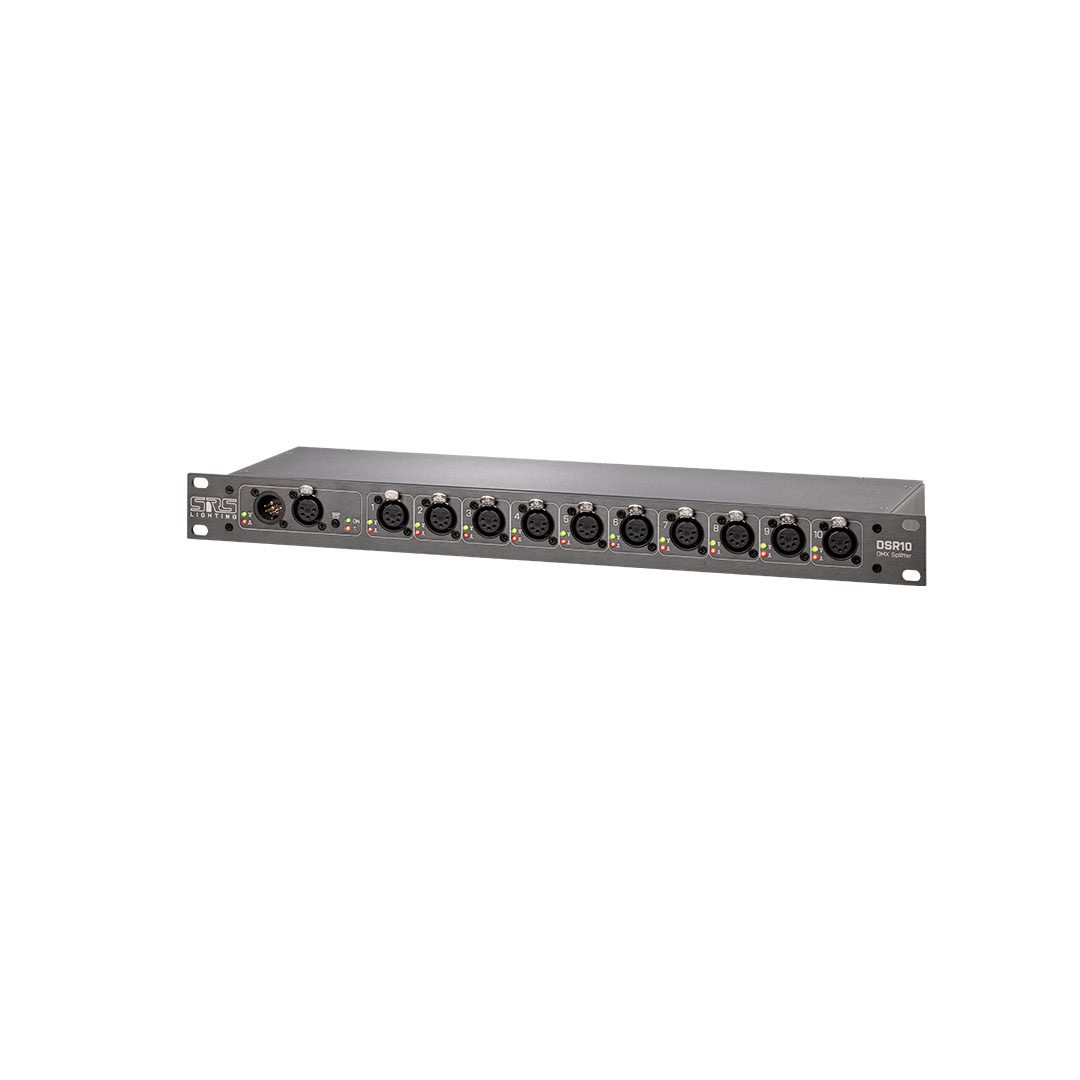

The DSR10 is a 19” 1U rack-mount 10-channel splitter / booster of the DMX signal. Every output features LED indication of the DMX status and is optically isolated up to 1000V. The unit also provides a true output for easy daisy-chaining of other DMX devices.
The DSR10 comes with 3- or 5-pin XLR connectors or a combination of them.
All SRS splitters are covered by a life-time warranty.
Specifications
Specifications:
- 10-channel DMX splitter / booster
- Optically isolated outputs 1000V
- Amplification on each output
- 2x LED indicator of the DMX line status for each output
- Termination switch with LED indication
- 1U, 19” rack-mount
- Optional wall mount via UNIHOLDER60
- Full range power supply: 85V-264V, 50/60Hz, 5W
- Neutrik PowerCon connector
- LIFE-TIME WARRANTY
- Vented casing for unrestricted airflow.
- Made in Europe
All SRS’s products deliver maximum reliability, durability, and the simplicity of control.
With its high level of industry experience, SRS develops and manufactures equipment that satisfies customer’s needs while exceeding their expectations.
* All Specifications subject to change without notice.
* Speak to us about customisations to suit your needs.
