ALCHEMY 7

Description

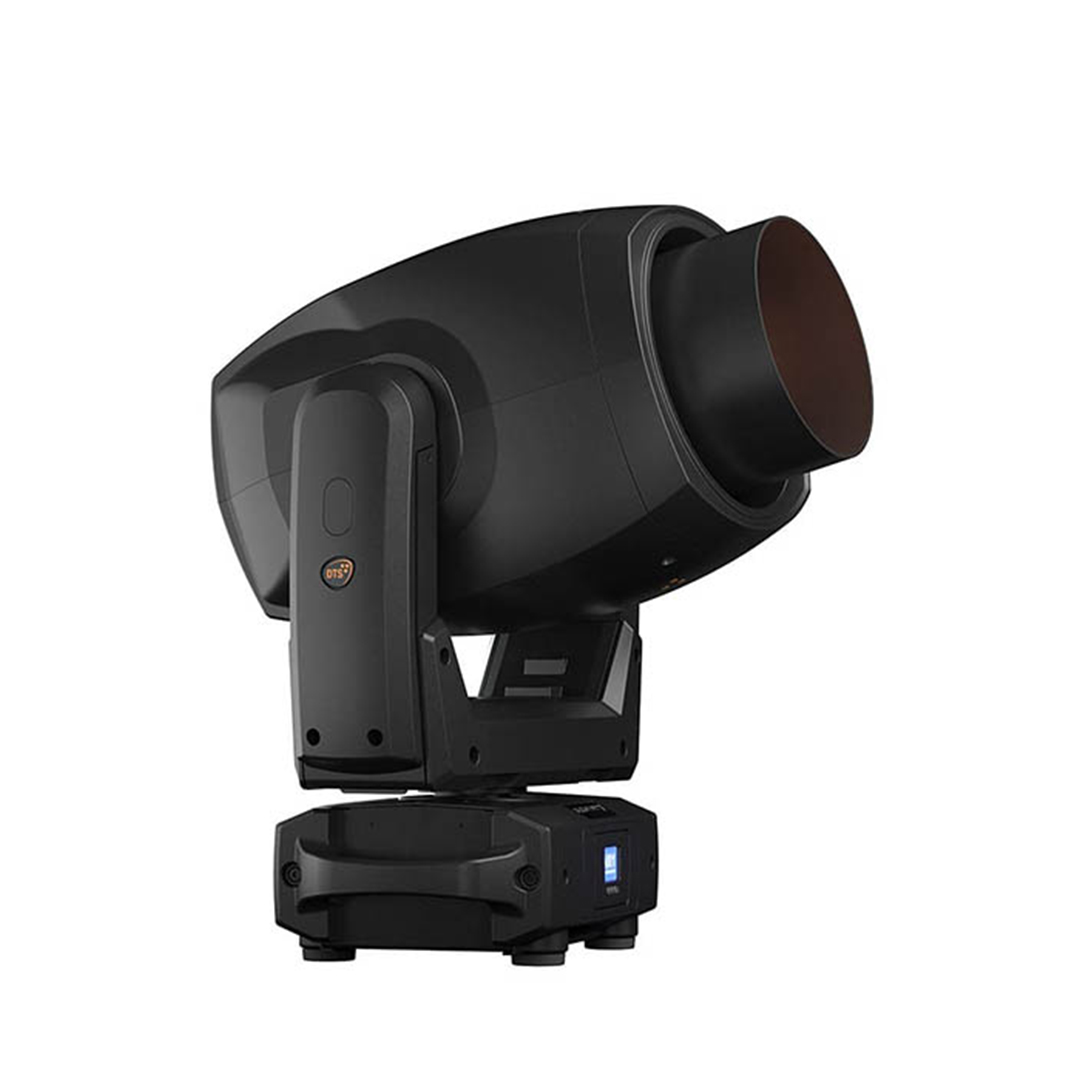

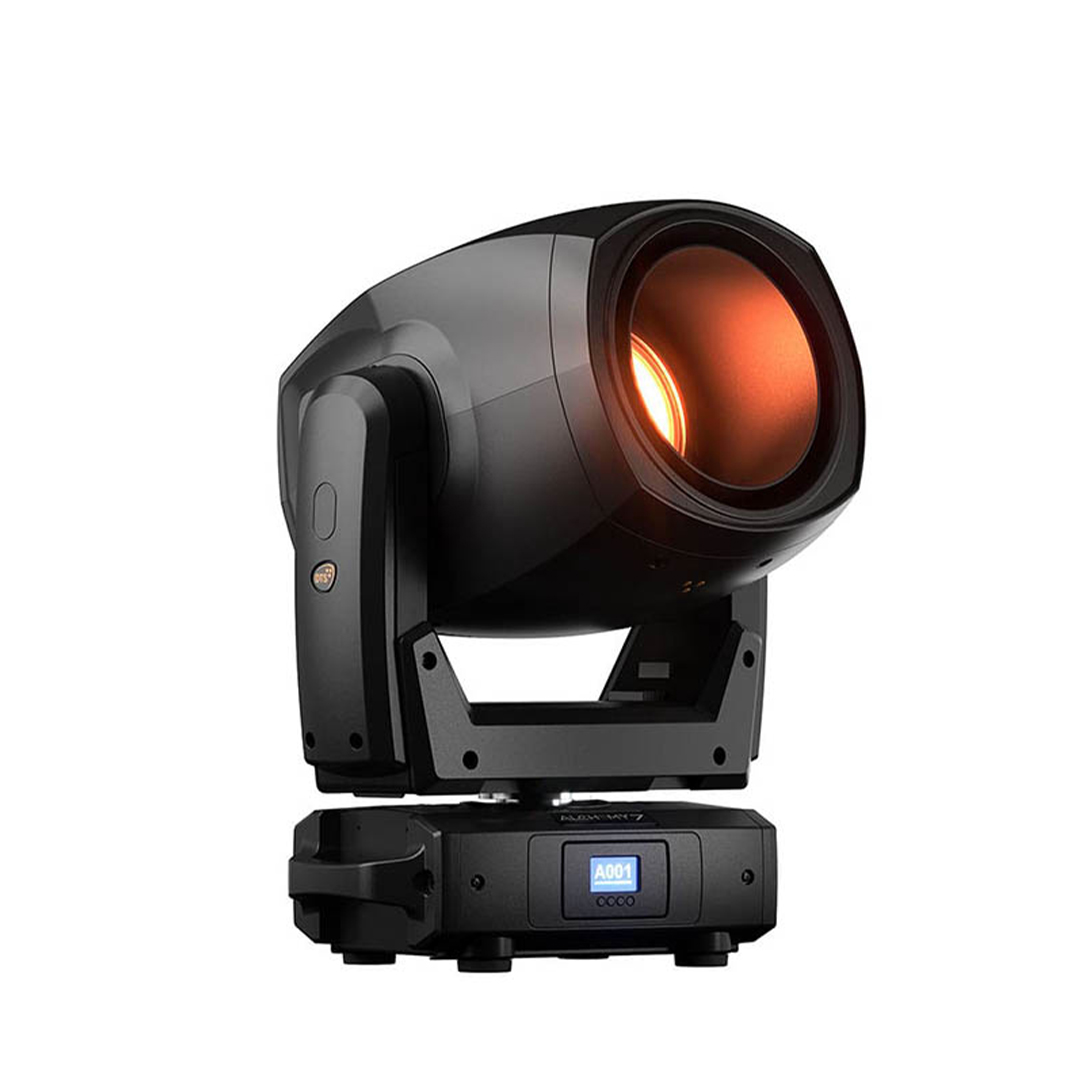

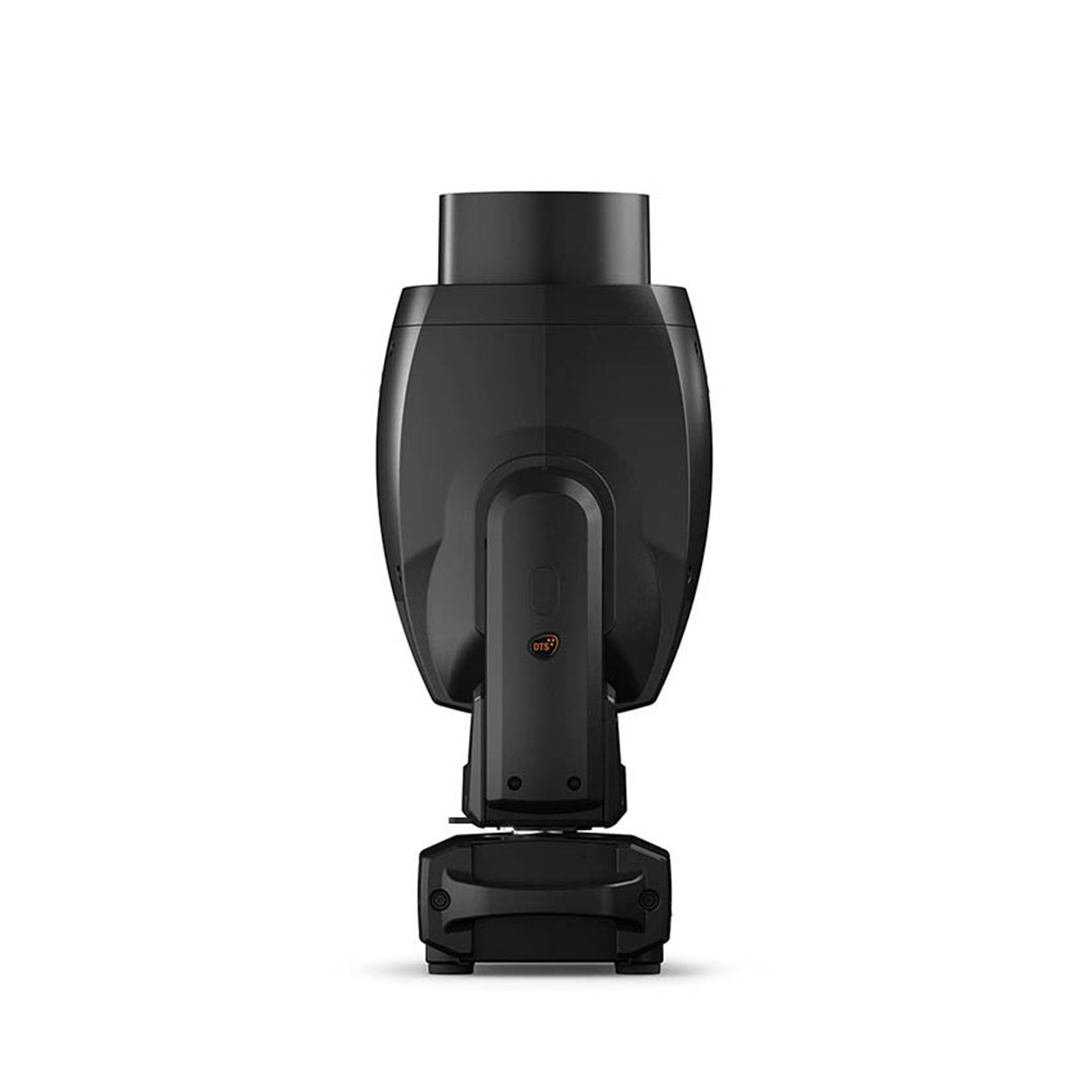

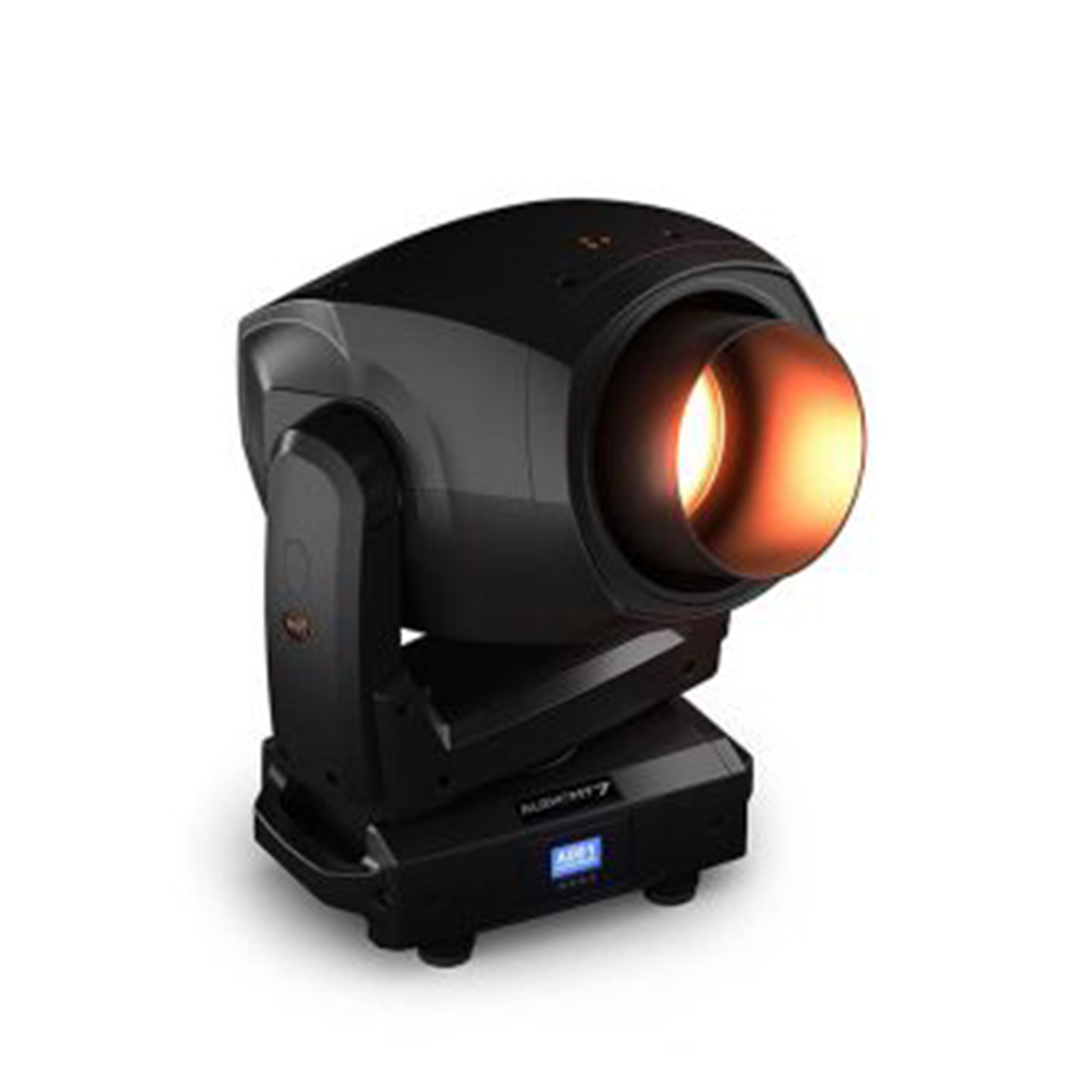

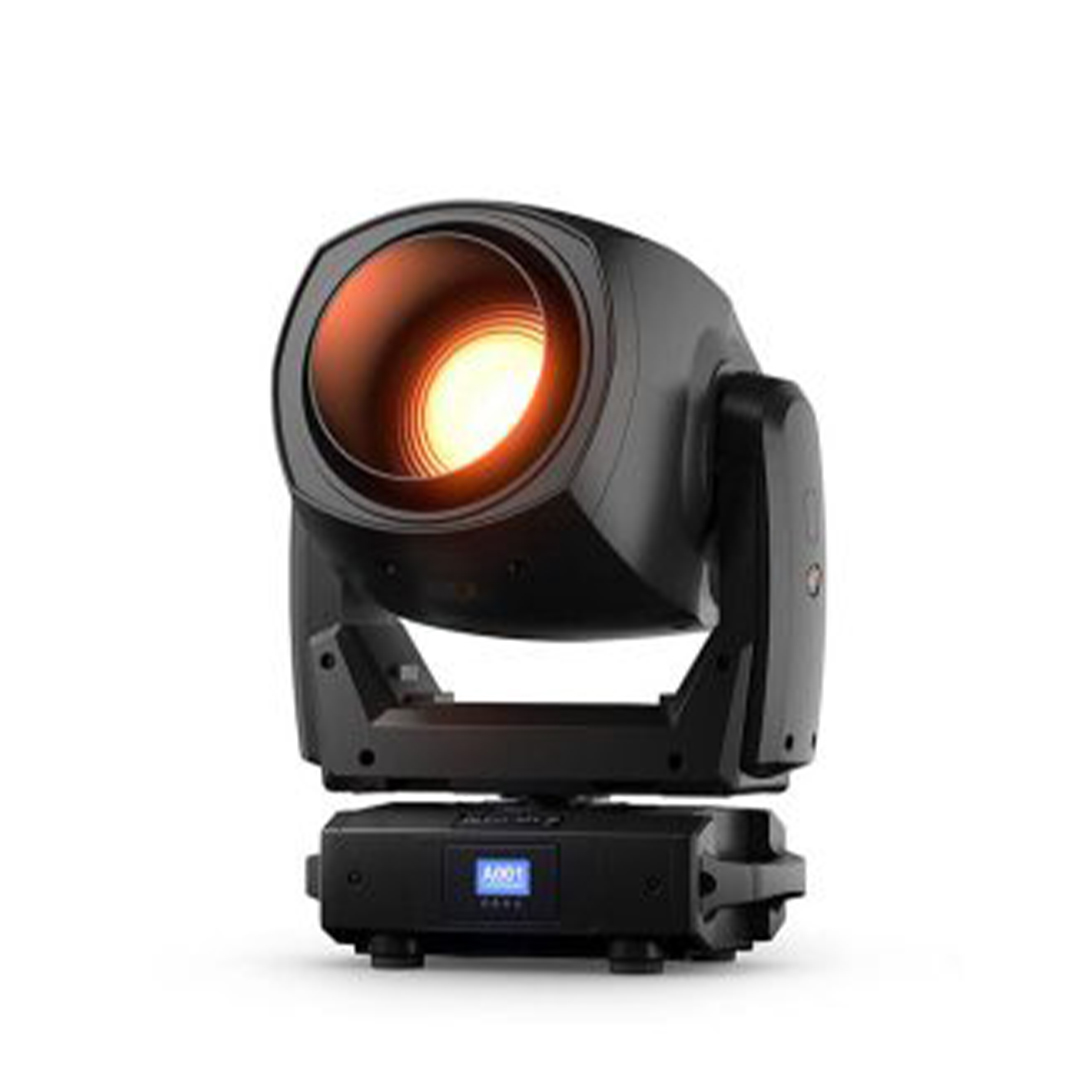

ALCHEMY 7 is a high performance LED wash moving head that guarantees high luminosity with a superior light quality, both in white lights in which accurate colour rendering is assured and other colours. Alchemy 7 is marked HQS (High Quality Spectrum-DTS trademark) to emphasize its ability to generate high quality whites and an extensive range of colours that provides beautiful pastel shades. Moreover, Alchemy 7’s tungsten emulation function was developed to accurately recreate that of halogen lamps. This projector was designed to perform in theatres and television where quietness, versatility and quality of light are fundamental.

INCREASED POWER

Alchemy’s excellent lighting performance granted by the 6-colour chip LED has been included into this fixture with a more powerful source. In fact, Alchemy 7 features an 800 W LED source that ensures a greater output, delivering up to 22,000 lumen. The optical group is characterized by a 15° to 50° linear zoom that projects an extra-bright light beam, evenly diffused at any zoom angle.

TOP-NOTCH WASH FRAMING SYSTEM

Alchemy 7 features a new 2-blade framing system operating on two discrete planes. This setup allows a complete curtain effect: each blade can fully enter the visual field to conveniently contain the light projection. In addition to the whole framing system rotation of 200° (+/- 100°), each blade can produce a 60° rotation (+/- 30°) ensuring maximum freedom of use.

QUIETER THAN A LIBRARY

The Silent operation mode is reconfirmed in Alchemy 7 to match the necessities of theatre and television. With an observed noise level of 37dBA @ 1 m in normal operation at full power, this projector makes less noise than a quiet library, where the standard volume equals to 40dBA.

Specifications

OUTPUT

Multi-chip LED source
LED source: 800 W
Lumen output: 22,000 lm
CRI: up to 98
TLCI: up to 96
LED lifespan: 20,000 hours (70% lumen output)

OPTICAL GROUP

15 – 50° linear zoom

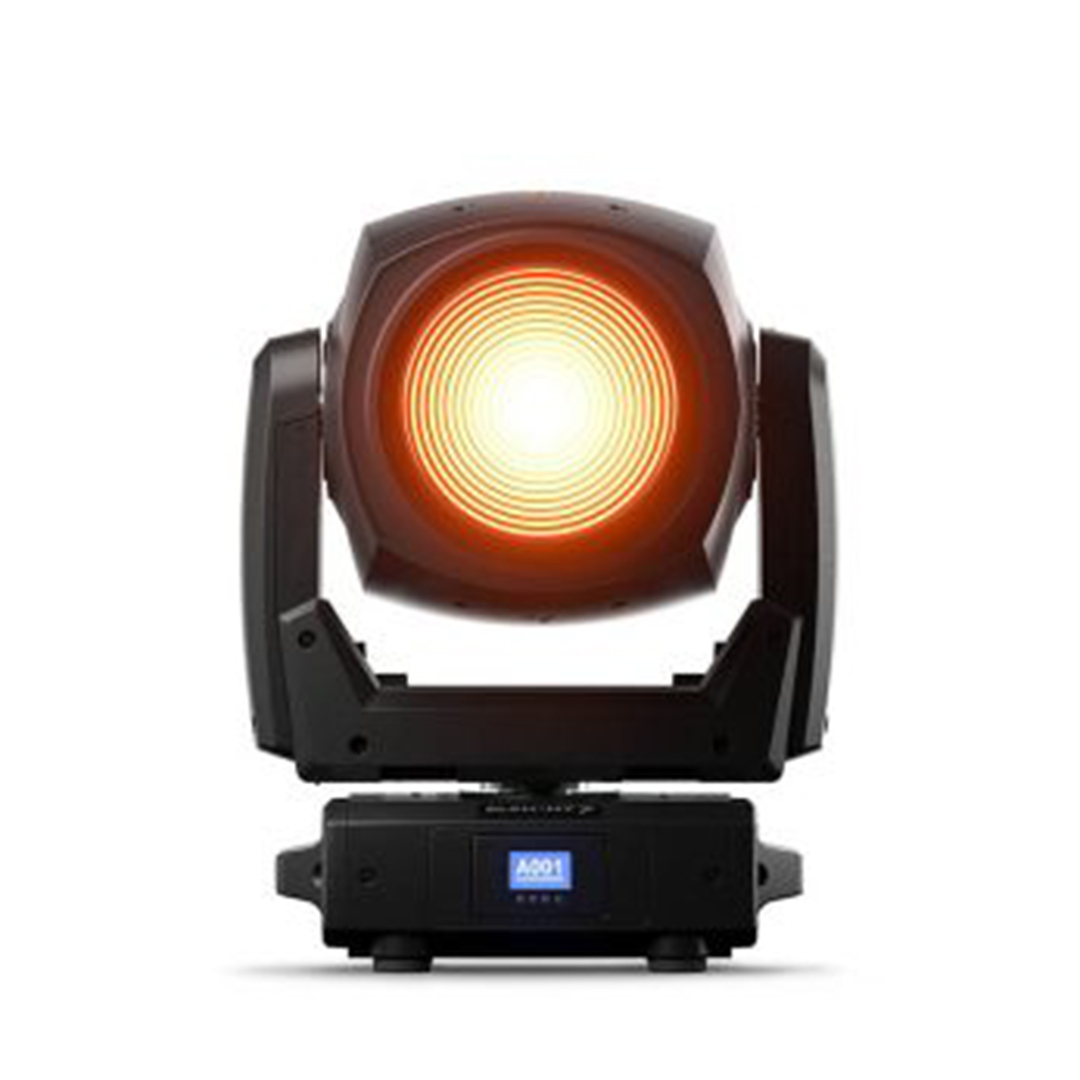

Ø 250 mm Fresnel lens
Indexable beam shaper (2:1 ratio) with endless continuous rotation
Heavy frost filter insertable via DMX
Retractable ‘top hat’

COLOUR & WHITE GENERATION

6-colour LED engine
Linear CCT (1,800 K – 10,000 K)
Linear ‘green saturation’
100 gel filters emulation:
- Linear crossfade from gel filters emulation to CCT whites
- Linear crossfade between emulated gel filters
- True colour of gel filters emulation at any CCT values
“Raw” RGBACL colour-mixing in ‘Advanced’ mode
Deep blue and Deep red filters (DMX-selectable)

ROTATING FRAMING SYSTEM

2-blade rotating framing system
Real “curtain” effect for each blade
60° rotation for each blade (+/- 30°)
180° full system rotation (+/- 90°)

DIMMER

Hi-Q Dimming technology
Tungsten Emulation function

CONTROL

LCD graphic display with 4 soft keys (“auto-flip” and “key-lock” functions available)
Art-Net 4, sACN, RDM/DMX 512 Protocols

Standard’ and ‘Silent’ operation odes

– Noise level at Silent mode: 38 dBA @ 1m (normal operation, full power)

Firmware updatable via DTS firmware uploader dongle
“Li-Fe” backup battery allows the use of the unit’s on-board display when it is not powered, besides ensuring a safe return and blockage of the top hat during shut down
