Description
THE ULTRA COMPACT FRESNEL PROJECTOR: HIGH LUMINOSITY WITH ONLY 25 W

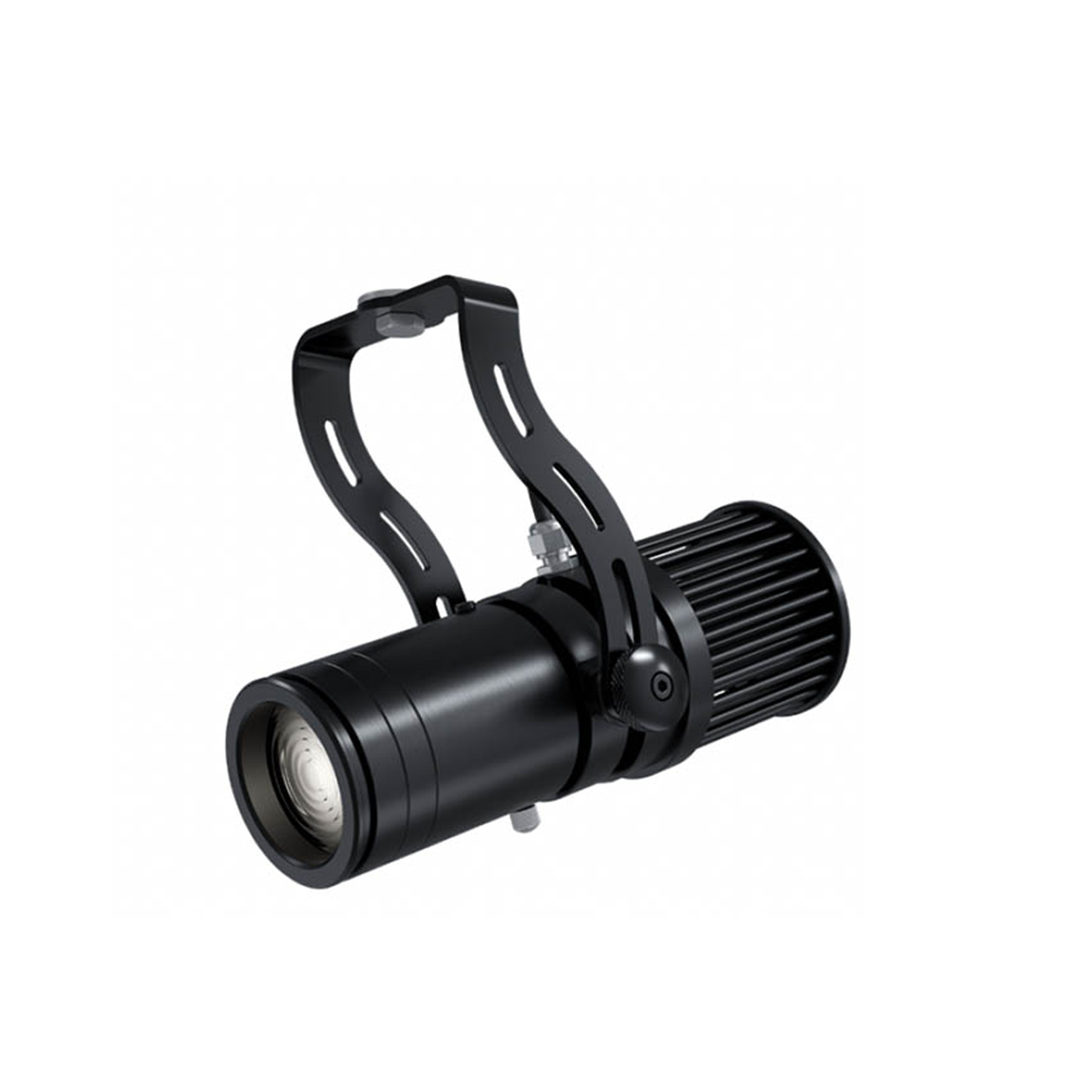

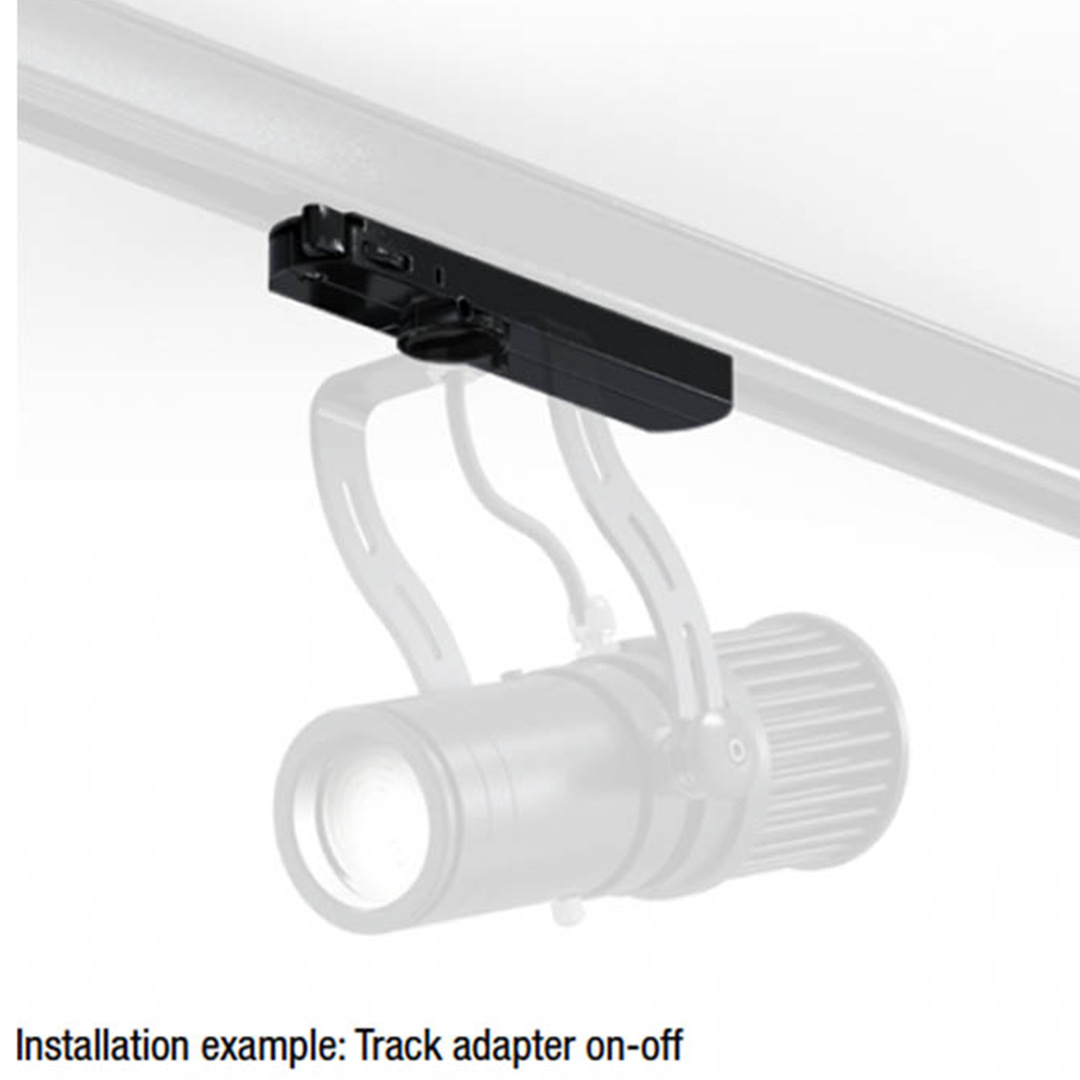

ARTEMIO FRESNEL is a LED-based ultra compact projector equipped with a single high-power 25 W white LED source. ARTEMIO FRESNEL features a Ø 50 mm Fresnel lens and a 14° to 42° linear zoom. The unit is powered by DRIVENET series external PSU. Thanks to a dedicated kit is possible to instal the fixture on electrified rails.
Specifications
Light Source
Type
Single high-power White 3000K LED
Light Source Count
1
Light Source Lifetime
50,000 h
Lumen Output
1830
Colour Generation
3000k
Also available with 4000K(03.ART008) or 5000K(03.ART010) LED
Optical group
Ø 50 mm Fresnel lens
14° – 42° linear zoom
Control
Control Via the External PSU:
– DRIVENET 28C DIN @ 48Vdc
– DRIVENET 28 EZ / 416 / 832 (full-range 100-240Vac 50-60 Hz)
– DRIVENET 1664 (range 180-240Vac 50-60 Hz)
– External 36Vdc 700mA max Constant Current PSU
Power consumption: 25W max
Connectors
Power supply: 2 x 0,5 mm2 cable (2 m length)
Thermal Specifications
Cooling convection only
min. ambient temperature (Ta min.)
-10 °C / 14 °F
max. operating temperature
40°C / 104°F
Location
Outdoor permanent
Construction
Housing Colour
Black
Housing Material
Aluminum
Protection Rating
IP 20
Dimensions & Weight
Length
201.3 mm / 7.93 in
Height
157.35 mm / 6.19 in
Width
110 mm / 4.33 in
Weight
0.9 kg / 2 lbs
