The KNV system from GLP brings a whole new dynamic to entertainment lighting, groundbreaking in both design and functionality. The four variants, the KNV Cube,  KNV Arc, KNV Line and KNV Dot all work as independent units or can be seamlessly combined together, providing a whole new level of versatility and freedom in design, all in an outdoor rated housing.

A multi-functional fixture, the KNV Line takes the concept of physical flexibility and combines it with the raw power of the KNV. Able to run individually, or combined together, this new KNV addition is the perfect answer for small, compact locations right up to large format design integration.

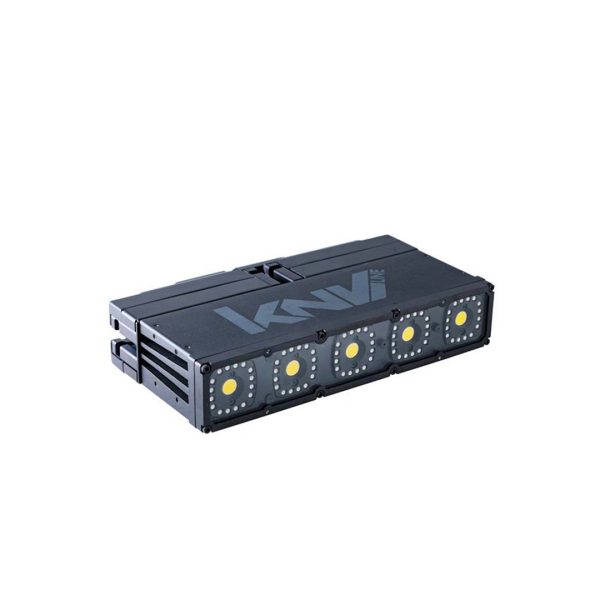

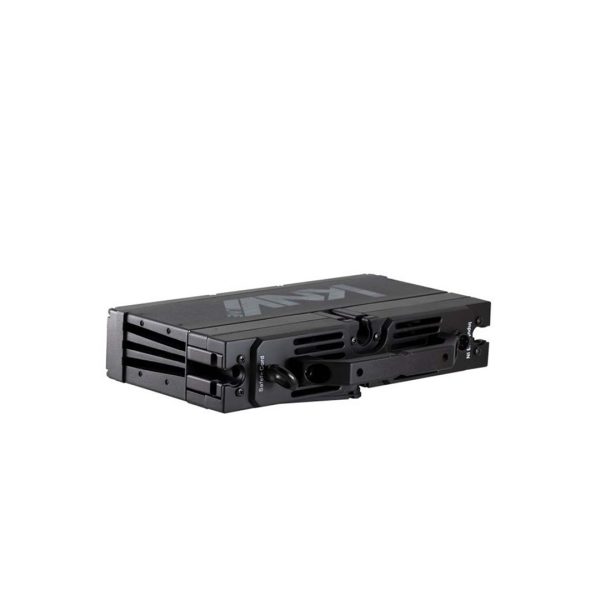

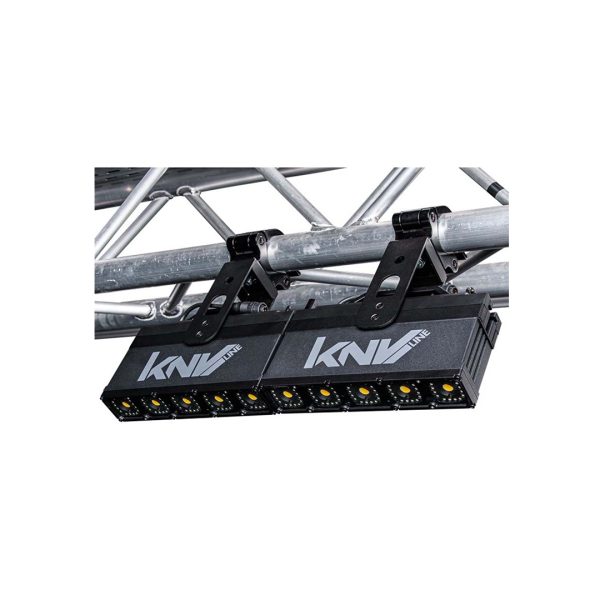

With 5 high powered RGBW pixels in a simple linear format, the KNV Line has the ability to join seamlessly with the KNV Cube and KNV Arc. It features an attachment point on each side allowing it to couple directly to other KNV units and seamlessly extend both simple and complex structures, in cooperation with the KNV Cube and KNV Arc. Each KNV Line contains 5 of the same RGBW pixels as featured on other units in the KNV range with full color mixing, dimming and shuttering power, with complete pixel mapping capabilities.

Whether adding a small sliver of an extension, creating a juxtaposed design structure, or a extending a simple linear length, the KNV Line brings great flexibility to any lighting and set design.

The KNV has an immense output when combining its elements, with each line unit capable of producing 10,000 lumens, and a full size KNV Cube producing more than 50,000 lumens. Utilizing its power to the max, the fixture has been designed to output continuously at full output. Creating the brightest blinder and wash light effects, without ever thermalling out or reducing its output level.

All KNV versions are IP54 rated. Ready for those outdoor summer festivals and all the rain they traditionally bring! But not only that, the IP54 rating allows the units to be used on events year round, in even the toughest of weather conditions.

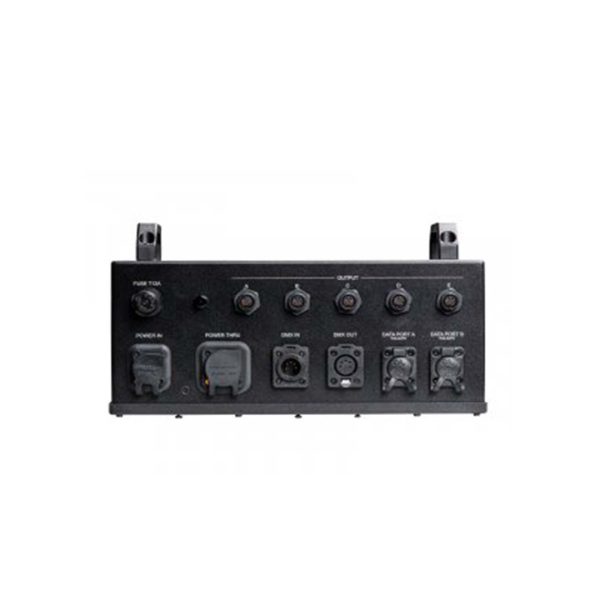

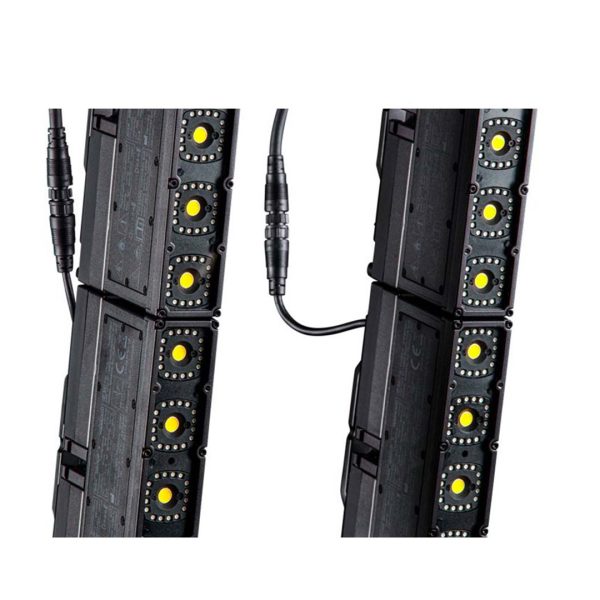

The KNV Line and KNV Dot are powered from an external power supply reducing the size and weight of each unit and increasing their ability to be placed in the tiniest, tucked away locations. KNV units are daisy chained using industry standard 4 pin XLR cables that carry both the power and data signals.

Each power supply unit can run up to 25 pixels, with any combination of KNV Line or KNV Dot able to connect together, up to the maximum pixel count.

Whether used stand alone or combined with other KNV fixtures, the KNV Line and KNV Dot offer some powerful design options in a multitude of applications.

All KNV units feature Neutrik True1 power in and out connectors, along with Ethernet in and out for data. A full range of PWM settings ensure flicker free operation in any setting, along with the option to operate the LED’s in either 8 or 16 bit.

The KNV from GLP; a new mighty powerhouse.

Compare
SKU: KNVLINE Categories: ,

Description

AT A GLANCE

Light Source

  • 5 hyper bright 30 watt, white LEDs, each surrounded by 16 RGB LEDs
  • 11,000 lm

Control

  • Protocols: DMX 512, ArtNet, sACN
  • Mode (TBC): 10, 17, 37, 83, 29, 102, 202
  • Variable PWM, up to 38khz

 Effects

  • 16 bit RGBW color
  • 16 bit electronic dimming
  • Variable strobe: intensity,flash rate, flash duration
  • 3 layer FX engine

Specifications

KNV light source

Power Pixel
  • 1 x 30 W Hyper White
Power Pixel count
5

Control

Control Modes
  • Normal
  • Compressed
  • Pixel-Mapping
Display
  • illuminated graphic LCD
  • self charging buffer battery
  • backlit buttons
Protocol
  • Art-Net
  • DMX (USITT DMX512-A)
  • RDM (ANSI/ESTA E1.20)
  • sACN
Cooling
  • temperature controlled
  • overheating protection
Software Update
  • DMX link
Dimming Curves
  • linear
  • soft
Fan Modes
  • regulated
  • high
  • medium
  • low
Setting and addressing
  • control panel with backlit graphic display
  • DMX
  • RDM

Connectors

Signal connection
  • XLR 5-Pin
  • etherCON
  • In/Out
Power Input
  • Neutrik powerCON TRUE1

Operating Condtions

Mains voltage
  • 100 – 240 VAC / 50 – 60 Hz
Power (Watt @ 230V)
170 W
Maximum ambient temperature
  • 40°C / 104°F
Operating Position
  • any
Protection Rating (IP)
  • 54
EEC
  • A
EEI
0,218
Ec (kWh/1.000h)
742

Mounting Options

Safety wire attachment
  • 1 eyelet
Mounting
  • KNV Connector
  • eyelets for safety cable

Shipping

Single fixture
  • cardboard
Tourpack
  • Flight Case

Housing Colors

Standard colors
  • black

Dimensions & Weight

Height (head vertical)
165 mm / 6.5 in
Width (across yoke)
250 mm / 9.84 in
Length
50 mm / 1.97 in
Weight
1,8 kg / 3.97 in
