Description

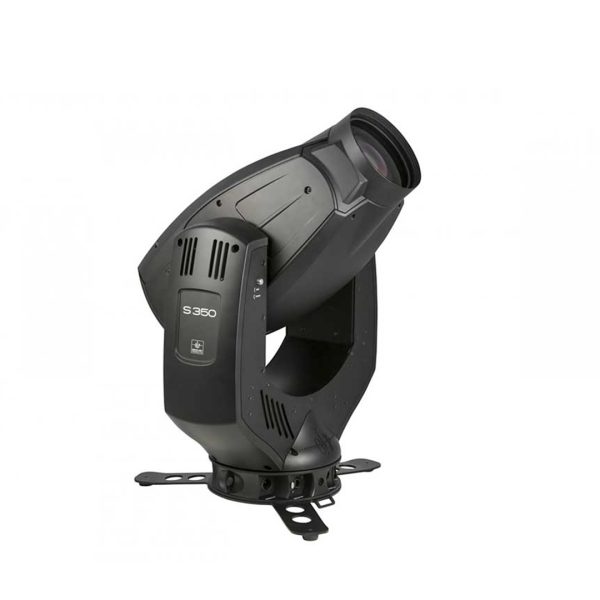

The impression S350 offers an unparalleled feature set for its size. A highly efficient optical system uses a powerful 6000 Kelvin white LED engine at its core, producing bright clarity in the projected beam. Smooth dimming using a brand new 16 bit, 3D dimming algorithm and even field distribution along with clear image projection are all standard in the S350. While maintaining a significantly brighter output than typical 700 W discharge lamp sources.

With near silent operation, the S350 is suitable for every kind of venue and event that needs a powerful fixture in a small and subtle housing.

The color capability of the S350 comes from a full CMY color mixing system, supported by a fixed color wheel with correction filters. Beam control begins with a 4 blade framing system with each blade capable of closing across the entire beam, all within a rotating gate. This is supported by a full beam rotatable and repositionable animation wheel, alongside a rotating gobo wheel with 7 positions plus open and a static gobo wheel with 10 positions plus open, and a rotating prism. Also included are 2 selectable frost filters, giving the option of both light and heavy frost effects. Beam control capabilities include motorized focus and a zoom that gives a wide range of 8° to 41°.

The S350 features GLP’s unique baseless design with full 16 bit pan and tilt movement, full range 16 bit dimming, and electronic shutter capability, all with a low weight of just 56 lbs. (25.4 kg). The S350 also features an inbuilt battery for fixture setup, an auto sensing power supply, and the option to have wireless DMX control.

The impression S350 spot fixture is a class leader in all areas.

LED Light Source

350 Watt White Light LED Engine 8,900 Lumen Output Whitepoint 6,000 Kelvin

Perfect White

Perfect Natural Spectrum Super High Color Rendering Index of 90+ Advanced CMY Colormixing, CW, CTC

Dynamic Effects

2 x Gobowheel, 1 x Animationwheel, 1 x Prism Linear soft to heavy Frost 8 to 42 degrees Zoom

Framing

Precise Beam Control 4 Blade Framing System, 0 – 100 %

TECHNICAL SPECIFICATIONS

Light Source

Lamp type: LED 350 W
Lifetime: 20,000 hours
Color temperature: 6000 Kelvin
CRI: >90
TLCI(Qa): 90
CQS: 90
Rg: 96
Rf: 87
Light output: 7,226 lumens (narrow 8°) – 8,881 lumens (medium) – 8,928 lumens (wide 41°)

Effects

4 blade framing system, each having complete beam coverage
Rotating gate through 90°
Dimmer: 3-D dimming algorithm
Shutter: electronic shutter
Effect wheel: prism
Frost: 2 variable filters for light and heavy frost
Gobo wheel 1
- 7 replaceable, rotating and indexable gobos
Gobo wheel 2
- 10 fixed gobos
Animation wheel with rotation and orientation control
Color wheel
- 10 color filters
- Full CTO 3200 Kelvin
- 1/4 CTO 4600 Kelvin
- CTB 9000 Kelvin
Color mixing
- CMY color mixing

Connectors

DMX data
- XLR 5-pin in/out
- XLR 3-pin in/out
Mains power
- Neutrik TRUE1 input

Power

(Watt @ 230 V): 550 W

Operating Conditions

Maximum ambient temperature: 115°F (45°C)

Mounting Options

Upright: removable tripod base (supplied) with brackets for ratchet belt
Hanging: 2 x M10 socket for half coupler, or other clamp
- Omega brackets (optional)
2 attachment points for safety wire
Any orientation

Optical System
