The KNV system from GLP brings a whole new dynamic to entertainment lighting, groundbreaking in both design and functionality. The four variants, the KNV Cube,  KNV Arc, KNV Line and KNV Dot all work as independent units or can be seamlessly combined together. Providing a whole new level of versatility and freedom in design, all in an outdoor rated housing.

Compare
SKU: GLPKNVDOT Categories: ,

Description

AT A GLANCE

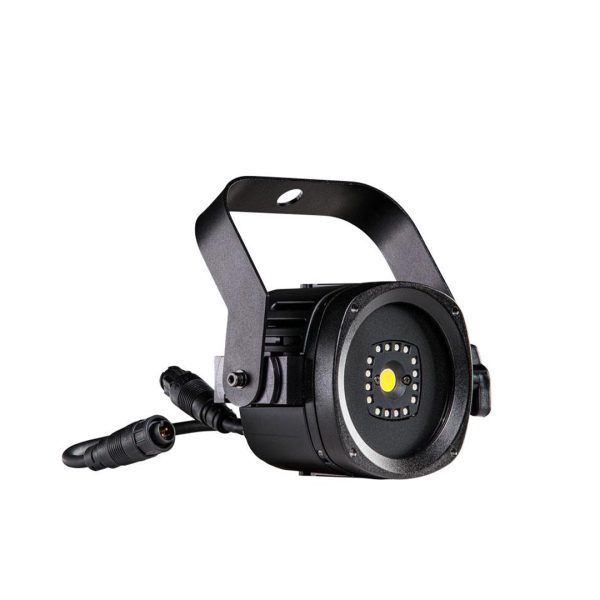

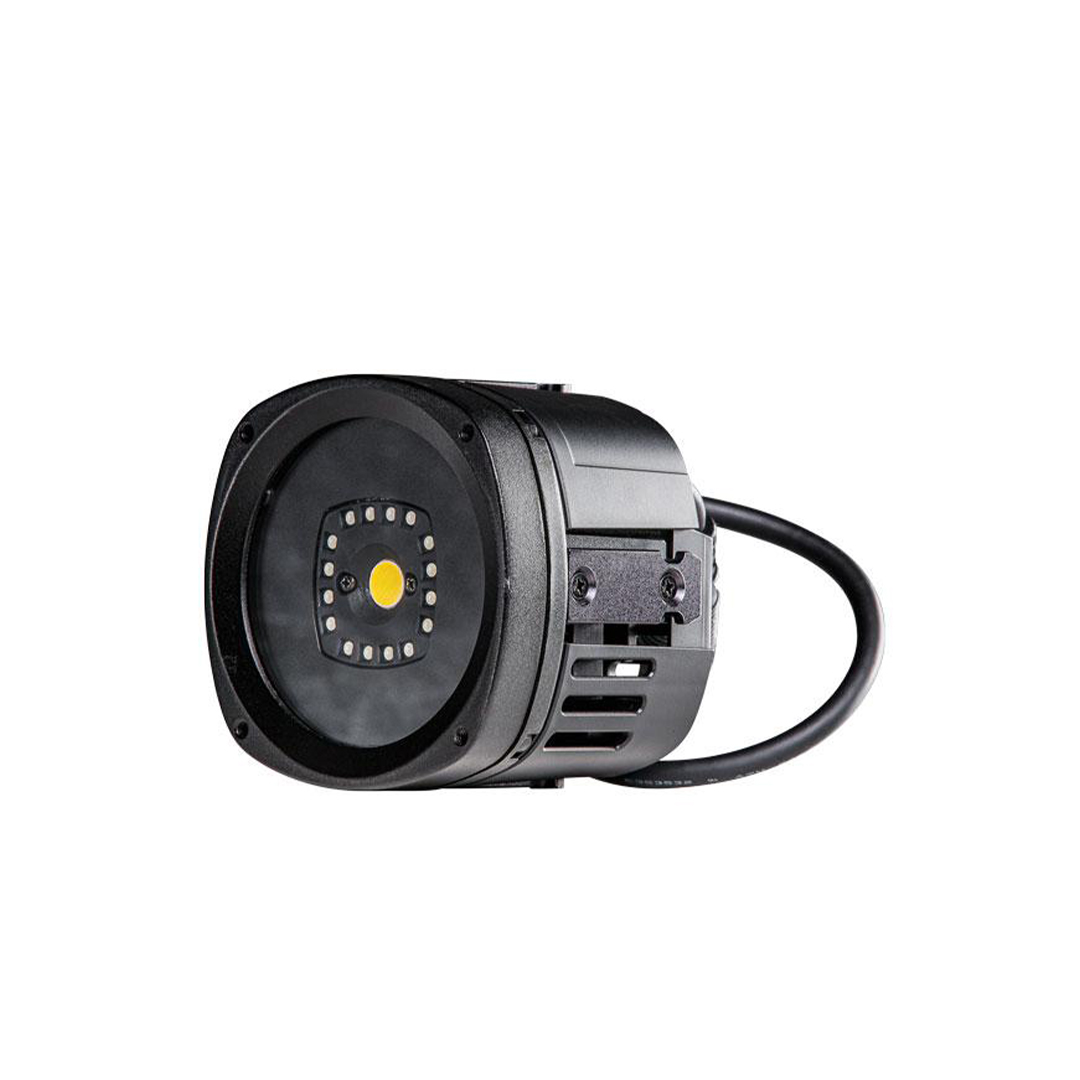

A multi-functional fixture, the KNV Dot takes the concept of physical flexibility and combines it with the raw power of the KNV. Able to run individually, or combined together, this new addition to the KNV is the perfect answer for small, compact locations right up to large format design integration.

The KNV Dot is a singular pixel source containing a super bright white LED, encircled by 16 RGBW LED’s with full color mixing capability and a powerful output for a smaller point source. Independent control over both the white LED’s and the RGB LED’s, allows for the creation of a vast array of effects,  with both a full color pallet and added punch when you need it.  It is both compact and lightweight allowing it to be placed in the smallest spaces, and easily built into set pieces and staging risers. The KNV Dot is also perfect to hang in locations where multiple units are required for greater coverage, but without breaking the bank.

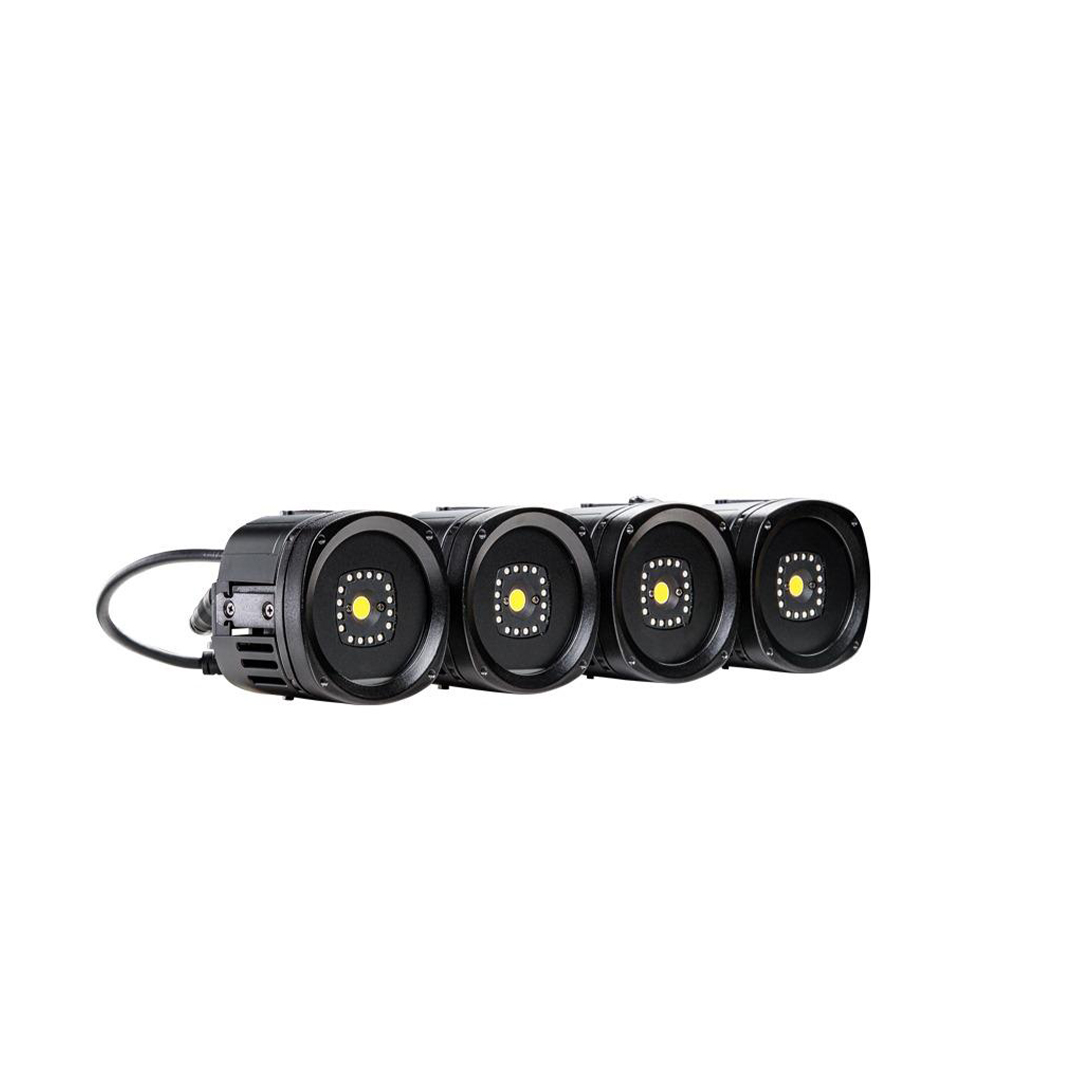

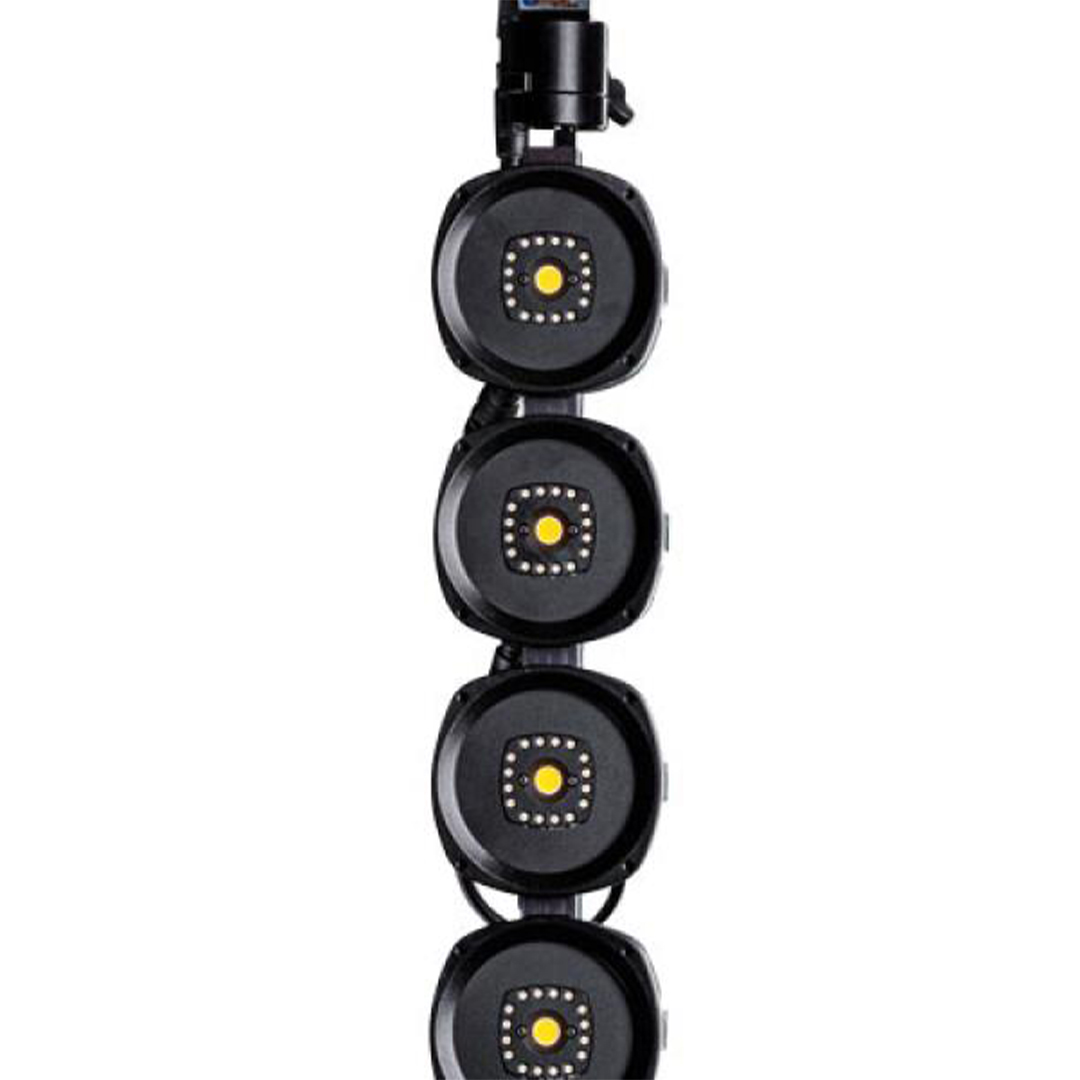

The KNV Dot housing includes in-built mounting brackets of the same size and design that are used with the X4 atom fixture, allowing seamless integration with any X4 atom units. The KNV Dot can easily be mounted individually, and benefits from a wealth of X4 atom mounting accessories that are already available in the market. The KNV Arc and Cube connect together seamlessly and the KNV Dot compliments this matching the size of a cube in a 3×3 configuration.

The KNV has an immense output when combining its elements, with each Dot unit capable of producing 2,000 lumens, and a full size KNV Cube producing more than 50,000 lumens. Utilizing its power to the max, the fixture has been designed to output continuously at full output. Creating the brightest blinder and wash light effects, without ever thermalling out or reducing its output level.

All KNV versions are IP54 rated. Ready for those outdoor summer festivals and all the rain they traditionally bring! But not only that, the IP54 rating allows the units to be used on events year round, in even the toughest of weather conditions.

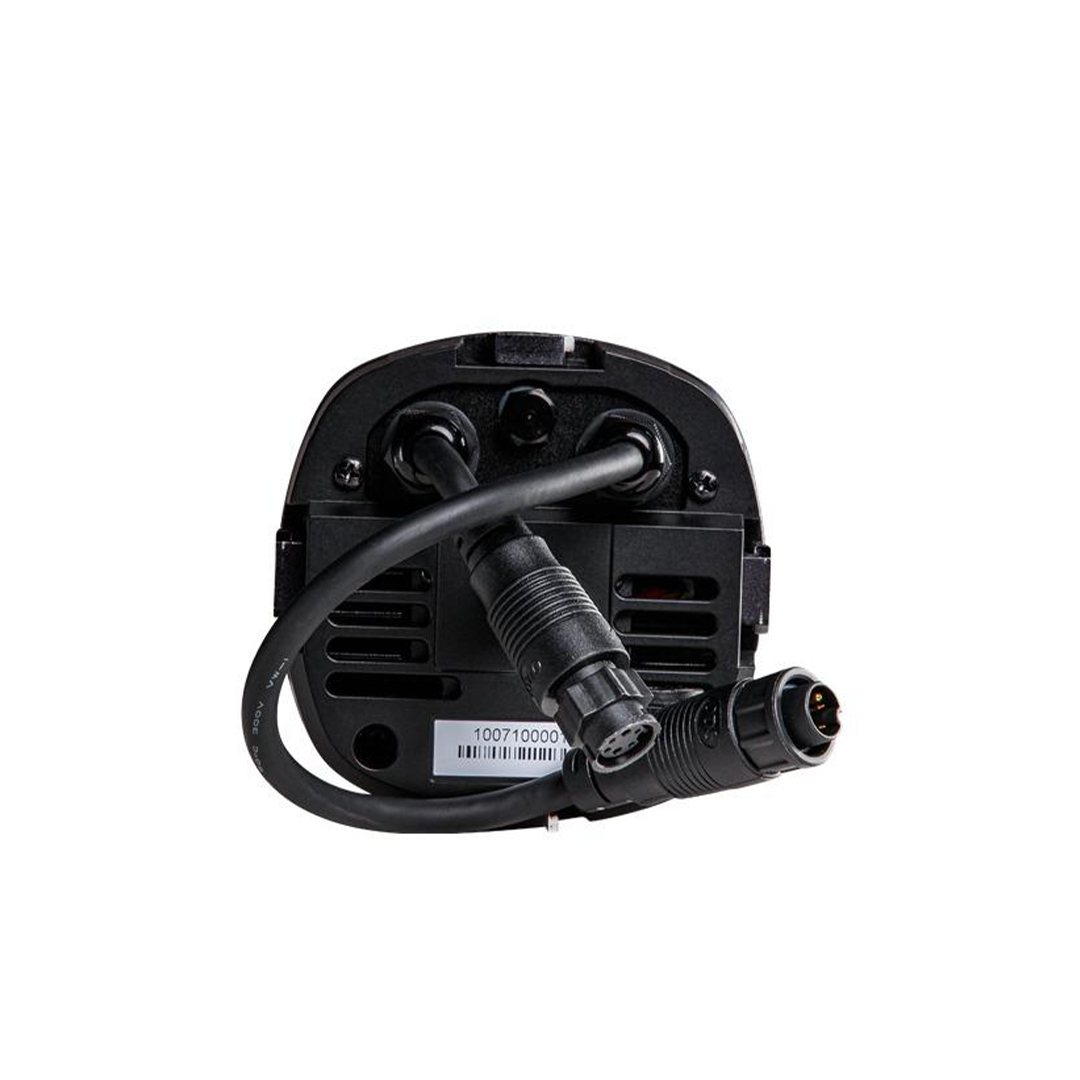

The KNV Dot and KNV Line fixtures are powered from an external power supply reducing the size and weight of each unit and increasing their ability to be placed in the tiniest, tucked away locations. KNV Dot units are daisy chained using industry standard 4 pin XLR cables that carry both the power and data signals.

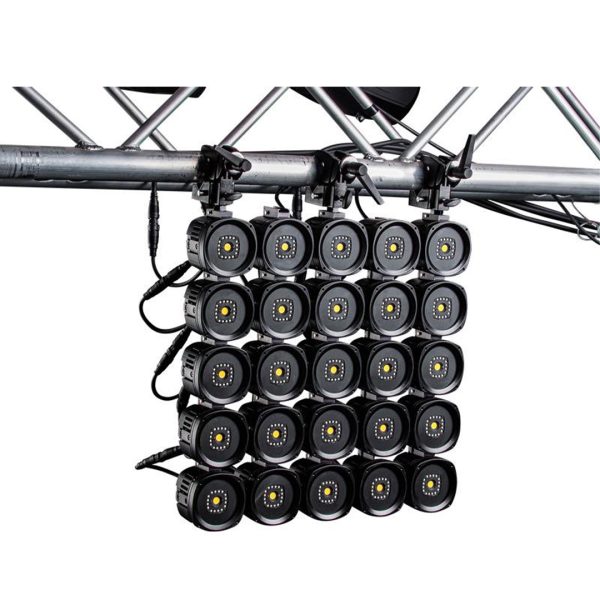

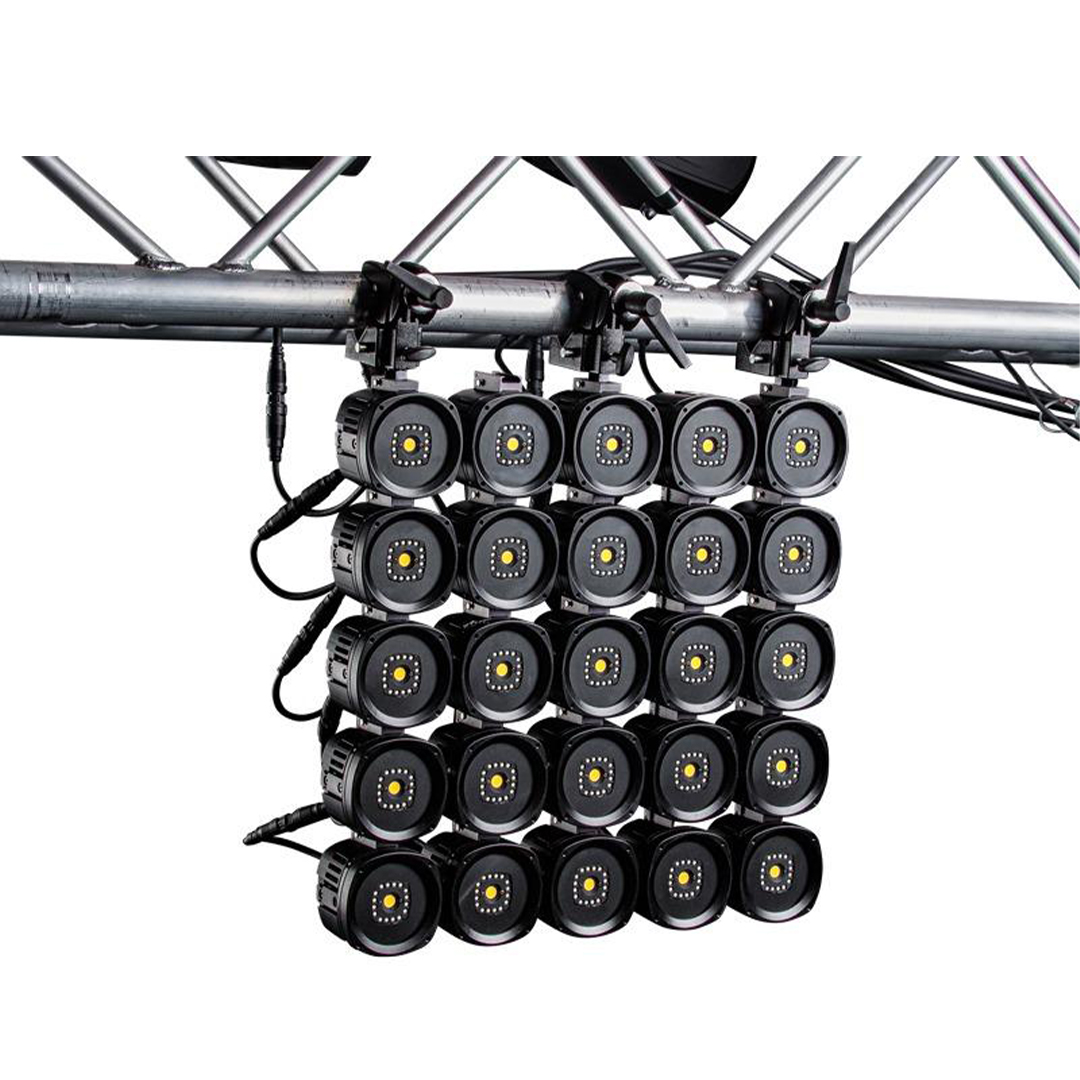

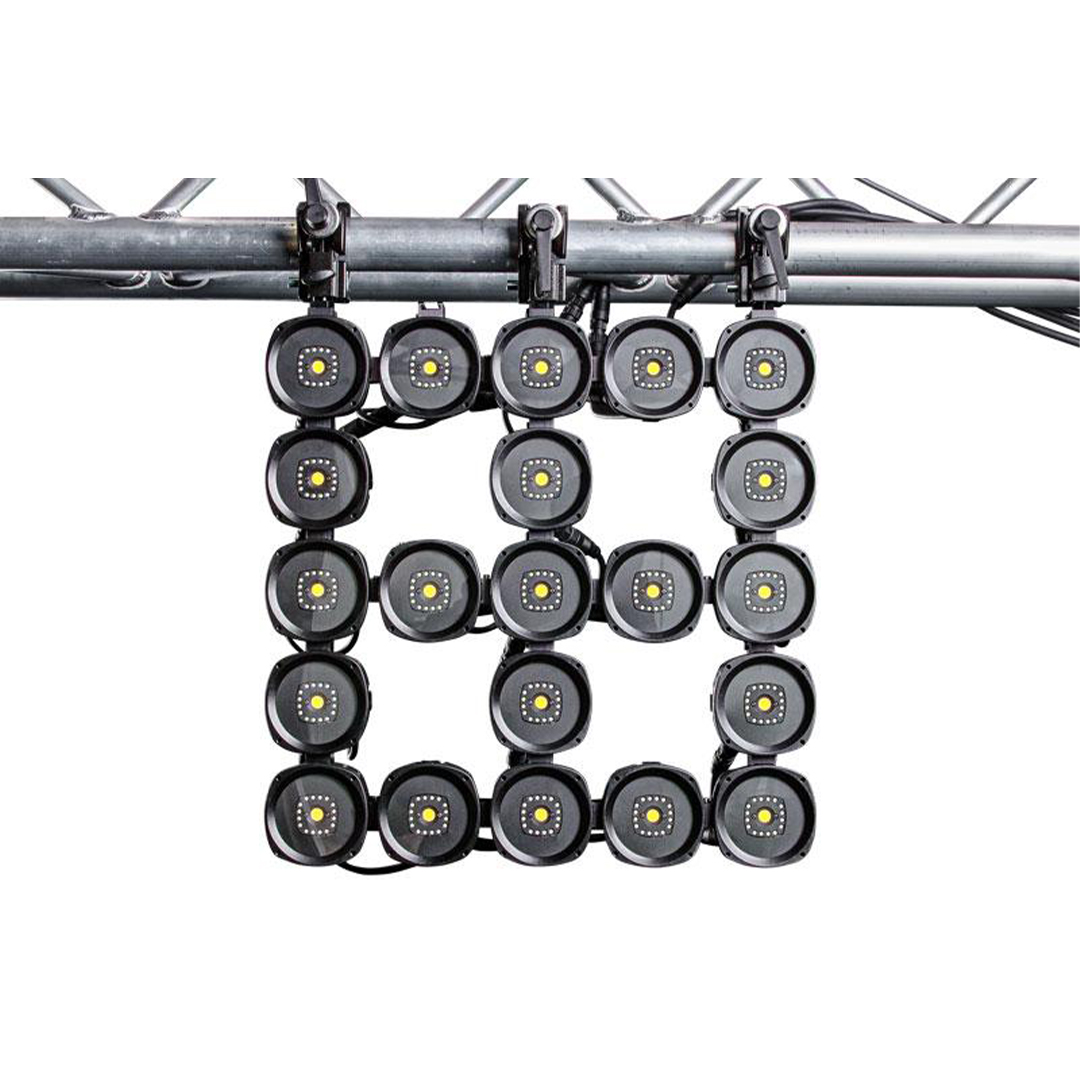

Each power supply unit can run up to 25 pixels, with any combination of KNV Line or KNV Dot fixtures able to connect together, up to the maximum pixel count.

Whether used stand alone or combined with other KNV fixtures, the KNV Line and KNV Dot offer some powerful design options in a multitude of applications.

The KNV from GLP; a new mighty powerhouse.

Specifications

KNV light source

Power Pixel
  • 1 x 30 W Hyper White
  • 16 x 0,5 W RGB
Power Pixel count
1

Control

Control Modes
  • Normal
  • Compressed
  • Pixel-Mapping
Display
  • illuminated graphic LCD
  • self charging buffer battery
  • backlit buttons
Protocol
  • Art-Net
  • DMX (USITT DMX512-A)
  • RDM (ANSI/ESTA E1.20)
  • sACN
Cooling
  • temperature controlled
  • overheating protection
Software Update
  • DMX link
Dimming Curves
  • linear
  • soft
Fan Modes
  • regulated
  • high
  • medium
  • low
Setting and addressing
  • control panel with backlit graphic display
  • DMX
  • RDM

Connectors

Signal connection
  • XLR 5-Pin
  • etherCON
  • In/Out
Power Input
  • Neutrik powerCON TRUE1
  • eventCON
  • In/Out

Operating Condtions

Mains voltage
  • 100 – 240 VAC / 50 – 60 Hz
Power (Watt @ 230V)
34 W
Maximum ambient temperature
  • 40°C / 104°F
Operating Position
  • any
Protection Rating (IP)
  • 54
EEC
  • A
EEI
0,218
Ec (kWh/1.000h)
742

Mounting Options

Mounting
  • eyelets for safety cable

Shipping

Single fixture
  • cardboard
Tourpack
  • Flight Case

Housing Colors

Standard colors
  • black

Dimensions & Weight

Height (head vertical)
78 mm / 3.07 in
Width (across yoke)
98 mm / 3.86 in
Length
98 mm / 3.86 in
Weight
0,65 kg / 1.43 in
