Description

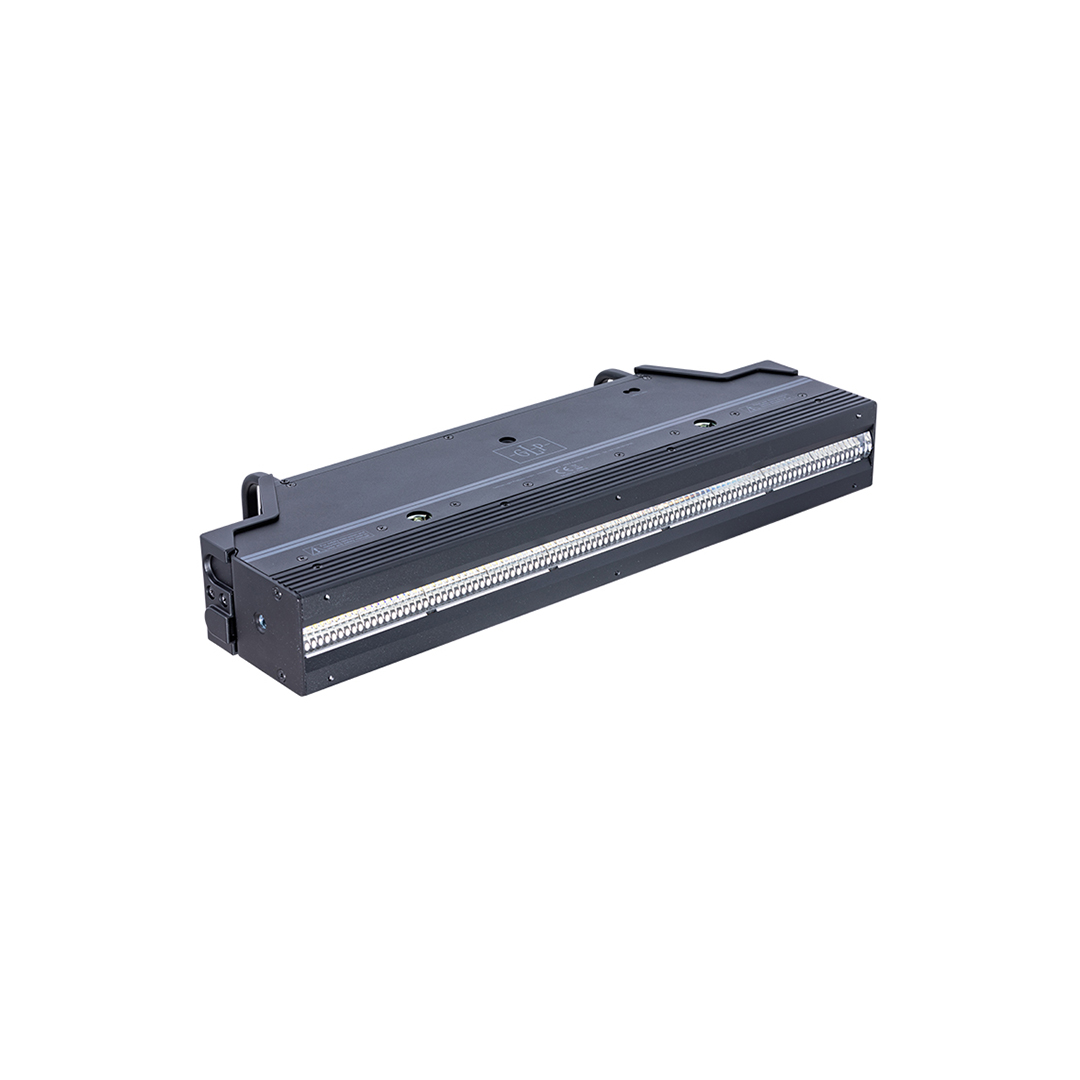

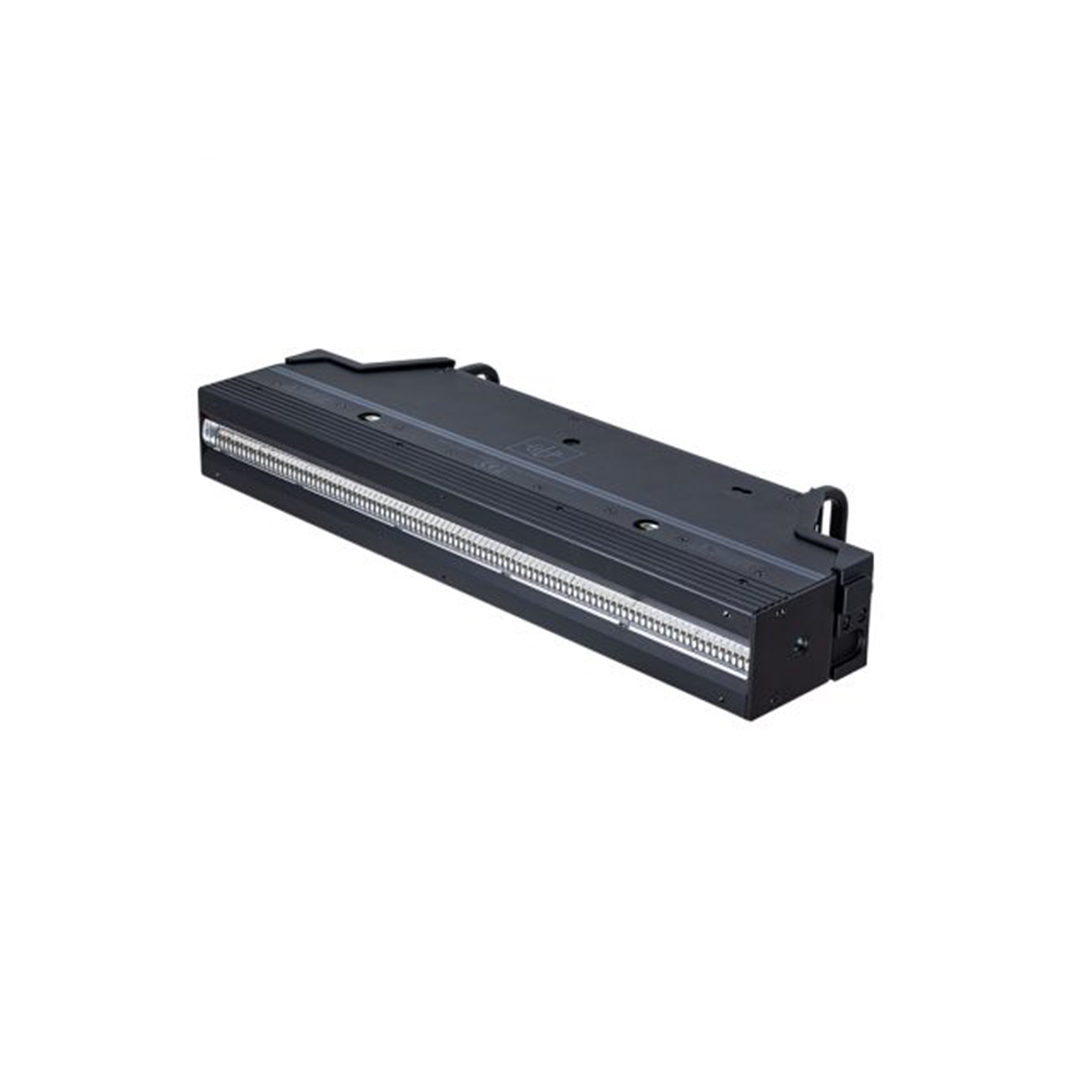

The JDC Line offers an incredibly bright RGB Pixel mapping effect mixed by a special 500 mm lens tube which gives a unique look and stunning new design options. The fixture features a 25 mm pixel pitch meaning pixels appear seamlessly, next to each other. Each pixel segment can be split into upper and lower part offering additional flexibility in creative options.
The second part of the fixture is a powerful strobe tube, similar in style and design to the renowned JDC1’s powerful center beam of LEDs. The JDC Line’s LEDs emit into the same lens tube as the RGB Pixel Mapping LEDs and also offer a segmentation of 25 mm pixel sections for stunning dynamic effects.
The idea to channel the powerful strobe and the RGB output through the same lens tube creates an incredible look and avoids seeing ugly separate LEDs or light reflections from white face LEDs. The JDC Line is available in two different versions: The JDC Line 500 offers a width of 50 cm and the JDC Line 1000 a width of 1 m.
Pixel Mapping
individually controllable LED-segments
Hybrid Strobe
powerful White Light Strobe combined with RGB Pixel Line
TECHNICAL SPECIFICATIONS
Light Source
- Dual mode – high powered line of white light LEDs surrounded by 2 x RGB lines
RGB Lines
- JDC Line 500: 200 RGB LEDs
- JDC Line 1000: 400 RGB LEDs
White Line
- JDC Line 500: 100 White LEDs
- JDC Line 1000: 200 White LEDs
Control
- Display
- Illuminated graphic LCD
- Self charging buffer battery
- Protocol
- DMX-512
- sACN
- Artnet
- Cooling
- Temperature controlled
- Overheating protection

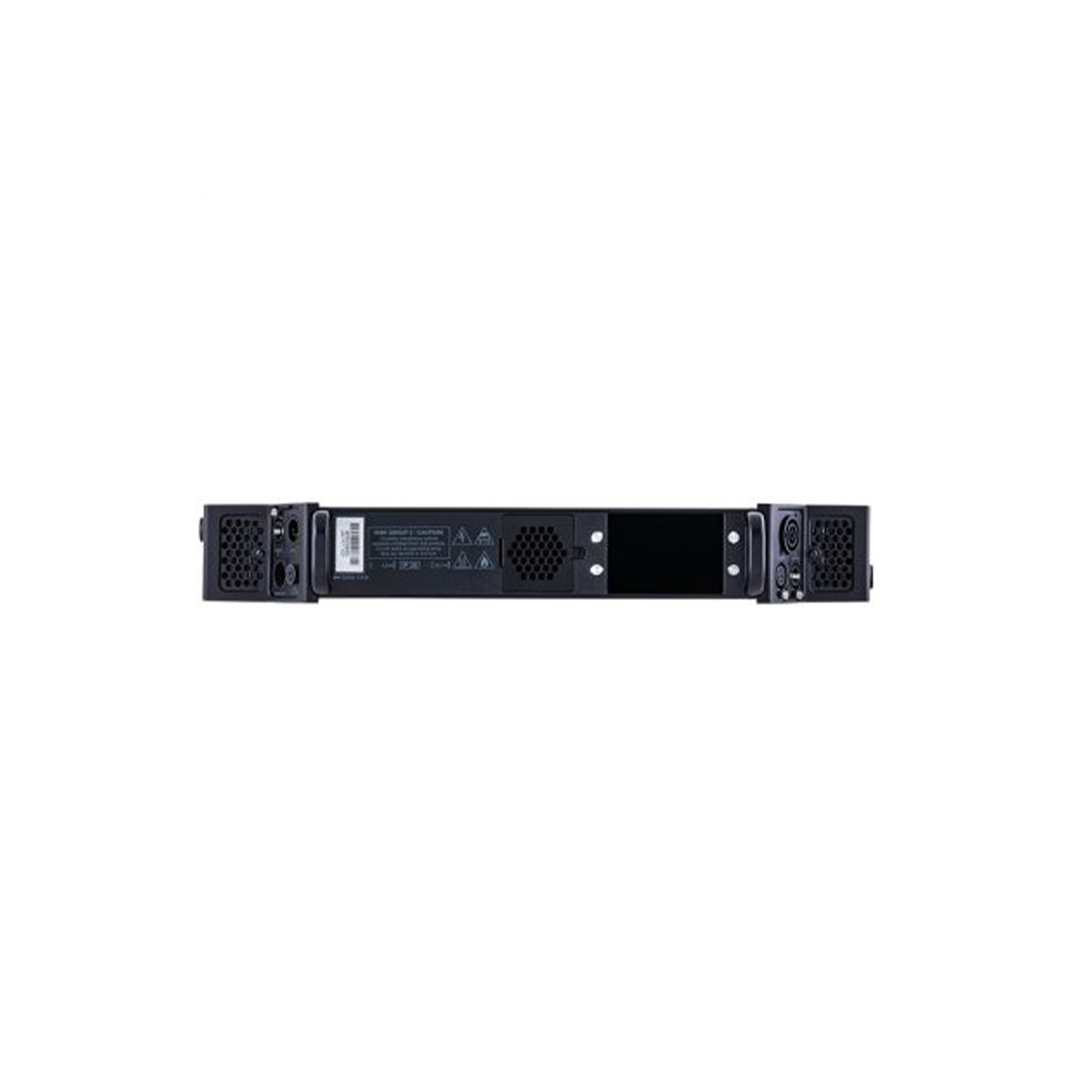

Connectors
- DMX data
- XLR 5-pin in/out
- Ethercon in/out
- Mains power
- Neutrik TRUE1 input
Power Supply
- Mains voltage: Auto-sensing 100-240 VAC / 50-60 Hz
- Power (Watt)
- JDC Line 500: 700 W
- JDC Line 1000: 1,400 W
Operating Conditions
- Maximum ambient temperature: 115°F (45°C)
- Minimum ambient temperature: 40°F (5°C)
- IP20

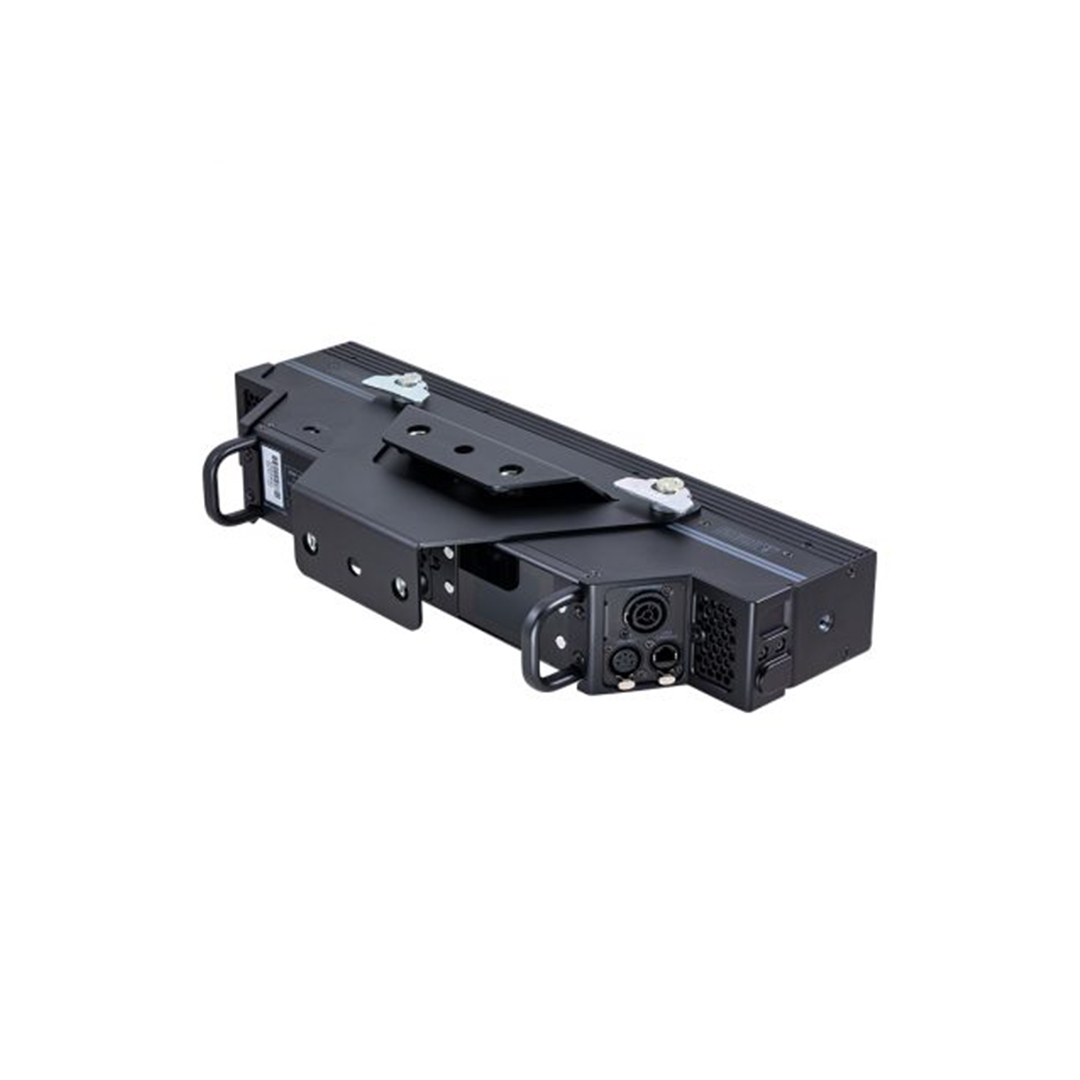

Mounting Options
- Omega bracket attachment mounts directly to top or bottom of fixture
- Attachment points for safety wire
- Any orientation
Shipping
- Cardboard box
- Flight case for 12 x JDC Line 500 / 6 x JDC Line 1000 or any combination
Housing Colors
- Standard color is black
- For other colors please contact sales department
Dimensions
- (L x W x H): head vertical
- JDC Line 500:
- 7.9 in. x 20 in. x 2.9 in. (20.1 cm x 50.7 cm x 7.4 cm)
- JDC Line 1000:
- 7.9 in. x 40 in. x 2.9 in. (7.9 cm x 100.7 cm x 7.4 cm)
Net Weight
- JDC Line 500: 13.2 lbs. (6 kg)
- JDC Line 1000: 26.5 lbs. (12 kg)
