• USB Connection to PC or Mac
  • Windows, Linux or OSX
  • Programming & Playback Buttons
  • 8 Encoders, 12 Faders
  • 2 Direct DMX Outputs
  • Addition of Previous Page, Group and four Macro Buttons
  • Dimmable LED Desk Lamp
  • 64 Universes
  • In-built Power Supply
  • In-built USB Hub
  • Audio Input
  • Fits Hand Luggage Restrictions
  • Improved Styling
Compare
SKU: CS02000015 Category:

Description

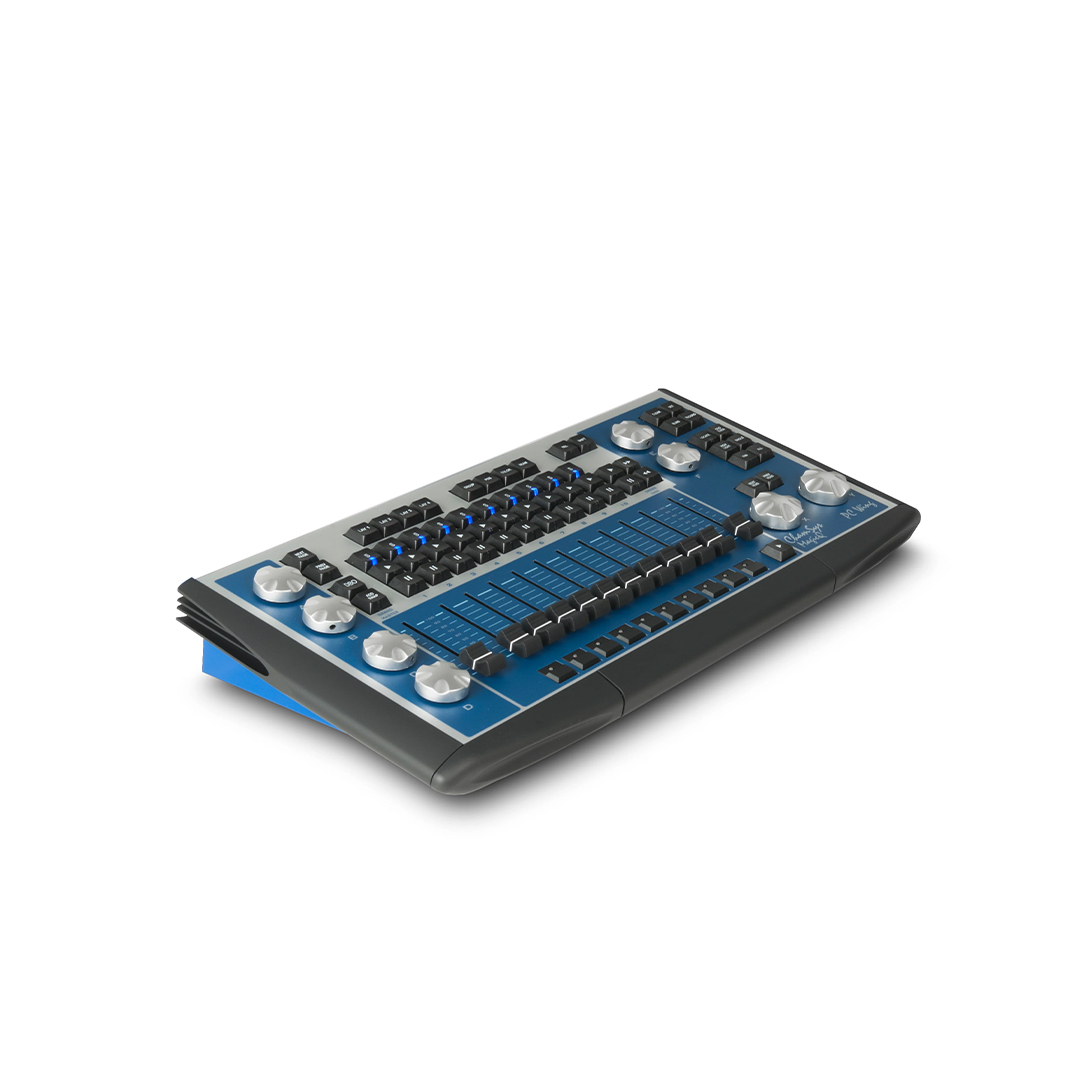

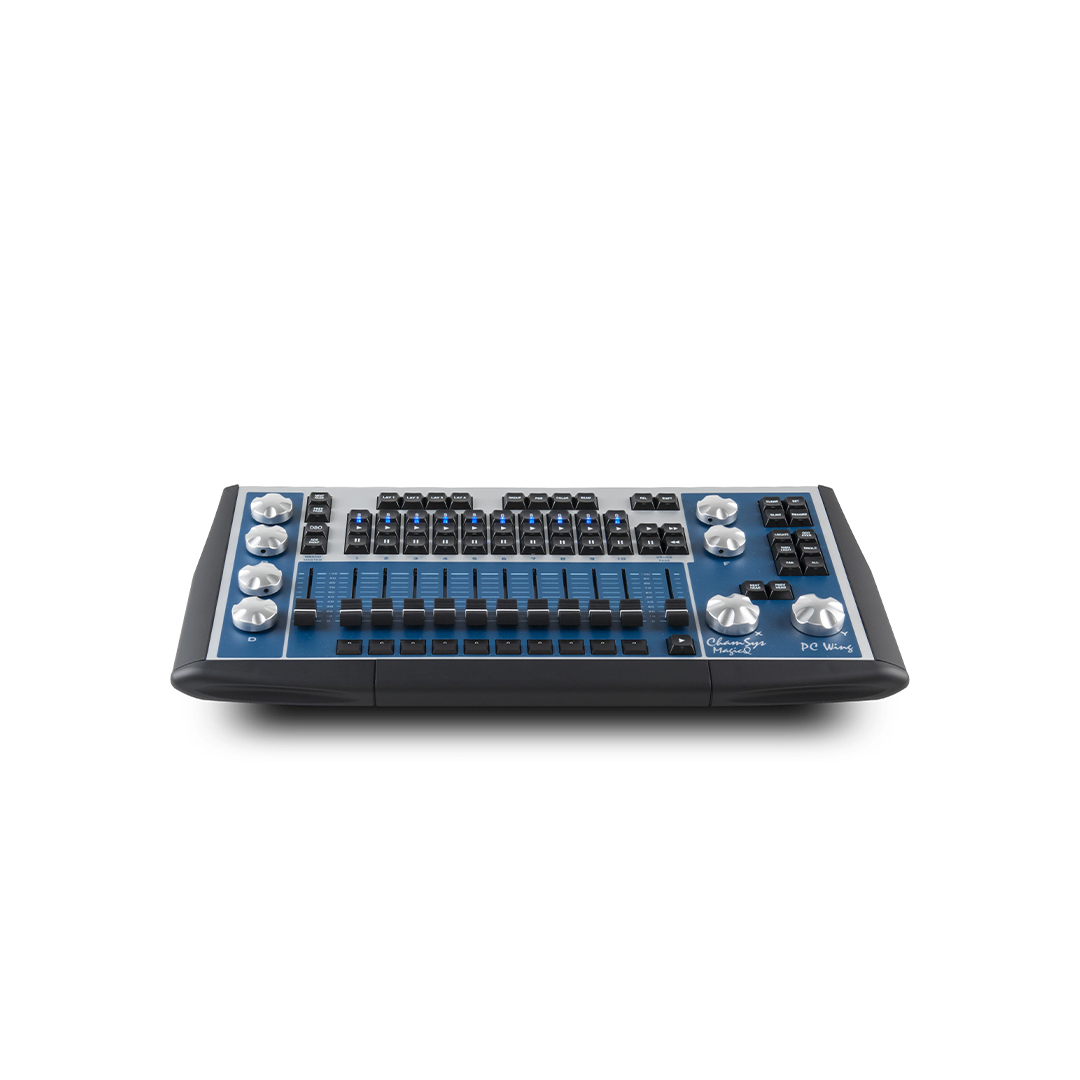

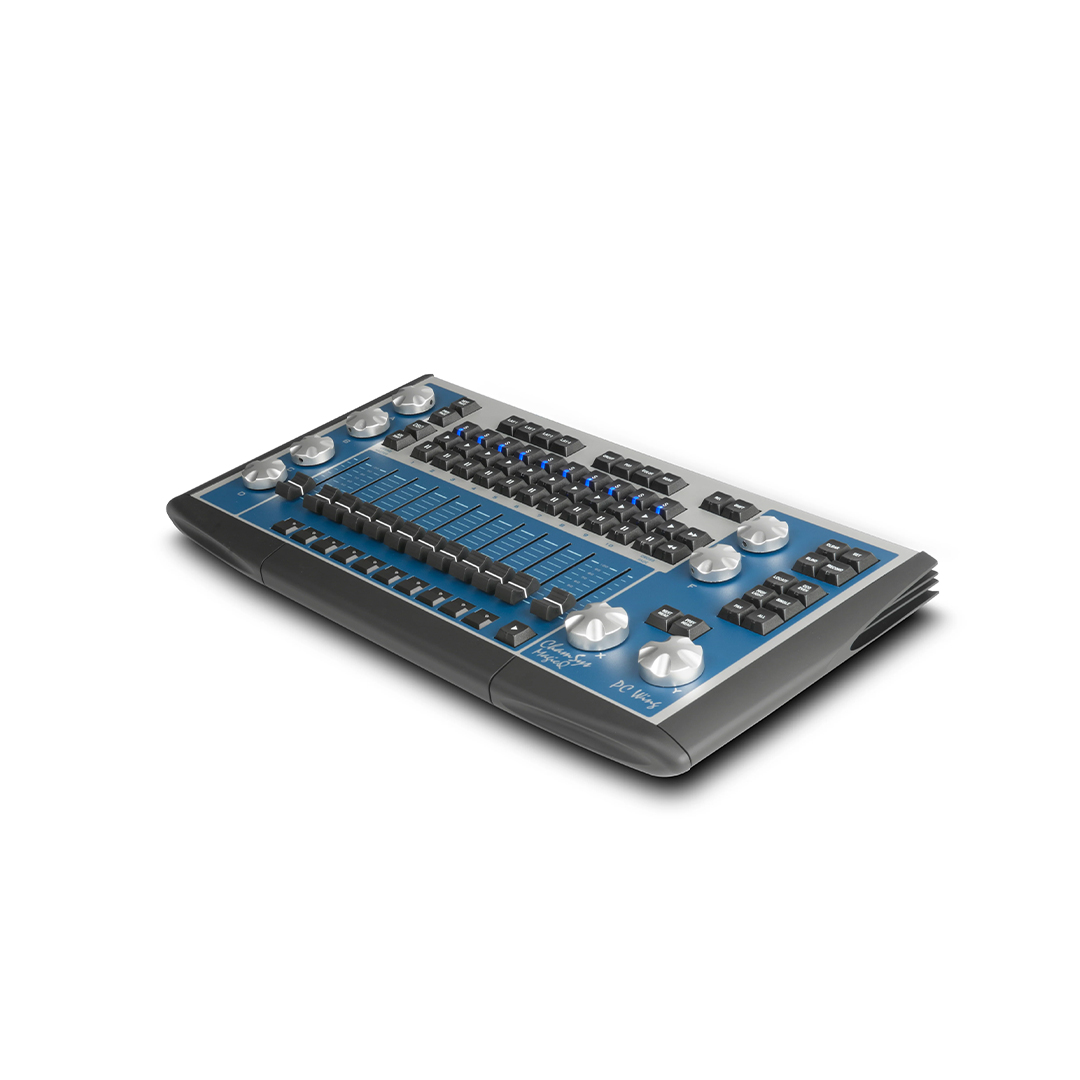

The MagicQ PC Wing Compact is an extremely powerful USB control wing for connecting to your PC or Mac to control lighting, video and LED with the MagicQ PC software. MagicQ PC software runs under Windows, Linux or OSX. MagicQ PC software is free and uniquely the outputs are fully enabled, allowing you to run shows on up to 64 Universes.

MagicQ software includes the free MagicVis visualiser enabling simple visualisation of all 64 universes of lighting control. MagicQ software also includes the free MagicHD media player enabling playback of up to 8 layers of HD media through your PC or Mac 2nd monitor port.

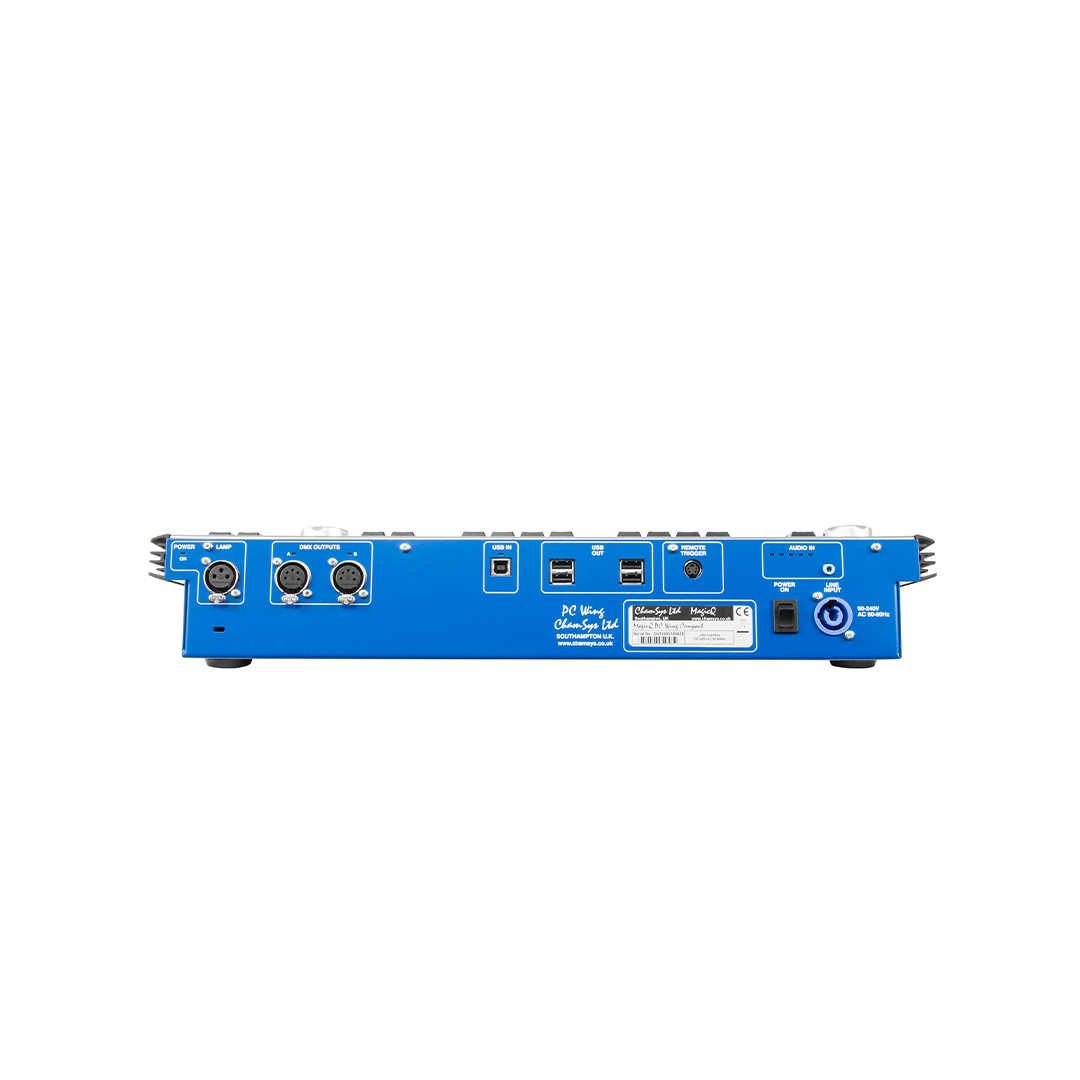

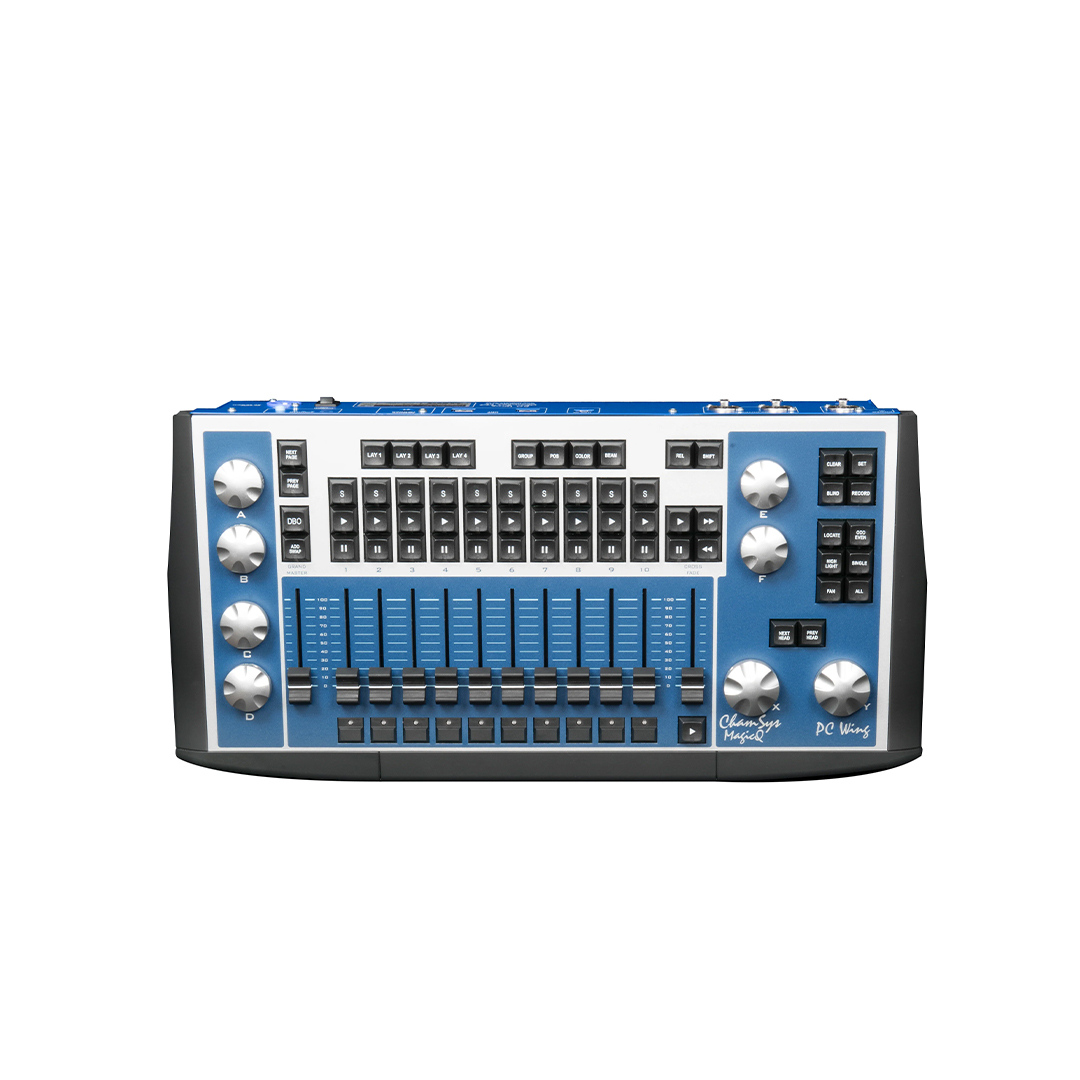

The MagicQ PC Wing Compact enables advanced show programming and playback through real faders, buttons and encoder wheels. It provides easy access to moving light parameters via the 8 rotary encoders, and live show control through the 10 playback faders and cue stack control buttons. In additional there are 2 fully patchable direct DMX outputs on the rear panel.

Improvements from ChamSys original PC Wing include the addition of six extra buttons: Previous Page, Group and four layout/macro buttons. The MagicQ PC Wing Compact is also narrower, so will fit within hand luggage restructions. Other improvements include the addition of an in-built four port USB hub, in-built power supply and the addition of an audio input for cue stack triggering.

MagicQ is simple and easy to program, enabling really quick setup – you can be up and running your show in seconds. With unrivalled live editing and live timing options, impressive changes can be made live at the touch of a button – no need to spend hours programming complex effects.

The MagicQ PC Wing Compact provides an immensely powerful PC based console in a compact size. Ideal for use by touring Lighting Designers, or for installing into theatres, clubs, and venues, the MagicQ PC Wing Compact builds on the MagicQ PC Wing as the PC solution of choice for controlling lighting, video and LED.

Features

Tracking / non-tracking option
Fixture, FX and gel library
In-built fixture editor
In-built media engine
LED pixel mapping
Fixture morphing and cloning
Rainbow colour picker (CMY, RGB, HSI)
Individual fade times on any channel
Easy fanning of parameters and times
Configurable faders – HTP, LTP, speed, size, masters
Theatre mark cues, split fades and inhibit masters
Client/server network architecture
Multiple console playback tracking
In-built web server
Remote console control
Visualiser support (including patch transfer)
Architectural zoning and day/date support
MIDI & SMPTE option
Optional Flight Case

Specifications

Universes: 64
Channels: 32768
Number of fixtures: Up to 32768
Cues: 5000
Cue Stacks: 2000
Palettes: 3096
Groups: 5000
Media Server support: 50 (each different content)

Encoders: 8
Faders: 12
Buttons: 71
Direct DMX512 ports: 2
USB ports: 5 (4 output, one input)
Audio input: 1 channel (3.5mm jack)
Dimmable LED console lamps: 1 Dual Colour
Remote trigger input: 1
Security lock fixing: 1
Choice of colours: Blue
In-built Power Supply: 110 to 240 VAC

Width: 515mm
Depth: 257mm
Height (to back): 84mm
Height (to encoders): 88mm
Weight: 3.6kg

Flightcased dimensions:
Length:
340mm
Width:
 590mm
Height:
180mm
Weight:
6kg

Large Central Touch Screen

MagicQ consoles feature large central touch screens with 8 encoder wheels around them – this provides simple attribute and palette selection

By arranging the faders, encoders and execute buttons around the central screen, they all have electronic legends immediately adjacent – you don’t have to try to work out the function from a remote screen.

The 12inch wide screen provides all the information you need right in front of you without having to continually scroll around to find what you need. Who wants to have to plug in an external monitor just to see your Plot or to view a complete Patch List?

Compatibility

ChamSys believes that it is important for Lighting Designers to be able to move between different MagicQ consoles and different MagicQ software versions without having complicated import and export procedures. Nobody likes having to re-program their show just to meet a particular product version or software version.

With MagicQ it is simple. Any MagicQ show, any MagicQ console, any MagicQ software version.

And don’t forget – you can run MagicQ on your Windows PC, your Mac (native), or even on Linux.

Eliminating Processing Nodes

MagicQ consoles output all their universes directly from the console – no need for external processing nodes. When modern phones and tablets are capable of streaming HD movies, is it really believable that lighting consoles are limited to calculating only 8 or 16 universes on board?

ChamSys doesn’t try to sell you expensive network processing nodes. The console is complete, fully functional, outputs all universes – one item, one price.

We test our consoles with every channel patched and executing cues to prove that the consoles are more than capable of meeting their specified performance.
