Description

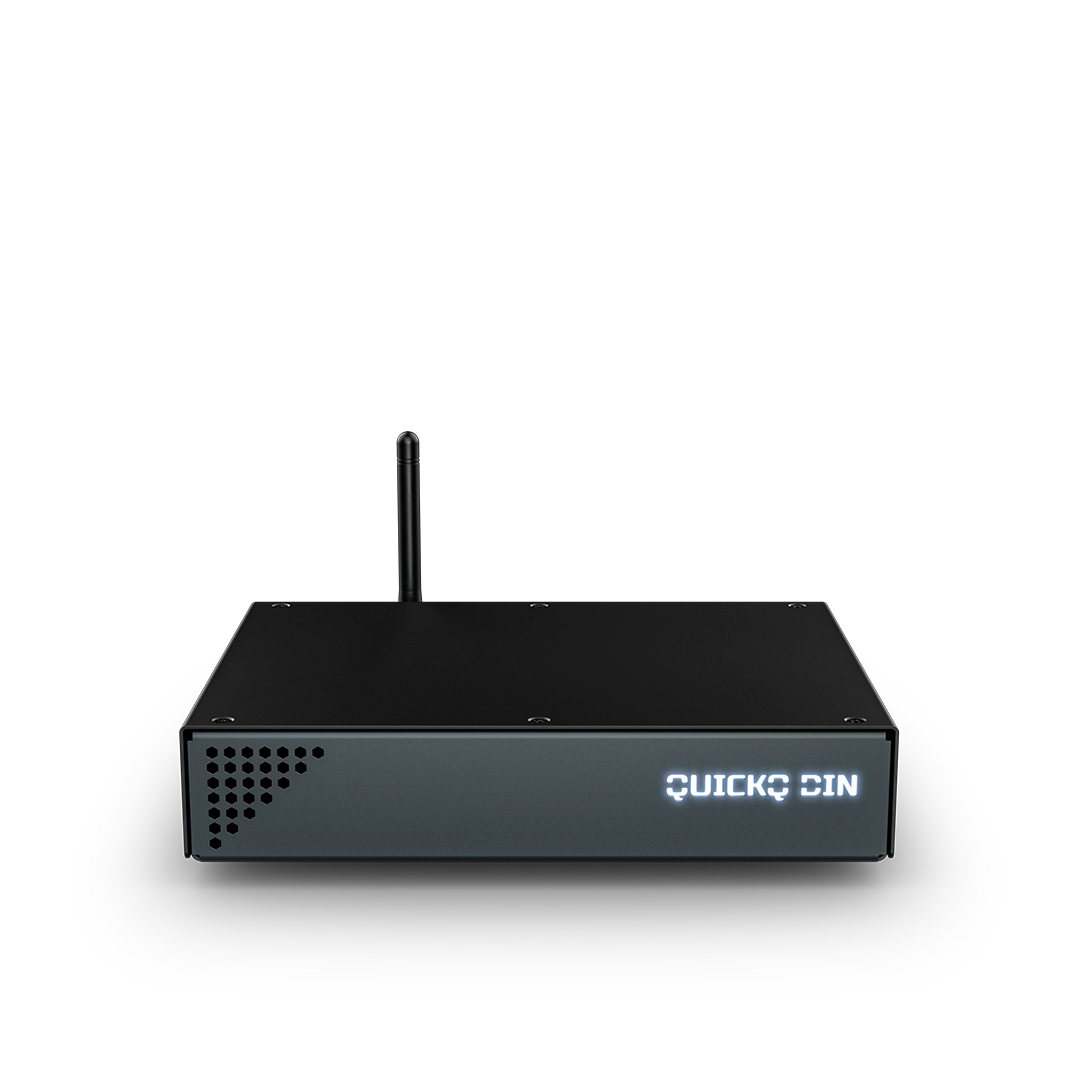

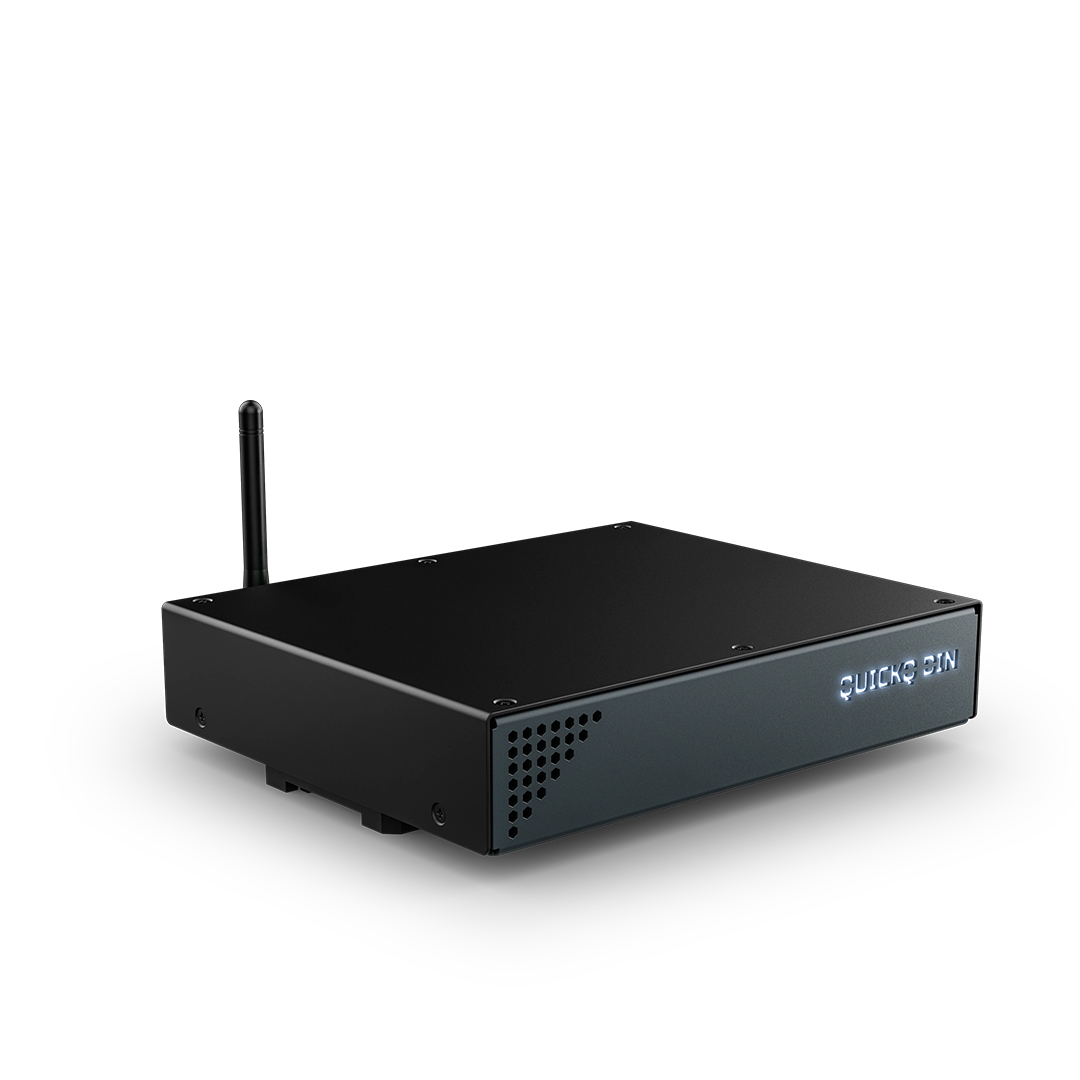

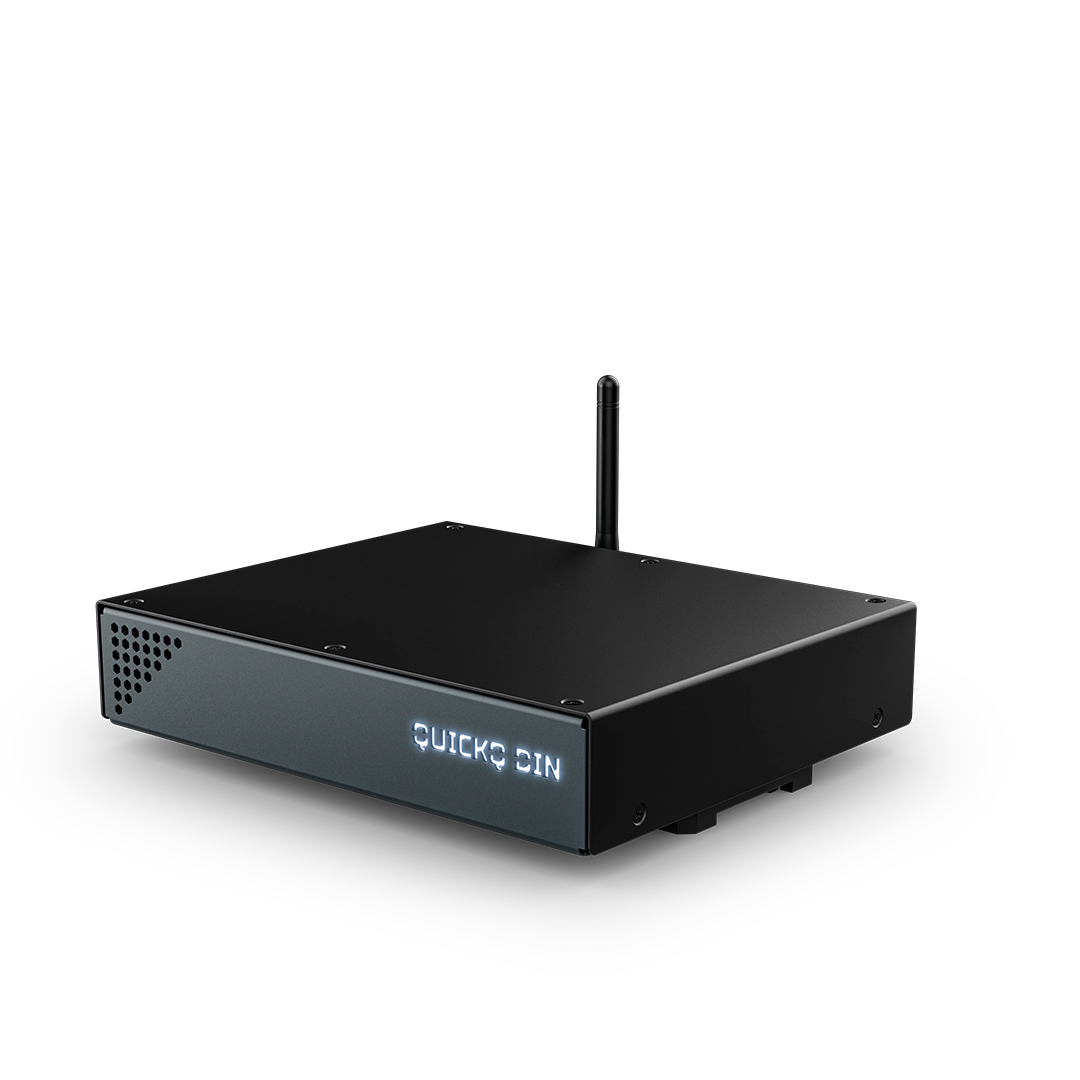

The intuitive simplicity of QuickQ software in a space-saving DIN rail mount solution.

QuickQ DIN supports all QuickQ features including Events, 10Scene and Executes, making it ideal for any installation where space is at a premium and control in a small package is required.

Control up to 4 universes from the device via Art-Net or sACN, the QuickQ DIN also features two RDM-enabled DMX outputs. Easily build installed lighting control systems with connectivity features that include inbuilt Wi-Fi for programming and remote control, and four 10Scene ports for connecting up to forty 10Scene wall plates.

Overview:

Ideal for installations and architectural settings
Featuring four Universes of DMX output
Two RDM enabled DMX outputs
Inbuilt Wi-Fi for programming and remote control
Four 10Scene ports for connection of up to forty 10Scene wall plate
Features the same intuitive software as QuickQ Consoles
Simple Hot-Takeover mode allowing an external console to take control

Cut Sheet

TECHNICAL SPECIFICATIONS

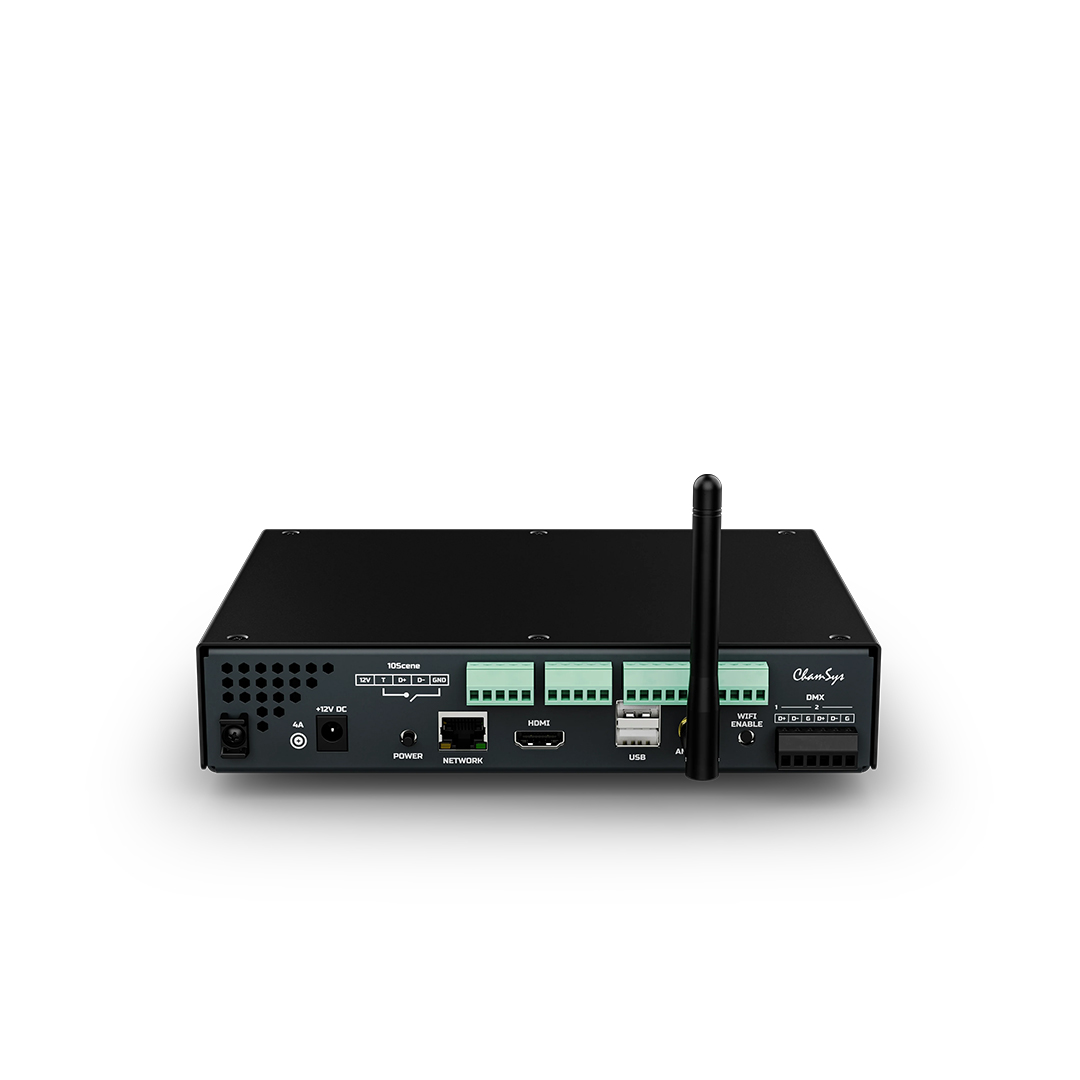

Hardware Specifications:

Universes supported: 4
Direct DMX Outputs Pheonix Screw Terminal: 2
External Monitor: 1920 x 1080 HDMI
Inbuilt Wi-Fi: Yes
Network Port: 1
USB Ports: 2
Power Input: 12v DC

Software Specifications:
- Max Number of DMX Channels: 2048
- Max Number of Fixtures Supported: 2048
- OSC Supported: Yes
- RDM Autopatch for fast show patching
- Fixture library of over 48,000 fixture files
- Built in FX generator
- Colour picker and Gel inbuilt Gel library
- RDM Autopatch for fast show patching
- Offline designer software available for Windows and Mac
- Supported fixtures: All – LEDs, Dimmers & Moving Lights
