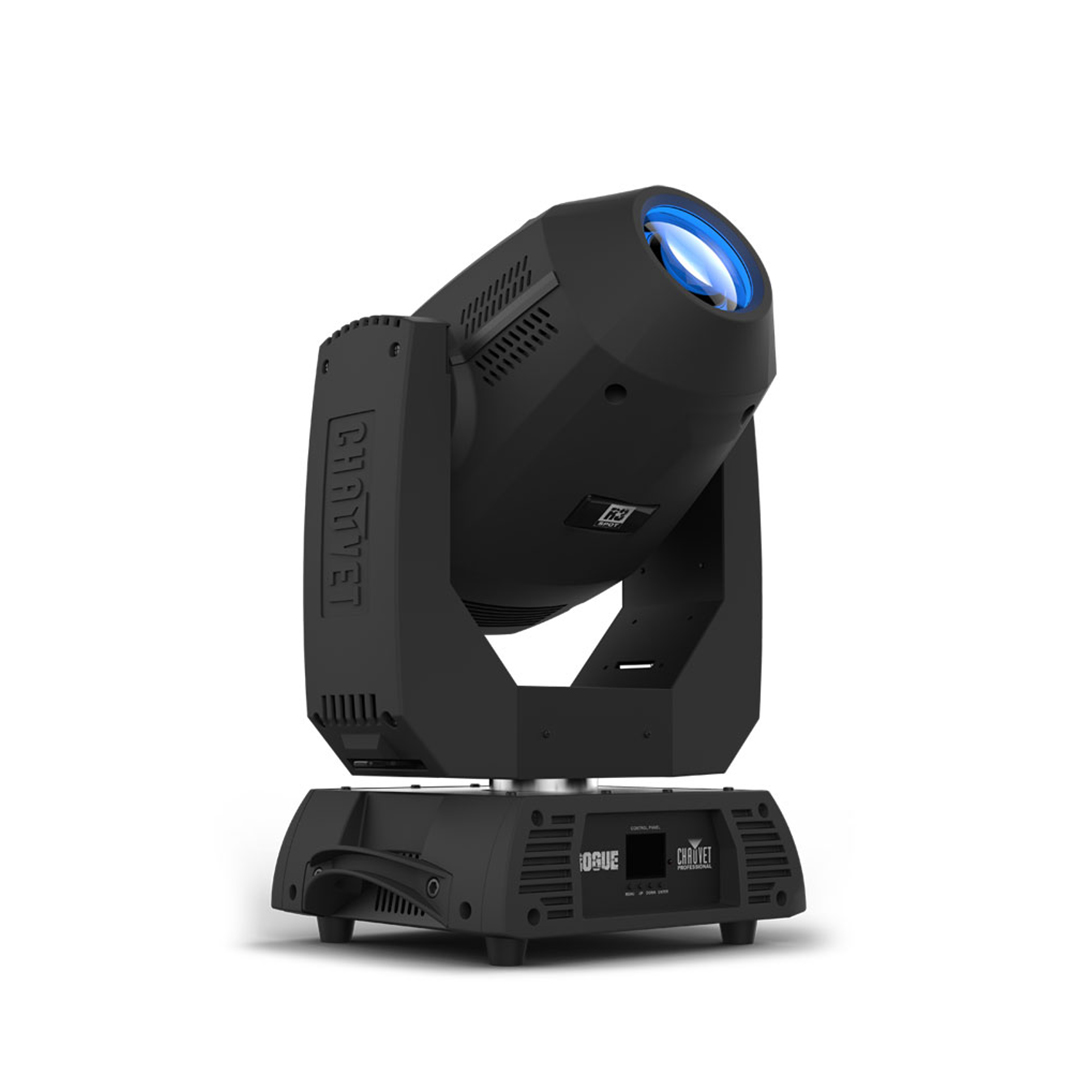

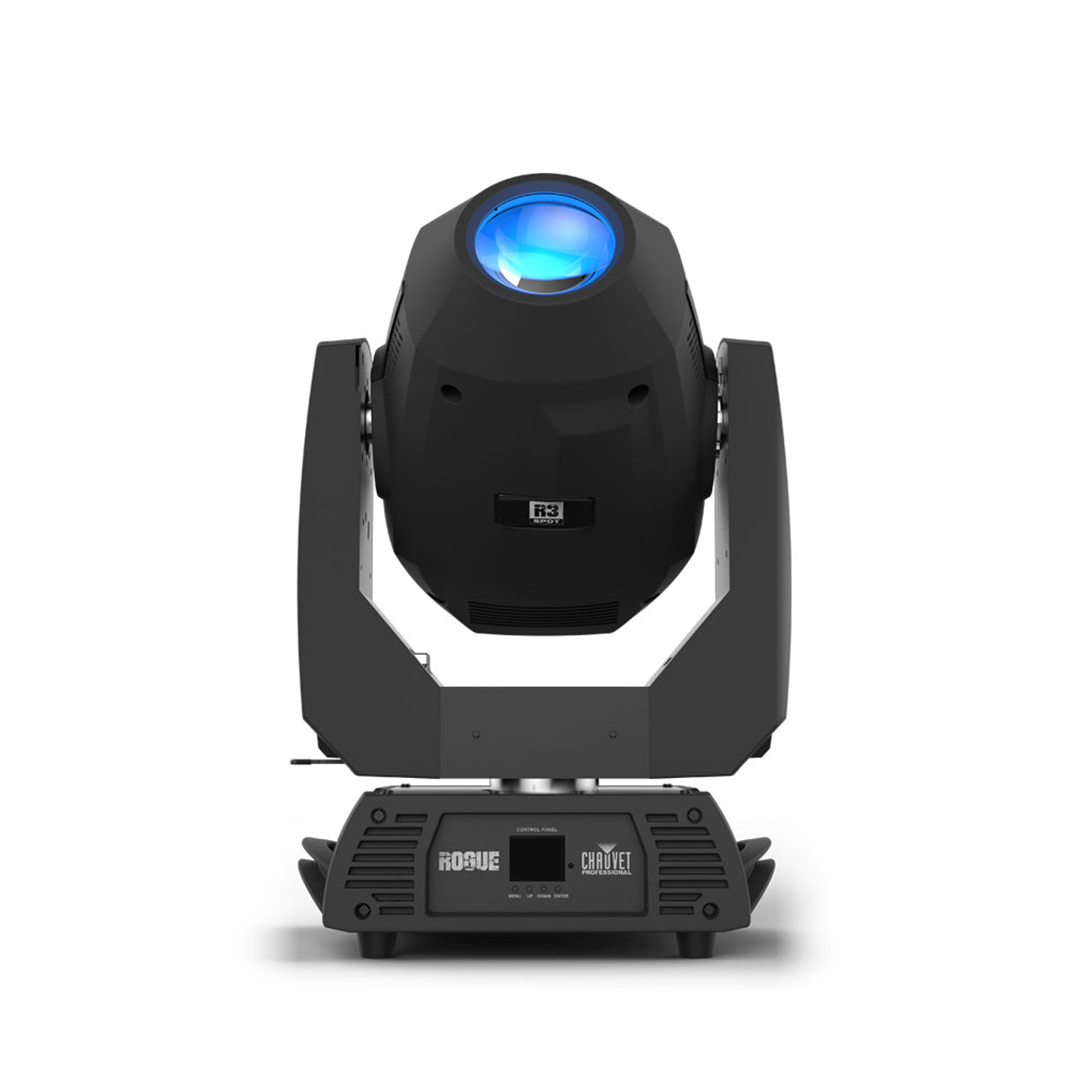

Rogue R3 Spot delivers intense output, crisp optics, sharp focus and maintains a value proposition designed to maximize ROI. This feature-packed moving spot has a bright 300 W LED light engine that produces an even field of light, as well as rotating and static gobos, an 8 position and split-color enabled color wheel, and three facet prism to create stunning looks. A quick moving zoom range of 13 – 37° adds to its flexibility of use by giving the Rogue R3 Spot the ability to cover large areas.

Description

chauvet

AT A GLANCE



  • Intense 300 W LED light engine for punchy, bold beams
  • Zoom angle of 13° to 37° to easily cover stages and surfaces from a distance
  • Perfect gobo morphing between gobo wheels
  • Two color wheels with 7 colors, split color ability, and continuous variable speed scrolling
  • Two gobo wheels: one fixed slot scrolling wheel and one rotating, interchangeable, scrolling wheel
  • Iris, 3-facet prism, and frost for beam control
  • Beautiful 16-bit LED dimming for ultimate fade control
  • Neutrik® powerCON® power input/output connections for power linking
  • 3- and 5-pin DMX input/output connections
  • RDM enabled for remote addressing and trouble shooting
  • Selectable PWM settings to maintain flicker free operation on camera
  • Simple and complex DMX channel profiles for programming versatility

Specifications

Optical

  • Light Source: 1 LED (CW) 300 W, (8.8 A), 7,564 K, 50,000 hours life expectancy.
  • Color Temperature (at full): 7,564 K
  • CRI: 74
  • Beam Angle: 12° to 36°
  • Field Angle: 13° to 37°
  • Zoom Angle: 13° to 37°
  • Illuminance (13°): 12,828 lux @ 5 m
  • Illuminance (37°): 1,768 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

  • Pan and Tilt: 540°/250°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 250° tilt
  • Colors (1): 7 + white, split colors, continuous scroll at variable speeds
  • Colors (2): 7 + white, split colors, continuous scroll at variable speeds
  • Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating): Positions 1, 2, 3, 4, and 7 (metal); size: 28.8 mm (outside), 23.8 mm (image), 0.5 mm (max. thickness)
  • Gobo Size: Gobo Wheel 1 (rotating): Positions 5 and 6 (glass); size: 27 mm (outside), 24 mm (image), 3 mm (max. thickness)
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Iris: Motorized
  • Prism: 3 Facets, motorized, rotating
  • Strobe Rate: 0 to 22 Hz
  • Move in Black: Yes

Construction / Physical

  • Dimensions: 14.68 x 11.1 x 23.66 in (373 x 282 x 601mm)
  • Weight: 50 lb (22.7 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

Connections

  • Power Connection: Edison (local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 19 or 25
  • Modes/Personalities: 2 personalities (19, 25)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V
  • Power and Current: 514 W, 4.28 A @ 120 V, 60 Hz
  • Power and Current: 488 W, 2.35 A @ 208 V, 60 Hz
  • Power and Current: 492 W, 2.14 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP20, dry location
  • Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What’s Included

  • Rogue R3 Spot
  • Neutrik powerCON power cord
  • 2 Omega brackets with mounting hardware

Optional Accessories
