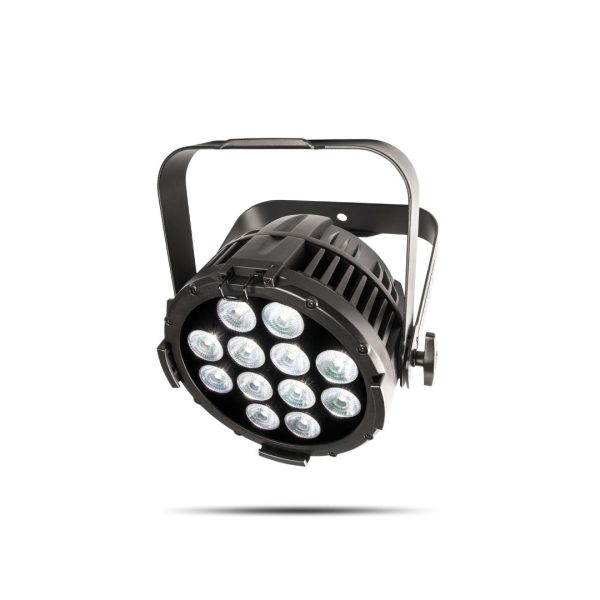

COLORdash Par H12IP

COLORdash Par H12IP is a compact, yet powerful IP-rated RGBWAUV LED wash delivering a beautifully mixed, soft field of richly saturated colors. It features a user-friendly OLED full text display. IP rated connections for power and DMX make setup a breeze.

SKU: COLORDASHPH12IP

Description

AT A GLANCE

  • Rugged RGBWA-UV LED wash for events where indoor/outdoor flexibility is needed
  • At home in any weather conditions with IP rated power and DMX connections
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • RDM (Remote Device Management) for added flexibility
  • Selectable, smooth dimming curves for eliminate flicker and choppiness in fades
  • Easy to read OLED display with password protection and touchscreen interface
  • Advanced optics provide exceptional color mixing and high efficiency
  • Double-bracketed yoke doubles as floor stand

TECHNICAL SPECIFICATIONS

OPTICAL

OPTICAL

  • Light Source: 12 LEDs (hex-color RGBAW+UV) 10 W, (650 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2,800 to 10,000 K
  • Installed Optics: 15°
  • Beam Angle: 22°
  • Field Angle: 34°
  • Illuminance (total): 1180 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 12.3 x 11.9 x 6.9 in (322 x 305 x 177 mm)
  • Weight: 13.4 lb (6.1 kg)
  • Exterior Color: BLACK
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame size: 8.5 in ( 216 mm)

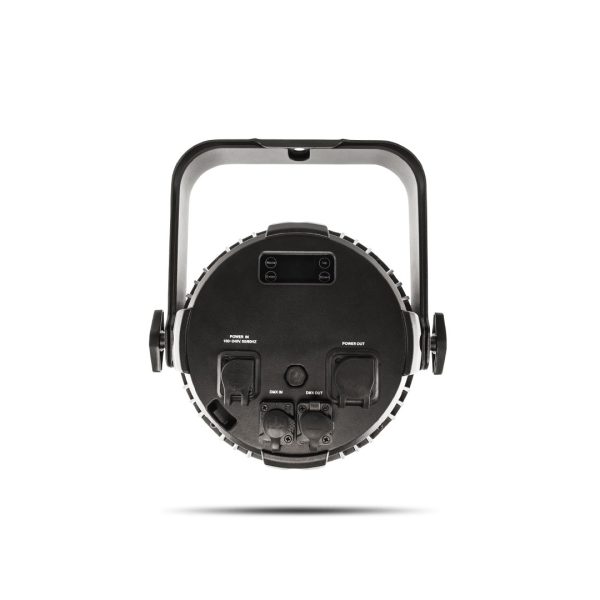

CONNECTIONS

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR
  • Cable Length (power): 5 ft (1.5 m)

DYNAMIC EFFECTS

  • Tilt: 200°
  • Tilt Range: 60°, 180°, 200°
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 20Hz
  • Standalone Color Mixing: No
  • Color Temperature Presets: Yes
  • Dim Modes: 5
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 39.49 x 6.65 x 12.76 in (1,003 x 169 x 324 mm)
  • Weight: 76 lb (34.5 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast, High-Impact flame-retardant polymer, Steel

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 6, 8 or 13
  • Modes/Personalities: 3 personalities (6, 8, 13)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 14 units @ 120 V; 23 units @ 208 V; 25 units @ 230 V
  • Power and Current: 115 W, 0.963 A @ 120 V, 60 Hz
  • Power and Current: 119 W, 0.575 A @ 208 V, 60 Hz
  • Power and Current: 120 W, 0.529 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE® valve

WHAT’S INCLUDED

OPTIONAL ACCESSORIES

  • Power Connection: Edison (Local) plug to Seetronic Powercon IP65
  • Power Input: Seetronic Powercon IP65
  • Power Output: Seetronic Powercon IP65
  • Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: Art-Net, sACN, DMX, RDM, Klingnet
  • DMX Channels: 20ch, 53ch, 101ch, 155ch, 179ch
  • Art-Net Channels: 20ch, 53ch, 101ch, 155ch, 179ch
  • sACN Channels: 20ch, 53ch, 101ch, 155ch, 179ch
  • Modes/Personalities: 5 personalities( 20ch, 53ch, 101ch, 155ch, 179ch)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 1 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V
  • Power and Current: 790 W, 6.70 A @ 120 V, 60 Hz
  • Power and Current: 772 W, 3.80 A @ 208 V, 60 Hz
  • Power and Current: 768 W, 3.44 A @ 230 V, 50 Hz
  • Fuse: F12 A, 250 V

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, UKCA, FCC
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

WHAT’S INCLUDED

  • COLORADO PXL Curve 12
  • (2) Omega brackets
  • Seetronic Powercon IP65 power cord

OPTIONAL ACCESSORIES

  • Professional Clamps
  • Neutrik TRUE1 power linking cables
  • 5-pin DMX Cables
  • Ethercon Cables

Downloads

Additional information

Weight 6.1 kg
Dimensions 32.2 × 30.5 × 17.7 cm
