Ovation ED-190WW

Ovation ED-190WW ellipsoidal spot is a trailblazer, the first high-power LED based fixture that makes it possible to replace lamp-based ellipsoidals with LED fixtures that respond to traditional dimming systems. Ovation ED-190WW is equally efficient running on constant power and DMX (as LED fixtures typically do), as it is when connected directly to a dimming…

SKU: OVATIONED190WW

Description

AT A GLANCE

  • Fully featured RGBW LED yoke effect beam fixture with pixel mapping
  • 16-bit Dimming of master dimmer as well as individual colors for smooth control of fades
  • Built in color and tilt macros for quick design possibilities
  • Continuous movement of pan and tilt functions
  • Individual control of all five heads for movement and output
  • Quiet operation for a wide range of installation situations
  • DMX, sACN, Art-Net, and Kling-Net control for full flexibility
  • 6.2° beam angle to create crisp and defined areal beam effects
  • User selectable PWM frequencies to eliminate camera roll
  • Battery backup display with auto rotate depending on fixture orientation

TECHNICAL SPECIFICATIONS

Optical

  • Light Source: 19 LEDs (WW) 10 W, (2.8 A), 100,000 hours life expectancy
  • Color Temperature (at full): 3076 K
  • CRI: 90
  • Beam Angle (w/14° lens): 12°
  • Beam Angle (w/19° lens): 16°
  • Beam Angle (w/26° lens): 22°
  • Beam Angle (w/36° lens): 31°
  • Beam Angle (w/50° lens): 48°
  • Beam Angle (w/15°–30° lens)(Narrow): 14°
  • Beam Angle (w/15°–30° lens)(Wide): 28°
  • Beam Angle (w/25°–50° lens)(Narrow): 18°
  • Beam Angle (w/25°–50° lens)(Wide): 30°
  • Field Angle (w/14° lens): 14°
  • Field Angle (w/19° lens): 22°
  • Field Angle (w/26° lens): 28°
  • Field Angle (w/36° lens): 36°
  • Field Angle (w/50° lens): 56°
  • Field Angle (w/15°–30° lens)(Narrow): 15°
  • Field Angle (w/15°–30° lens)(Wide): 29°
  • Field Angle (w/25°–50° lens)(Narrow): 25°
  • Field Angle (w/25°–50° lens)(Wide): 48°
  • Lumens (w/14° lens):
  • Lumens (w/19° lens): 5,274
  • Lumens (w/26° lens): 6,025
  • Lumens (w/36° lens): 6,322
  • Lumens (w/50° lens): 6,349
  • Illuminance (w/14° lens): 7,414 lux @ 5 m
  • Illuminance (w/19° lens): 4,380 lux @ 5 m
  • Illuminance (w/26° lens): 2,743 lux @ 5 m
  • Illuminance (w/36° lens): 1,578 lux @ 5 m
  • Illuminance (w/50° lens): 624 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Narrow): 8,810 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Wide): 2,548 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Narrow): 3,616 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Wide): 1,276 lux @ 5 m
  • PWM Frequency: 600 Hz

Dynamic Effects

  • Dimmer: Electronic or External Dimmer Rack
  • Shutter/Strobe: Electronic
  • Focus: Manual
  • Strobe Rate: 0 to 20 Hz
  • Dim Modes: 5
  • Dim Curves: 4

DYNAMIC EFFECTS

  • Tilt: 200°
  • Tilt Range: 60°, 180°, 200°
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 20Hz
  • Standalone Color Mixing: No
  • Color Temperature Presets: Yes
  • Dim Modes: 5
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 39.49 x 6.65 x 12.76 in (1,003 x 169 x 324 mm)
  • Weight: 76 lb (34.5 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast, High-Impact flame-retardant polymer, Steel

Construction / Physical

  • Dimensions: (fixture only): 21.5 x 15 x 15 in (545 x 380 x 380 mm)
  • Dimensions (w/14° lens extended): 30.8 x 15 x 15 in (782 x 380 x 380 mm)
  • Dimensions: (w/26° lens extended): 26.5 x 15 x 15 in (673 x 380 x 380 mm)

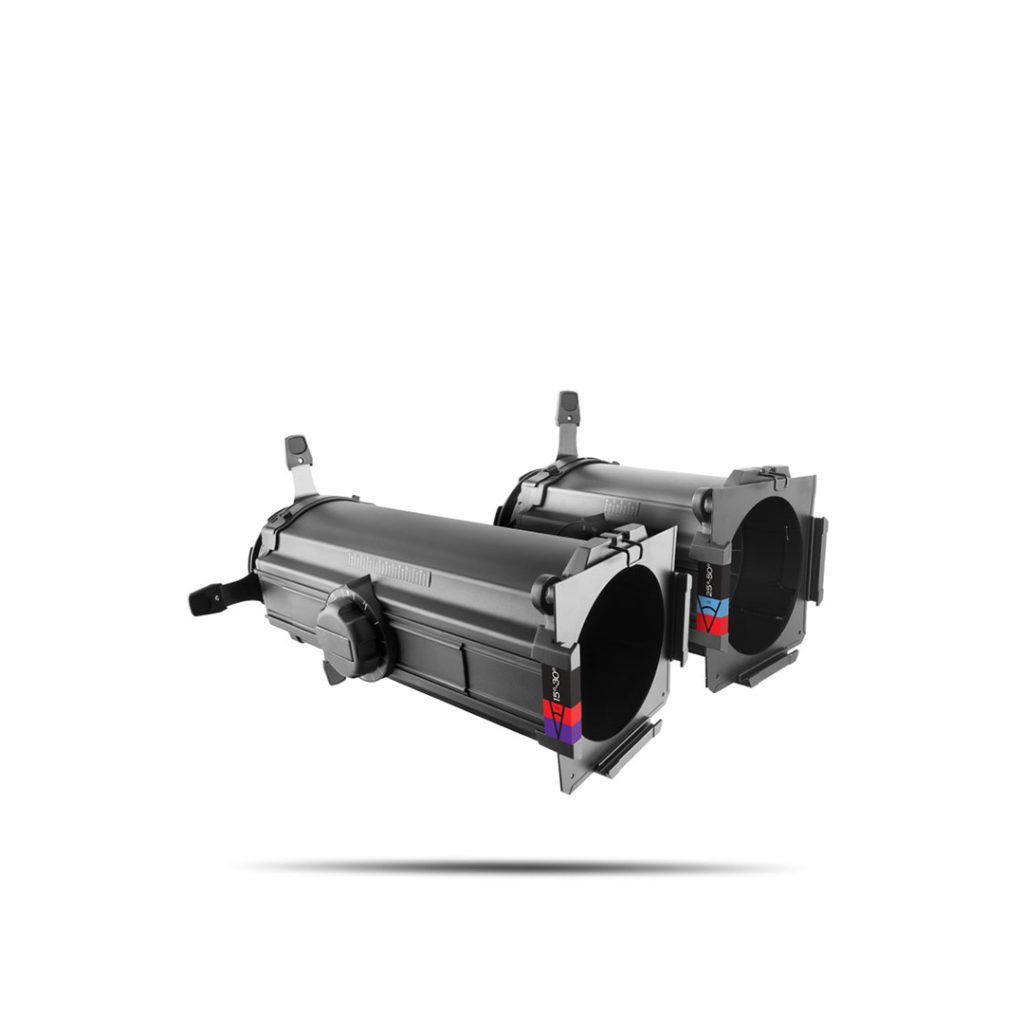

  • Dimensions: (w/15°–30° lens): 42 x 14.6 x 14.6 in (1,068 x 371 x 371 mm)
  • Dimensions: (w/25°–50° lens): 36.3 x 14.6 x 14.6 in (923 x 371 x 371 mm)
  • Weight (fixture only): 16.4 lb (7.44 kg)
  • Weight (w/14° lens): 21.8 lb (9.88 kg)
  • Weight (w/26° lens): 20.6 lb (9.25 kg)
  • Weight (w/15°–30° lens): 30.4 lb (13.79 kg)
  • Weight (w/25°–50° lens): 28 lb (12.70 kg)
  • Exterior Color: Black
  • Gobo Size (Optional): Gobo holder size A: 94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
  • Gobo Size (Optional): Gobo holder size B: 94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
  • Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
  • Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

Connections

  • Power Connection: Edison plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: DMX, Dimmer
  • DMX Channels: 1, 2 or 3
  • Modes/Personalities: 3 personalities (UNO, DOS, STD.P)

Electrical

  • Input Voltage: 120/230 VAC, 50/60 Hz (switchable)
  • Power Linking: 4 units @ 120 V; 8 units @ 230 V
  • Power and Current: 208 W, 1.7 A @ 120 V, 60 Hz
  • Power and Current: 200 W, 0.9 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP20, dry location
  • Max. Noise Level (studio): 44 dB @ 12 in (305 mm)
  • Max. Noise Level (power): 51 dB @ 12 in (305 mm)
  • Max. Noise Level (live): 44 dB @ 12 in (305 mm)

What’s Included

Required Accessories

Optional Accessories

  • Power Connection: Edison (Local) plug to Seetronic Powercon IP65
  • Power Input: Seetronic Powercon IP65
  • Power Output: Seetronic Powercon IP65
  • Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: Art-Net, sACN, DMX, RDM, Klingnet
  • DMX Channels: 20ch, 53ch, 101ch, 155ch, 179ch
  • Art-Net Channels: 20ch, 53ch, 101ch, 155ch, 179ch
  • sACN Channels: 20ch, 53ch, 101ch, 155ch, 179ch
  • Modes/Personalities: 5 personalities( 20ch, 53ch, 101ch, 155ch, 179ch)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 1 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V
  • Power and Current: 790 W, 6.70 A @ 120 V, 60 Hz
  • Power and Current: 772 W, 3.80 A @ 208 V, 60 Hz
  • Power and Current: 768 W, 3.44 A @ 230 V, 50 Hz
  • Fuse: F12 A, 250 V

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, UKCA, FCC
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

WHAT’S INCLUDED

  • COLORADO PXL Curve 12
  • (2) Omega brackets
  • Seetronic Powercon IP65 power cord

OPTIONAL ACCESSORIES

  • Professional Clamps
  • Neutrik TRUE1 power linking cables
  • 5-pin DMX Cables
  • Ethercon Cables

Downloads

Additional information

Weight 7.4 kg
Dimensions 54.5 × 38 × 38 cm
Brand

Chauvet Professional

Brand Series

Ovation

Categories

Lighting

Features

Sub-Categories

Ellipsoidals
