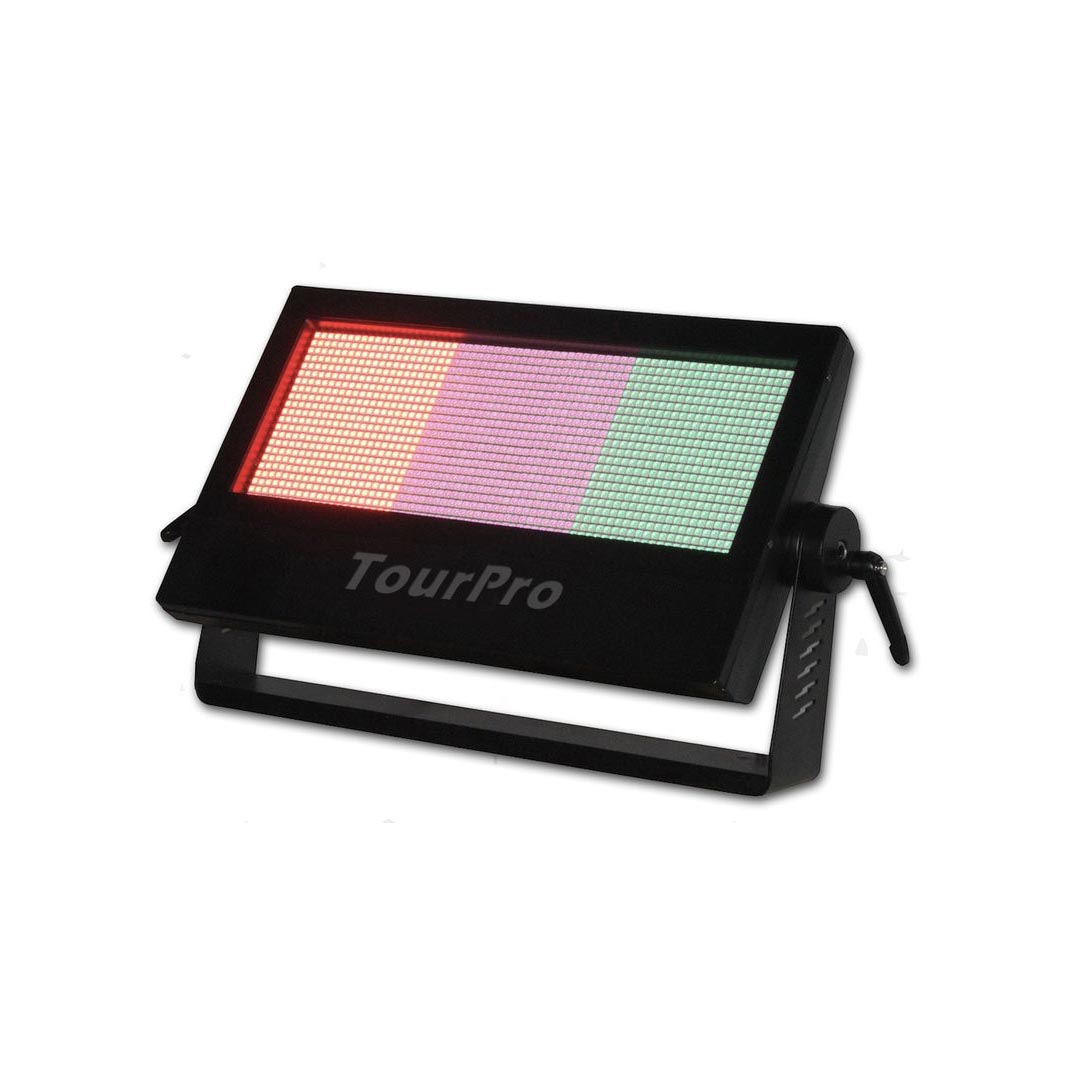

TourPro Storm 1000 RGBW

Light source and optics

• 630 white / 630 RGB SMD 5050 LEDs
• Output: 100k lm for white  / 40k lm for RGB
• Wash/Blinder function operates at 40%
• Beam angle: 120°
• LEDs average life span: >50’000h

Electronics and features

• LCD Display control panel
• 3 segments can be controlled with 16bit dimmer
• User adjustable flash rate 0-30 flashes per second
• Flash duration can be set from 0 to 650ms in DMX mode
  (except 1 channel mode)
• Random flash effect: Light flashes randomly with variable rate and intensity
• Lightning effect: the flashes simulate lightning
• Operating Mode: DMX Mode /Master-slave mode/ Pixel mode
• DMX Channel: 1/3/4/6/7/9/16
• Dimmer: 16bit Dimmer
• Auto mode: built-in programs with execution speed adjustment
• Static color mode: selection of static color
• Master/Slave mode: for synchronized operation of more units linked in a chain
• Linear and ‘stepless’ transition between DMX values
• Flicker free (Film and TV safe) operations (7000Hz)

STRUCTURE;

• Sturdy die-cast aluminum housing for a natural air convection
• Frontal tempered glass panel
• Internal Protection: IP65
• Bracket for truss rigging and hardware for connection of more units
• 3 and 5 pin IN/OUT DMX connections
• TrueCon AC power In/Out connectors

POWER SUPPLY:

• Power unit: 100-240V 50/60Hz
• Maximum power consumption: 1000 W
  Typical current consumption: 5A
  Peak current consumption: 5A

WEIGHT – DIMENSIONS

• Weight: 8.05 kg
• Dimensions (WxHxD):
• 490 x 285 x 120 mm (19.3 x 11.22 x 4.72 in)
