Description
1-9 module configurations
20 LED Watts per module
Separately adjustable rows
12°, 24°, 36° or 15×60° lens option
White, Red, Green, Blue, Yellow LEDs
Nichia Japan semiconductors
Single binning, high efficiency
Outdoor or indoor use
90-240 VAC direct power 25W/module
MODULAR ADJUSTABLE BESPOKE EXTERIOR LED LUMINAIRES
VARAXY provides a high level of design flexibility required for modern illumination applications and is available in hundreds of configurations to fulfill your creative lighting design criteria.

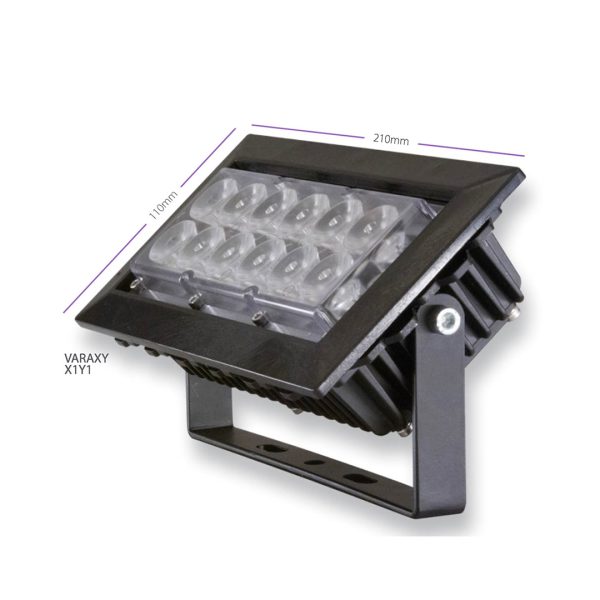

VARAXY is scalable and available from one to nine ‘XY’ module configurations. Each VARAXY ‘Y’ row is vertically adjustable separately providing great on-site flexibility during focusing.12°, 24°, 36°, 15×60°, lens options are available and each ‘Y’ row can have specific lenses allowing for adjustable multiple angles from a single VARAXY. Wide angle ‘low-down’ and narrow ‘up-top’ with ease. VARAXY is equipped with Nichia single colour LEDs delivering the highest levels of efficiency, light quality and longevity. Options include Whites, Red, Green, Blue and Yellow and QUAD RGBW. Each row is populated to your specification.Each VARAXY module delivers 20 LED Watts, delivering over 2,300 lumens, with the 180 LED Watt X3Y3 model generating an impressive 20,700 lumens. (R8000)For longevity, VARAXY features substantial thermal heat-syncing along with under-running of LEDs (75% below specification)
Specifications
KEY FEATURES
Japan LEDs
Single bin colour consistency
High efficacy LEDsFour lens options
Each row adjustable
Integral power supplies
MONO or QUAD RGBW LEDsDMX/RDM control option
WiFi/ArtNet control option
LEDs per MODULE
12 x Nichia 6W rated LEDsEach running at 600mAFLUX per MODULE2,300 lumens (R8000-4K)
POWER per MODULE
80-240 Volts AC – 25 Watts (mains power consumption per module) (non dim-able)
ENVIRONMENT
IP66 exterior protection-20° ~+50°C ambient temp
Powder coated aluminium module body
WEIGHT
1.1 kg per module
OPTIONS
1, 2 or 3 ‘X’ column modules1, 2 or 3 ‘Y’ row modules12, 24, 36, or 15×60°
OpticsFilament-White™ 2,700°KWarm-White
3,000°KMedium-White 4,000°K
Cool-White 6,000°K
Red, Green, Blue, AmberQUAD RGBW
ENVIRONMENT
VARAXY operates at ambient temperatures of -20° ~ +50° Centigrade.
MAINTENANCE
Schedule regular inspection, refer to our warranty document for additional information.WARRANTY5 Years, back to base.
EXPECTED LED LIFE
Up-to 50,000 hours.
OTHER MODELS & OPTIONS
ECO wide angle.
QUAD RGBW 24V Low voltage supply.
Custom paint finishes.
MODULE OPTIONS – 9
COLOUR OPTIONS – 9
LENS OPTIONS – 4
FIXTURE POSSIBILITIES – 324
FIXTURE POSSIBILITIES (with separate row configuration) – 972
