FILAMENT-WHITE™ 2,700° CRI 90 + TriRGB LINEAR LED FIXTURE

INLINE DUOTEK provides the perfect combination of Filament-White & TriRGB LED technologies specifically designed to enhance interior architecture

Compare
SKU: INLINEDUOTEK140 Categories: ,

Description

INLINE DUOTEK >140< is powered by high-efficiency, high CRI of 90 Ra, Filament-White 2700° Kelvin LEDs carefully combined with TriRGB colour mixing LED devices to provide endless colour mixing capabilities and true warm filament type white from the same fixture. Combining Filament-White and TriRGB sources allows for creation of clean cool white with a very high CRI of 95 Ra.

INLINE DUOTEK >140< can be colour controlled and smoothly dimmed, using external low voltage dimmer drivers even at very low brightness levels. I

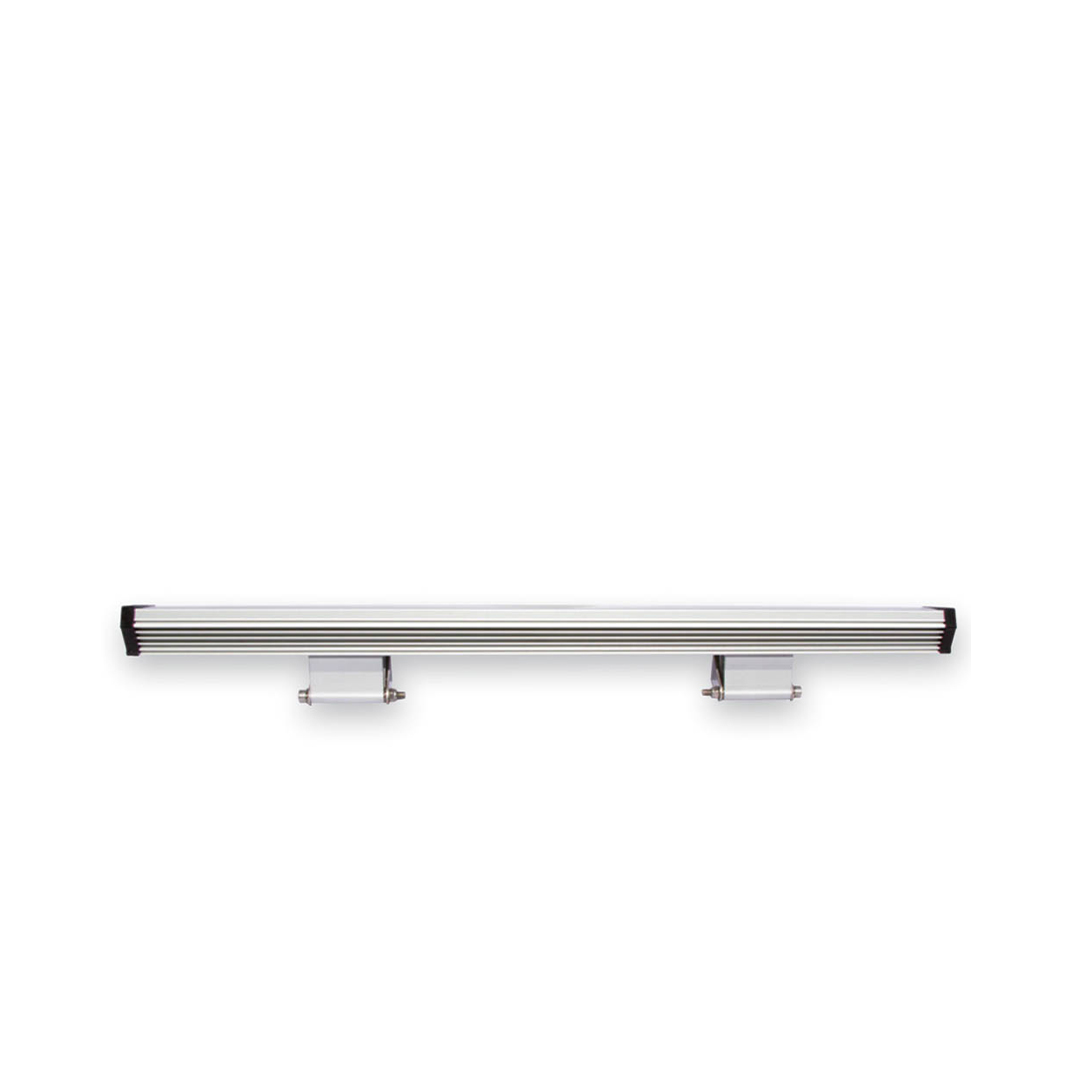

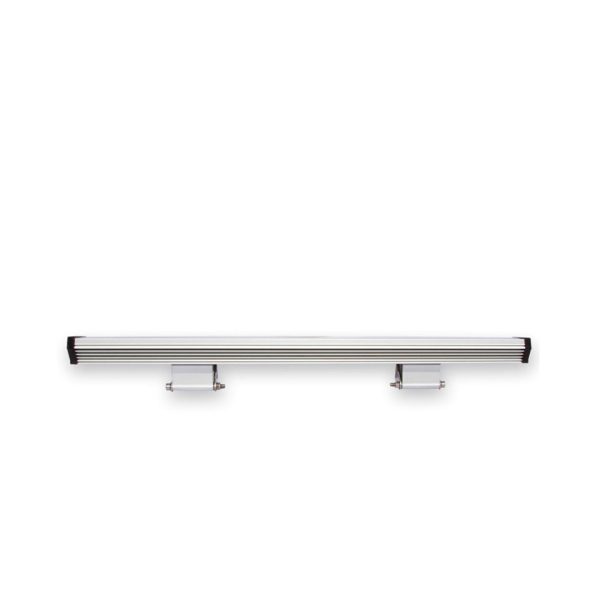

NLINE DUOTEK >140< is available in lengths from 100 to 2000mm (pto) allowing for utilisation even on complex architectural features.



Specifications

FEATURES

Filament-White 2700°K CRI 90 Ra + RGB TriColour LEDs,

Japan LEDsSingle bin colour consistency

High colour rendering

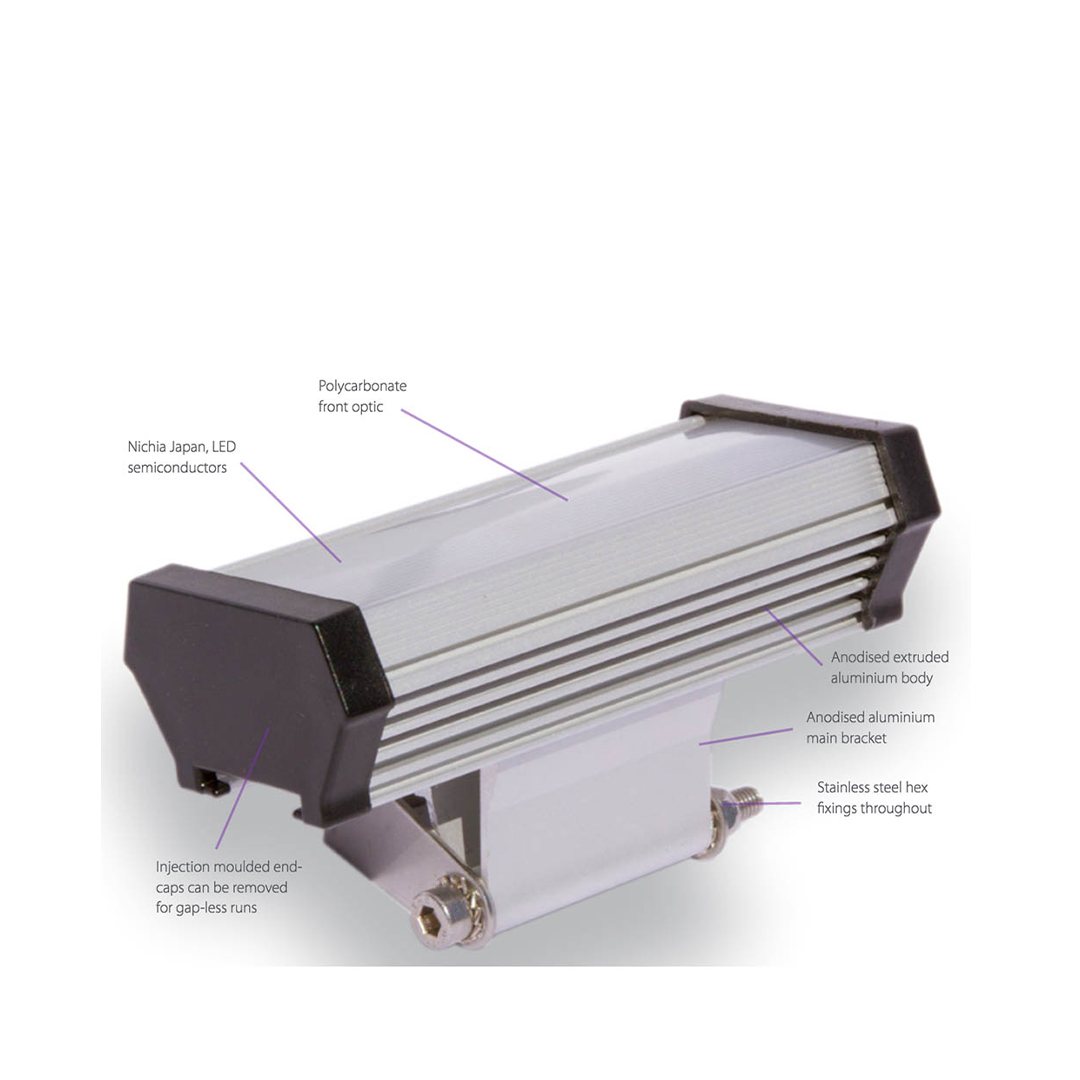

Anodised aluminium body

Polycarbonate front optic PWM dimming compatible

SPECIFICATION

24 Volt DC SELV 24V DC4

Channels (circuits)Common anode (+)7.1 mm LED-LED pitch

14.3 mm W-W / Tri-Tri pitch140° beam angle

IP44 ingress protection

CRI Ra90 (Warm White)CRI Ra95 by colour mixing-20° ~+50°C ambient temp

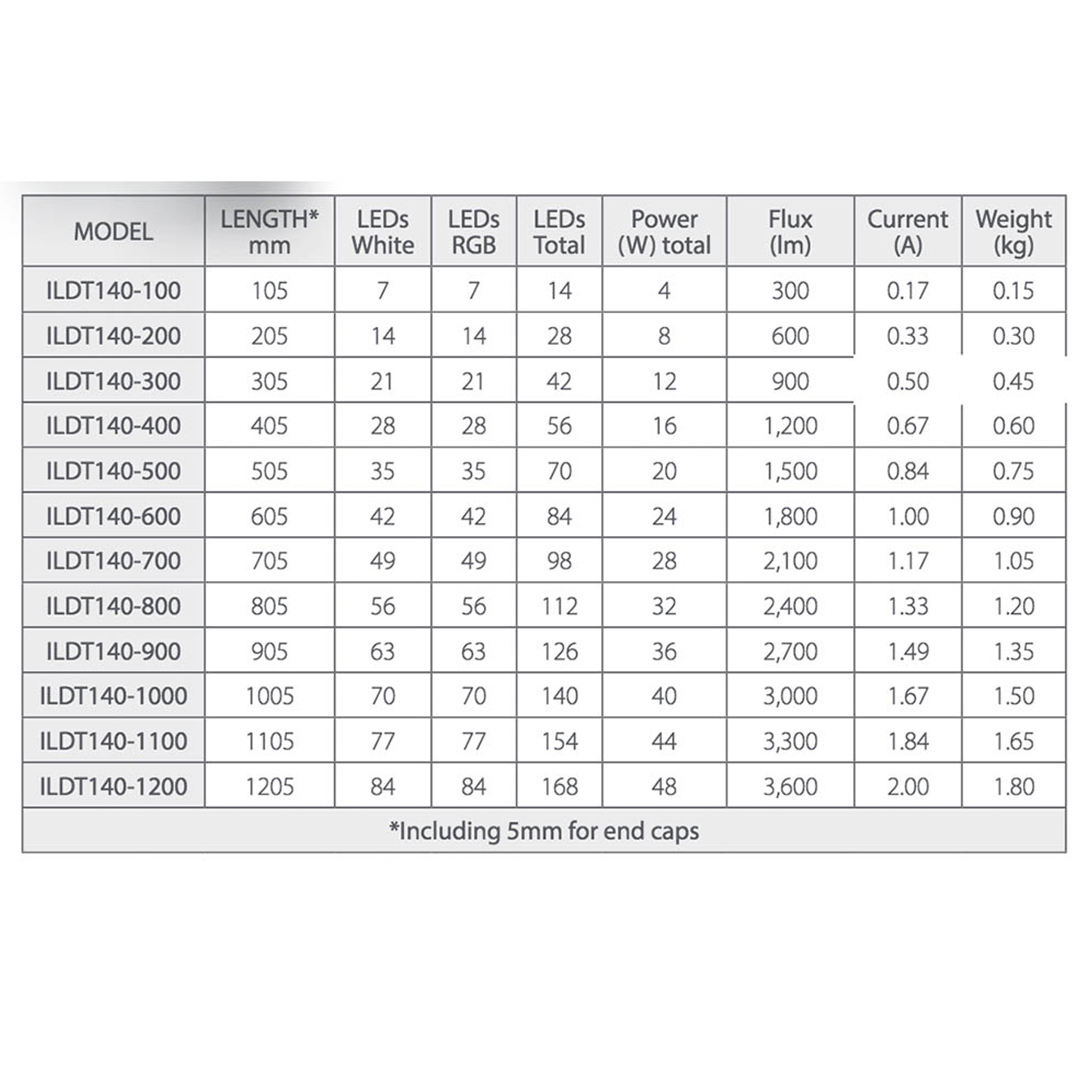

PER METER data

70 x Filament-White LEDs

24 Watts (1.0A) – 2,520lm

70 x TriRGB LEDs16 Watts (0.7A) – 450lm

140 x LEDs TOTAL40 Watts (1.7A) – 2,970lm

PER MODULE data

100 mm PCB modules(10 modules per meter)

7 x Filament-White LEDs2.4 Watts (100 mA) – 252lm

7 x TriRGB LEDs1.6 Watts (67mA) – 45lm

12 x LEDs TOTAL4.0 Watts (167mA) – 297lm

POWER SUPPLY

INLINE 24V is a SELV product

Use only SELV (Safety Extra Low Voltage) regulated power supplies of 24 Volts DC maximum

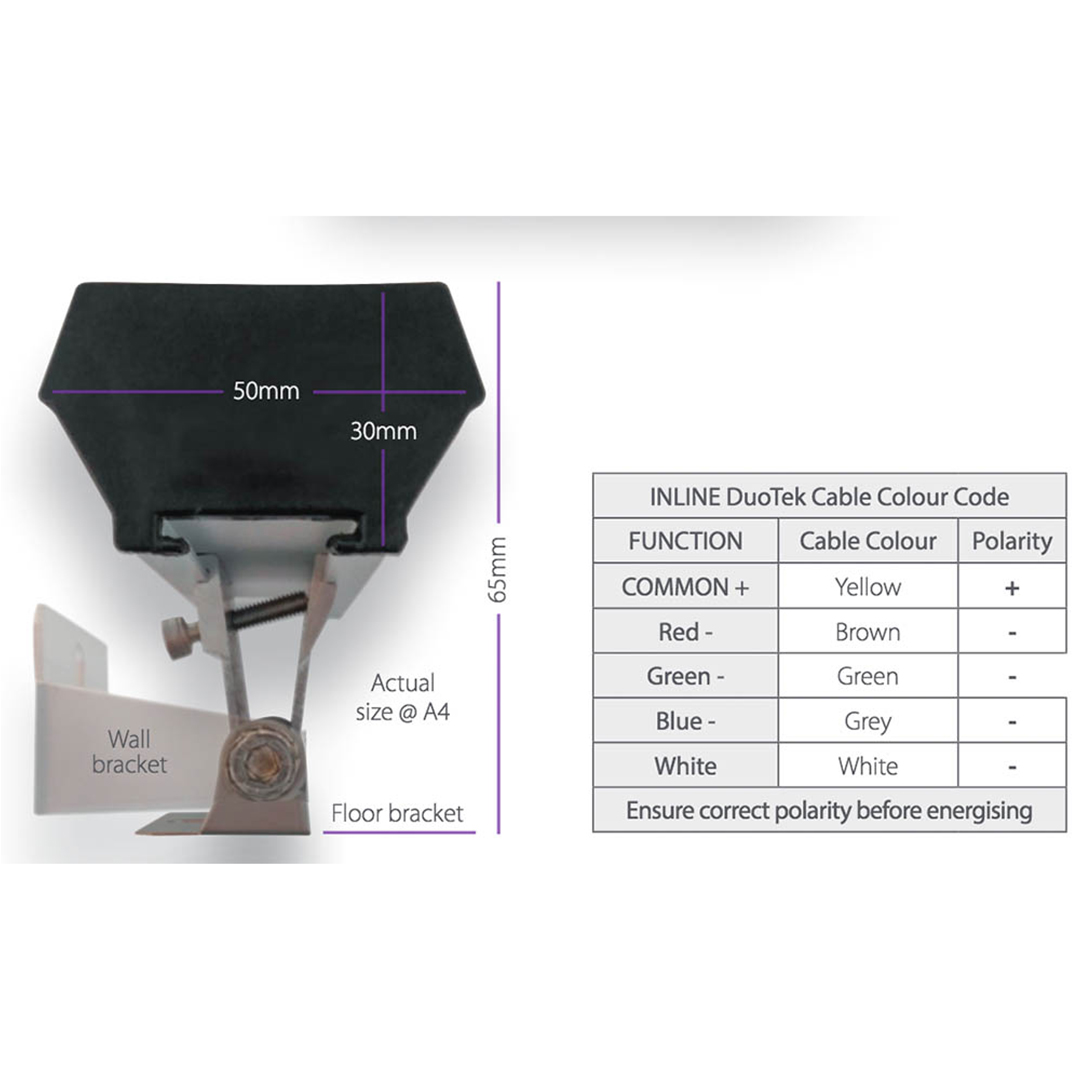

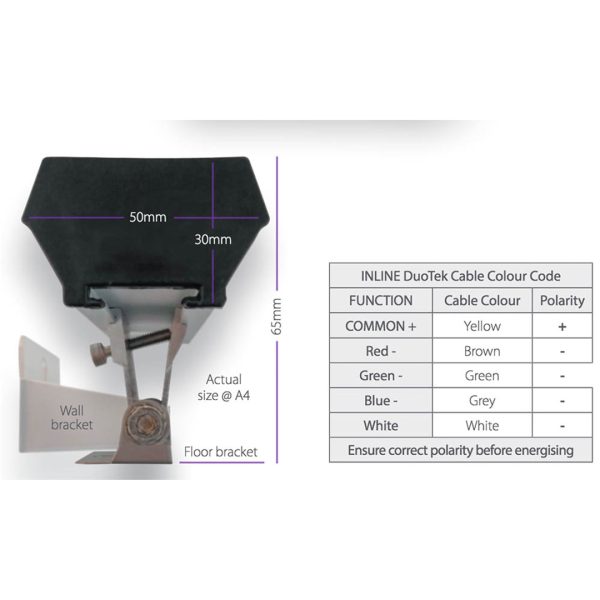

Use PWM drivers with common anode (+) outputs

Make all connections before energising system

Ensure power supply voltage, LED driver and LED fixture voltage are compatible

Link up to 5A (124 W) of fixtures maximum (~3m)Keep cable runs to <15m to reduce voltage drop(Y split and feeding from both end is allowable)

ENVIRONMENTINLINE

is operates at ambient temperatures of -20° ~ +50° Centigrade

MAINTENANCE Schedule

regular inspection and service, refer to our warranty document for additional informationWARRANTY5 Years, back to base

LED LIFE

Up-to 25,000 hours at high power, 100,000 hours in dynamic use.

Additional information

Brand

Axalight
