OPTICAL

• Light Source: 60 LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime) 2 to 3 W, (800 mA), 4766 K, 50,000 hours life expectancy
• Color Temperature (at full): 4766 K
• CRI (5000 K): 90
• Beam Angle (w/80° filter): 40°
• Beam Angle (w/65° lens): 51°
• Beam Angle (w/45° lens): 39°
• Beam Angle (w/25° lens): 37°
• Field Angle (w/80° filter): 80°
• Field Angle (w/65° lens): 79°
• Field Angle (w/45° lens): 66°
• Field Angle (w/25° lens): 37°
• Dimming Modes: 4
• Illuminance (w/80° filter): 163 lux @ 5 m
• Illuminance (w/65° lens): 171 lux @ 5 m
• Illuminance (w/45° lens): 349 lux @ 5 m
• Illuminance (w/25° lens): 1,047 lux @ 5 m
• Lumens (w/80° filter): 2,694
• Lumens (w/65° lens): 3,769
• Lumens (w/45° lens): 3,769
• Lumens (w/25° lens): 3,938
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 27 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: 13.11 x 9.44 x 13.34 in (333 x 240 x 339 mm)
• Weight: 19.6 lb (8.9 kg)
• Exterior Color: Black or White

CONNECTIONS

• Power Connection: Bare-wired
• Power Input: Hard-wired
• Data Connectors: 5-pin XLR, Phoenix connector
• Cable Length (power): 15 ft (4.5 m)

CONTROL

• Control Protocol:, DMX, RDM, W-DMX™
• DMX Channels: 2, 4, 5, 8, 11, 13, 14, 16 or HSV
• Modes/Personalities: 9 personalities (2, 4, 5, 8, 11, 13, 14, 16, HSV)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 145 W, 1.43 A @ 100 V, 60 Hz
• Power and Current: 142 W, 1.19 A @ 120 V, 60 Hz
• Power and Current: 146 W, 0.704 A @ 208 V, 60 Hz
• Power and Current: 145 W, 0.627 A @ 230 V, 50 Hz
• Power and Current: 145 W, 0.605 A @ 240 V, 60 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC
• IP Rating: IP20, dry location

WHAT’S INCLUDED

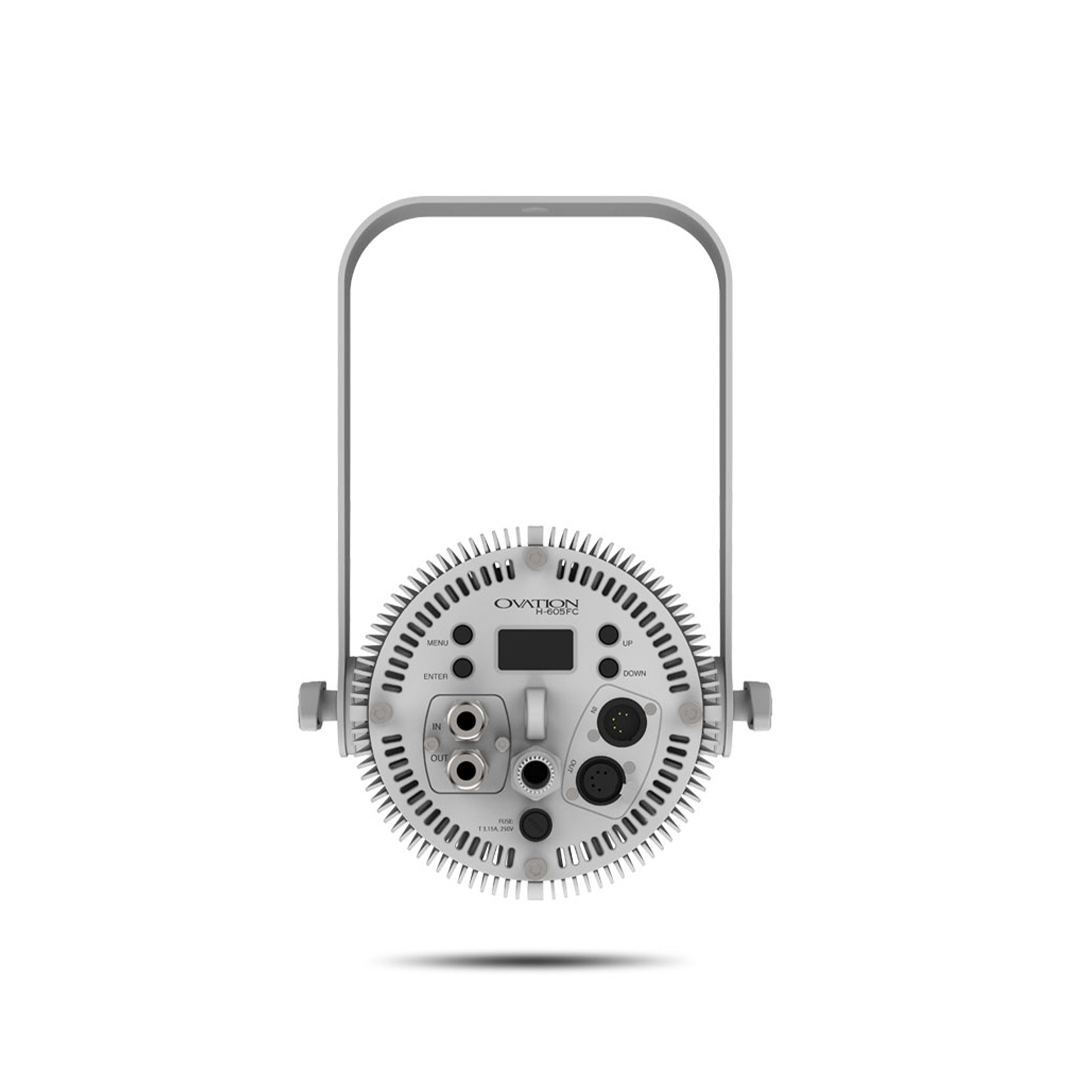

• Ovation H-605FC
• 65°, 45° and 25° lenses
• 80° filter
• Egg crate

OPTIONAL ACCESSORIES

• W-DMX™ Transmitter
• Professional Clamps: CTC-50HC, CTC-50HCN
• 5-pin DMX Cables
• RDM2go

• Power Connection: Edison (Local) plug to Seetronic Powercon IP65
• Power Input: Seetronic Powercon IP65
• Power Output: Seetronic Powercon IP65
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: Art-Net, sACN, DMX, RDM, Klingnet
• DMX Channels: 20ch, 53ch, 101ch, 155ch, 179ch
• Art-Net Channels: 20ch, 53ch, 101ch, 155ch, 179ch
• sACN Channels: 20ch, 53ch, 101ch, 155ch, 179ch
• Modes/Personalities: 5 personalities( 20ch, 53ch, 101ch, 155ch, 179ch)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 1 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V
• Power and Current: 790 W, 6.70 A @ 120 V, 60 Hz
• Power and Current: 772 W, 3.80 A @ 208 V, 60 Hz
• Power and Current: 768 W, 3.44 A @ 230 V, 50 Hz
• Fuse: F12 A, 250 V

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, UKCA, FCC
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

WHAT’S INCLUDED

• COLORADO PXL Curve 12
• (2) Omega brackets
• Seetronic Powercon IP65 power cord

OPTIONAL ACCESSORIES

• Professional Clamps
• Neutrik TRUE1 power linking cables
• 5-pin DMX Cables
• Ethercon Cables
