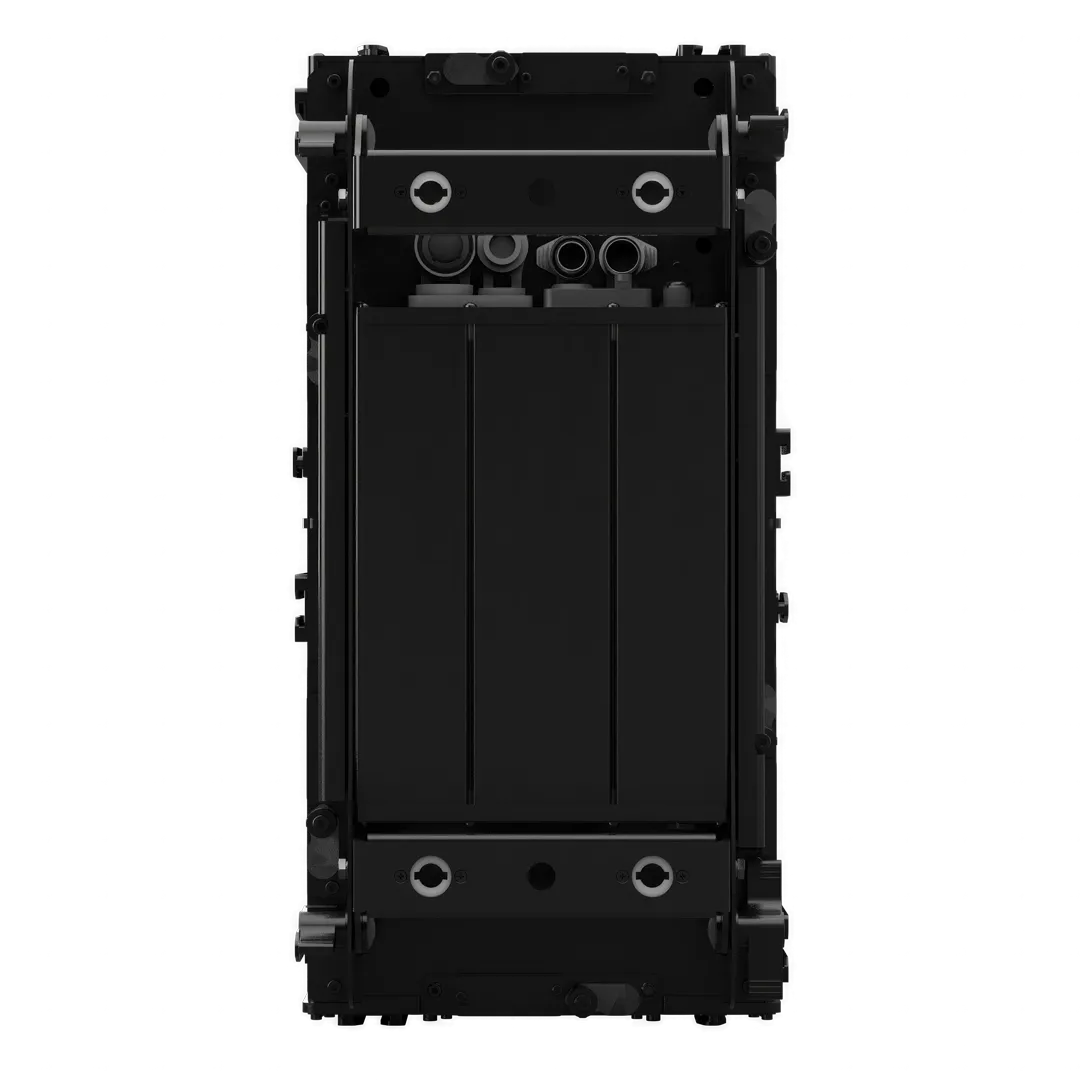

V-SNAP CS

V-SNAP CS is a moving-beam laser projector featuring Disruptive Light Deflection (DLD), an innovation that introduces a revolutionary beam generation system. DLD manages laser light by virtually eliminating latency and ensuring a consistently tight and concentrated projection. Its core is Core Speed, the dynamic essence ensuring extreme Pan/Tilt speeds and surgical precision. Featuring a 120W solid-state source, the Dyna Prism system, and IP65 protection, the V-SNAP CS offers maximum creative versatility for broadcast, live events, and outdoor installations, while FAD (Fast Assembly Design) modularity streamlines workflows across any setup.

I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

OUTPUT

• 120 W laser module source (4000 lumens output from a 5000-lumen source)
• Average Laser life: 12000 hours (L70B10)

OPTICAL GROUP

• With a colour temperature of 10,000 K and 68,000 lux at 20 meters
• Motorized focus
• Beam aperture:
  • 0.5° (minimum);
  • 1.6° (open/gobo);
  • Up to 3.3° with frost filter.
• PWM up to 20 kHz
  • Flicker-free modulation suitable for video recording.
• Strobe effect
  • Adjustable up to 33 Hz;
  • Wide dynamic intensity range.
• Dedicated white filter wheel with:
  • CTD (Converted To Daylight) – 6000 K;
  • CTH (Converted To Halogen) – 3000 K.
• Fixed gobo wheel
  • 24 positions, including 3 reducers.

COLOR GENERATION

• The colour wheel features 12 filters.
• It includes a white/colour strobe function on 10 filters: Red, Green, Blue, Yellow, Magenta, Violet, Amber, Cyan, Jade Green, and Light Pink.
• It outperforms traditional colour wheels.
• The high-speed rotation enables extremely fast transitions.
• The split-colour function allows users to:
  • combine or separate two colours within the same projection;
  • adjust the ratio between the two colours;
  • move from a smooth fade to a sharp, well-defined cut, ideal for mid-air effects.

DYNAMIC EFFECTS

Optical system composed of:

• 2 static prisms (non-rotating):
  • 4-facet (array 2×2);
  • 8-facet (circular).
• 3 dynamic prisms:
  • 4-facet (linear);
  • 8-facet (circular);

TECHNICAL DATA

• • 15-facet (circular: 5 inner facets + 10 outer facets arranged on two layers).
  • Indexable;
  • Rotating;
  • Equipped with partial insertion control via Dyna Prism system.
• Dyna Move effect (available on the 3 dynamic prisms):
  • 2:1 zoom ratio;
  • Range from 6.5° to 13°;
  • Transition from overlapping beams to widely spaced rays (Dyna Prism effect).

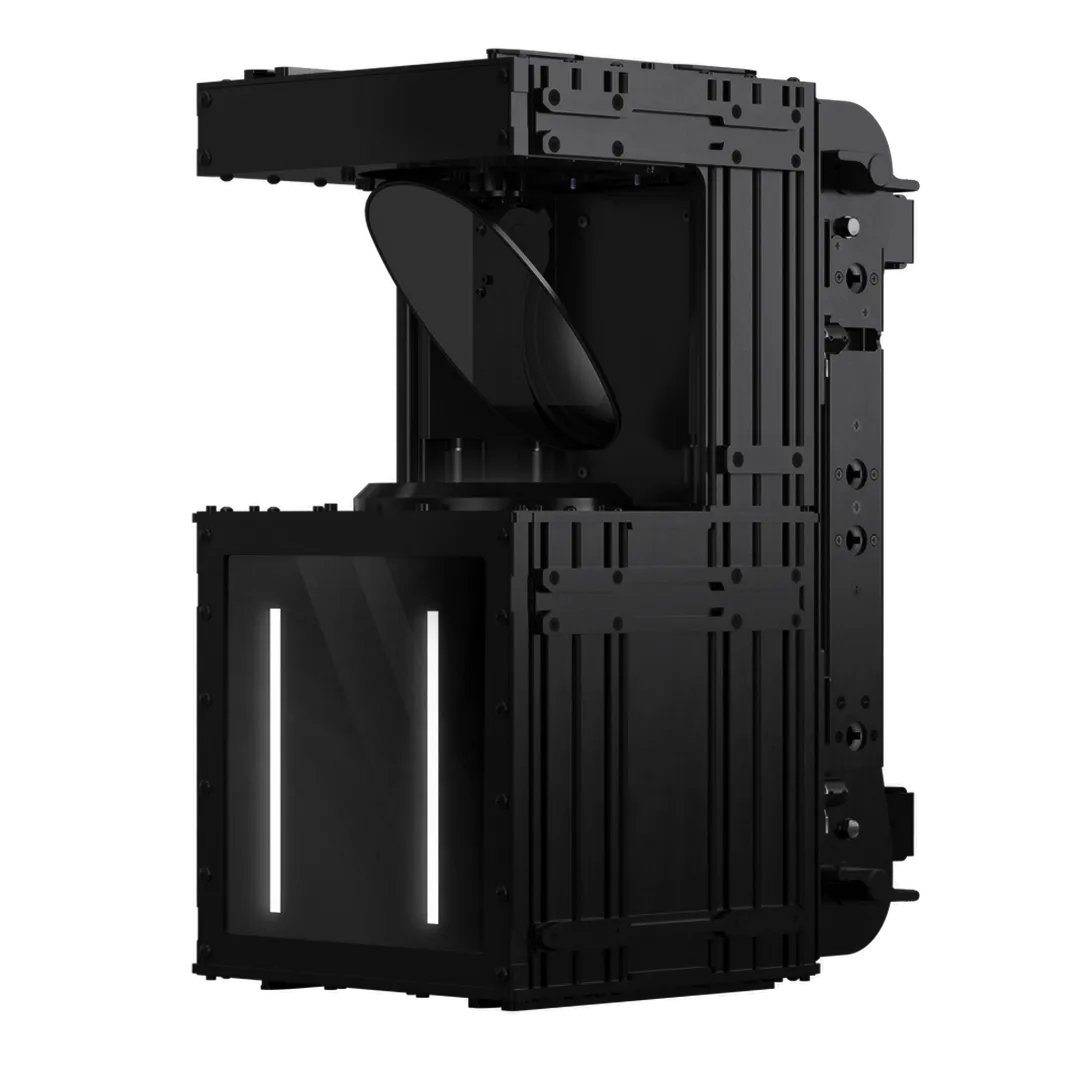

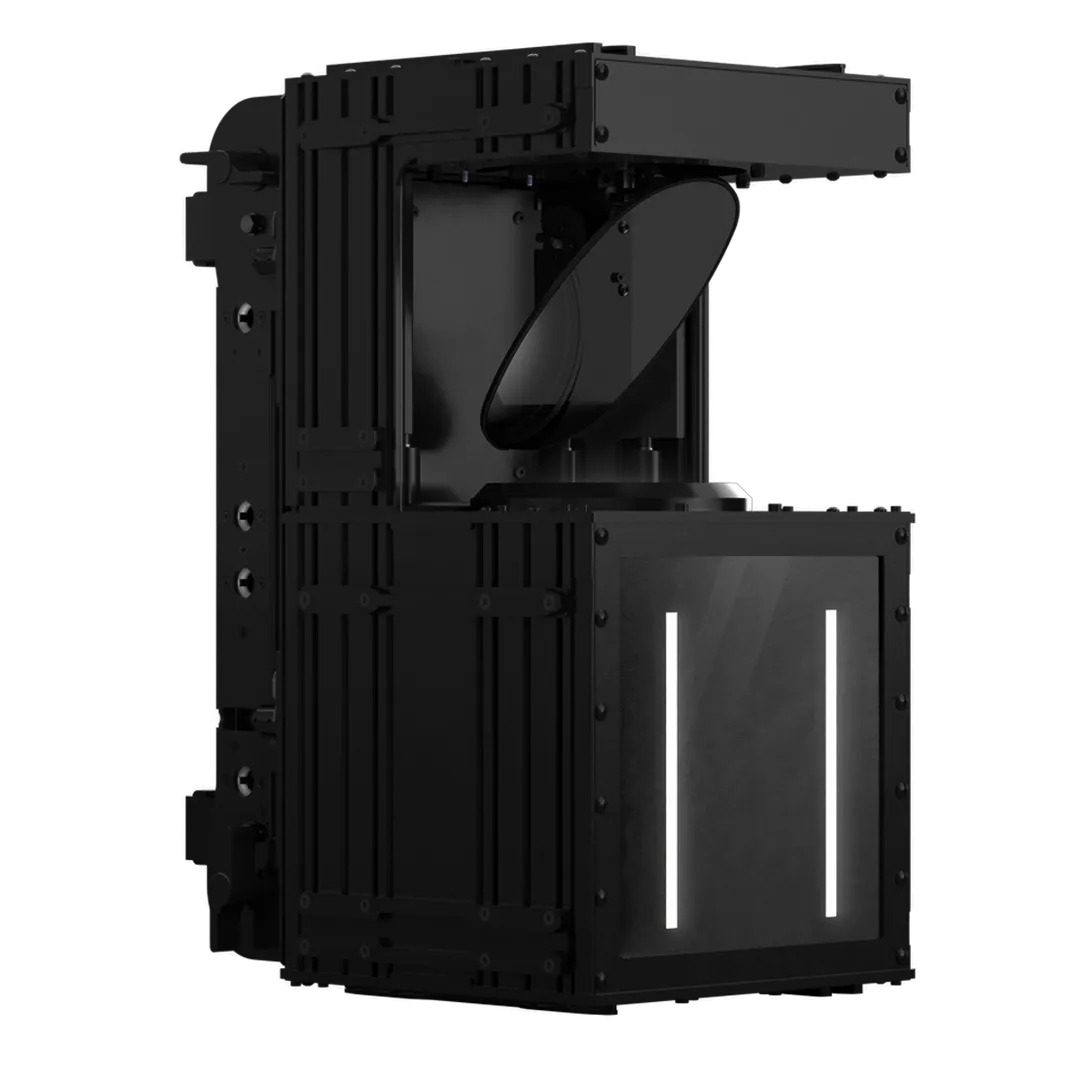

• Twin eye-candy:
  • Two individual strip LED RGBW;
  • Eye-candy dimmer;
  • Eye-candy strobe up to 33Hz;
  • RGBW control for each strip LED.

DMX

• 34 DMX channels

PAN & TILT

• Pan: 180° (full rotation in 0.33 seconds – 540°/second)
• Tilt: 70° (full rotation in 0.24 seconds – 290°/second)

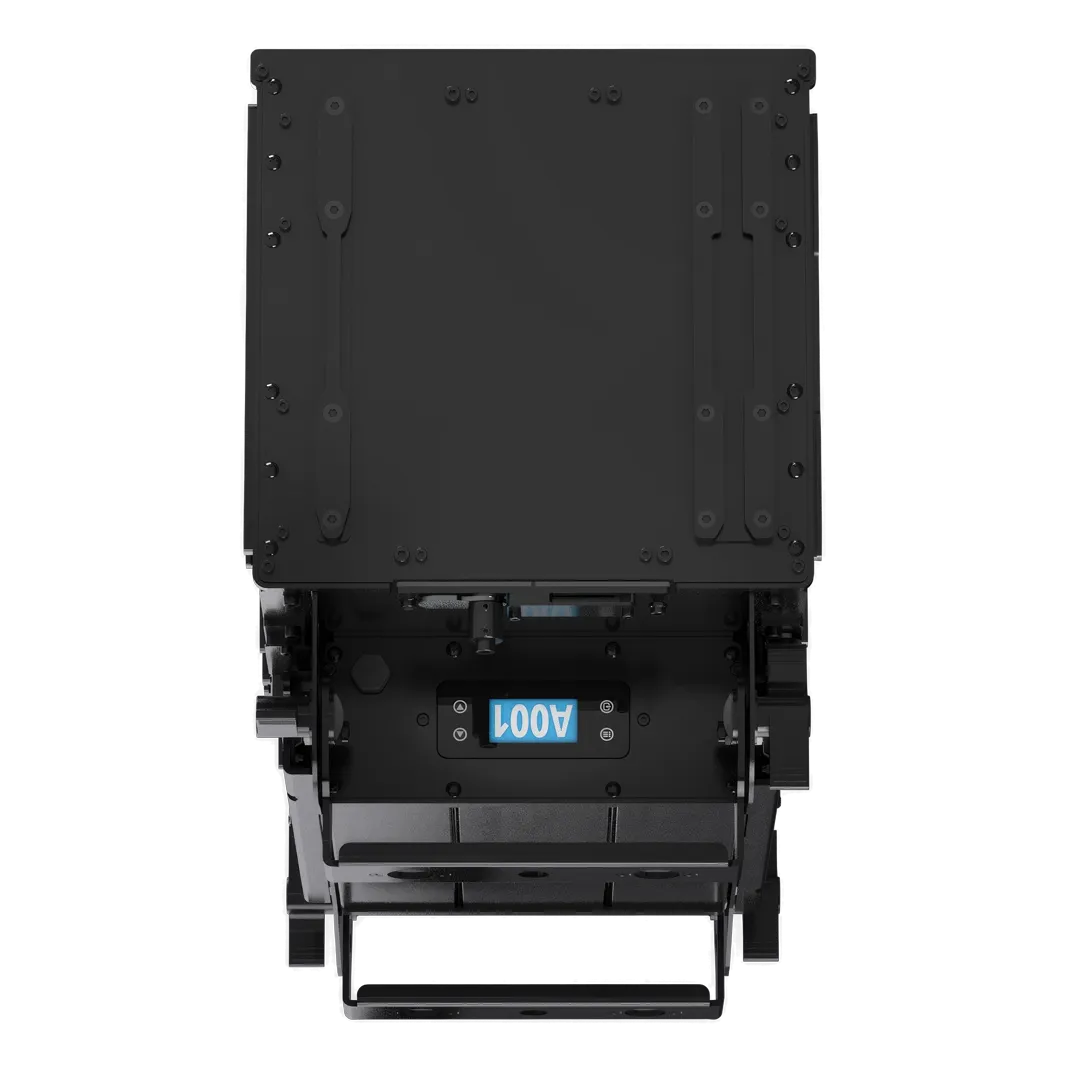

USER INTERFACE

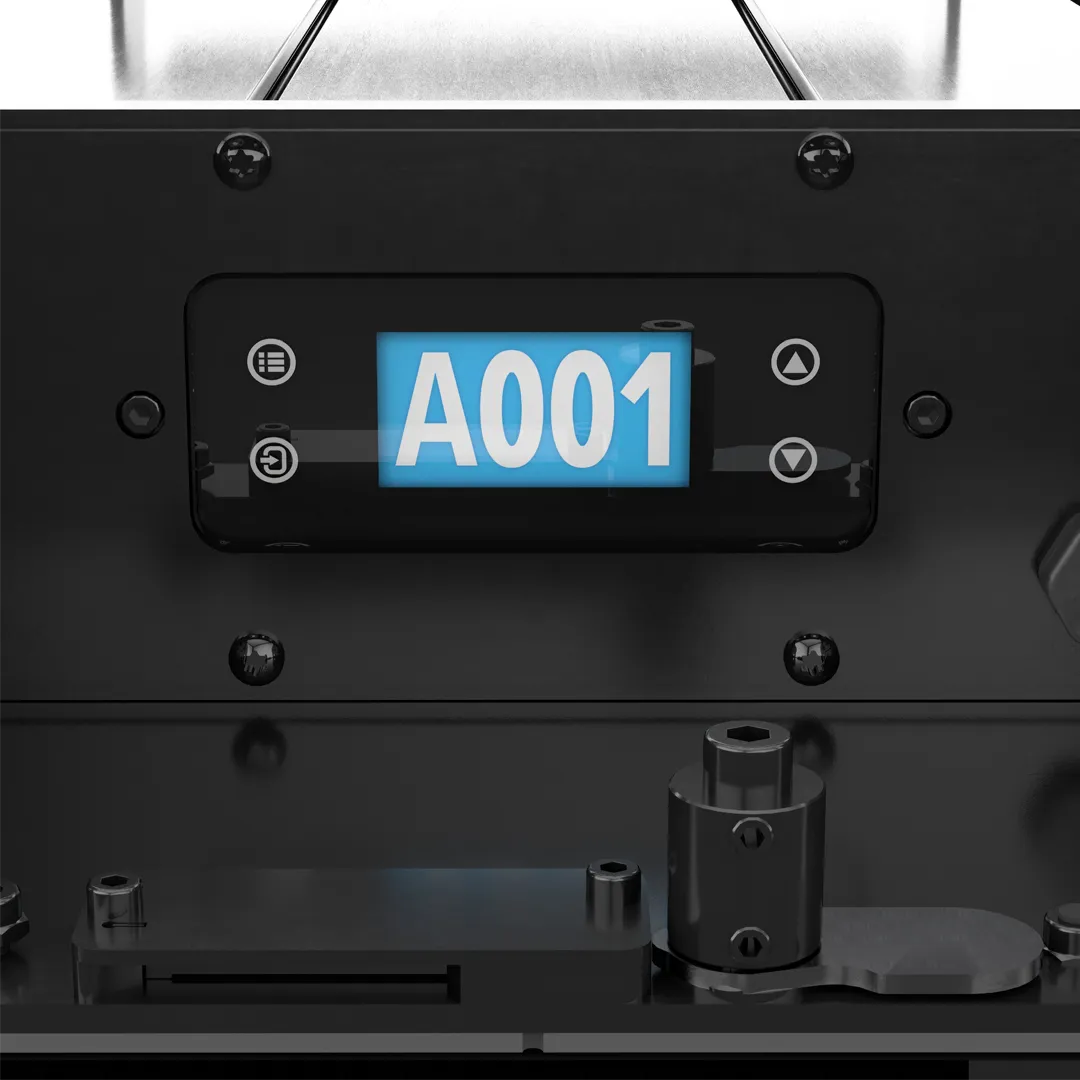

• LCD display + 4 capacitive touch keys

POWER SUPPLY

• Wide-range 100-240 Vac 50/60 Hz
• Power consumption: 210 W max
• Power Factor: PF >0.95

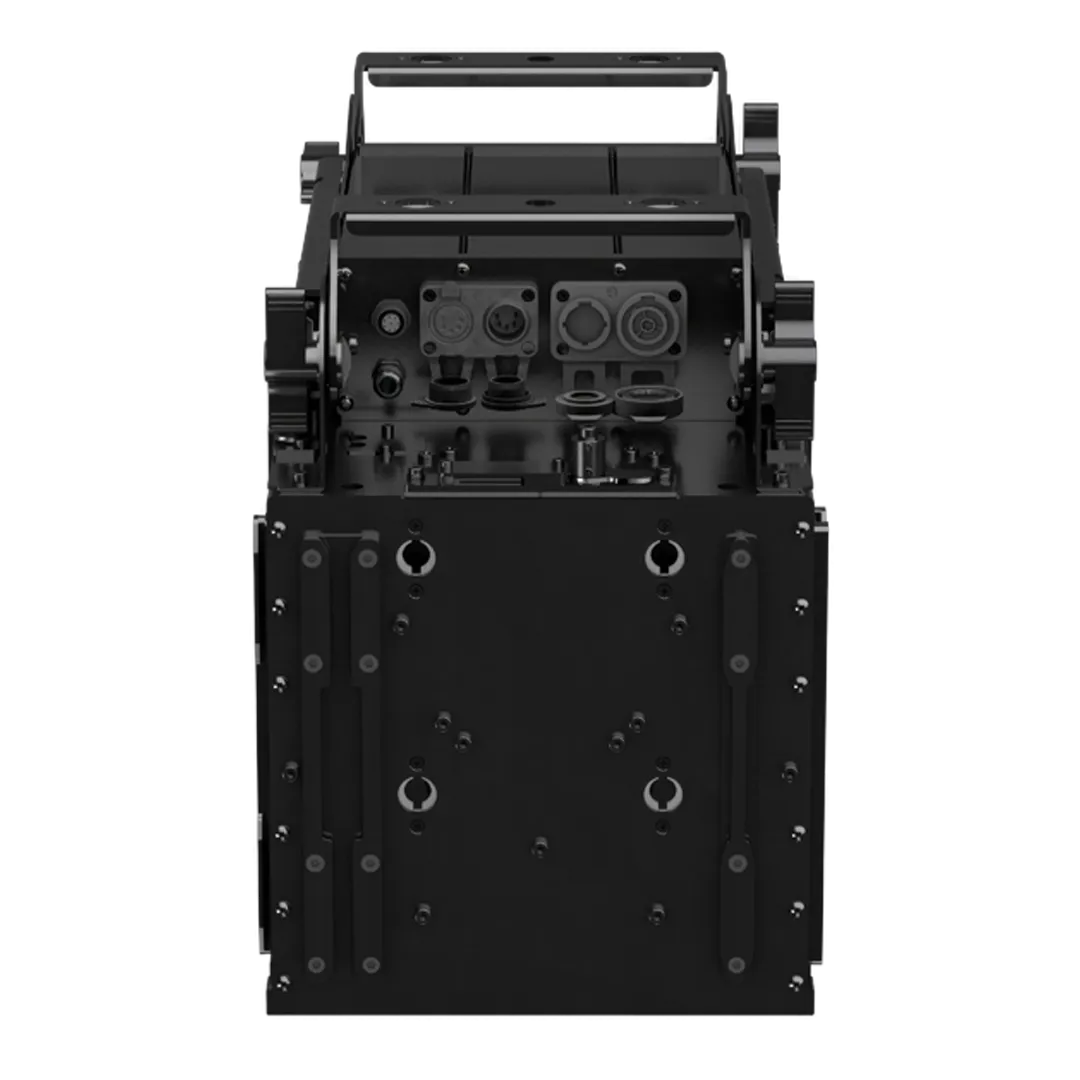

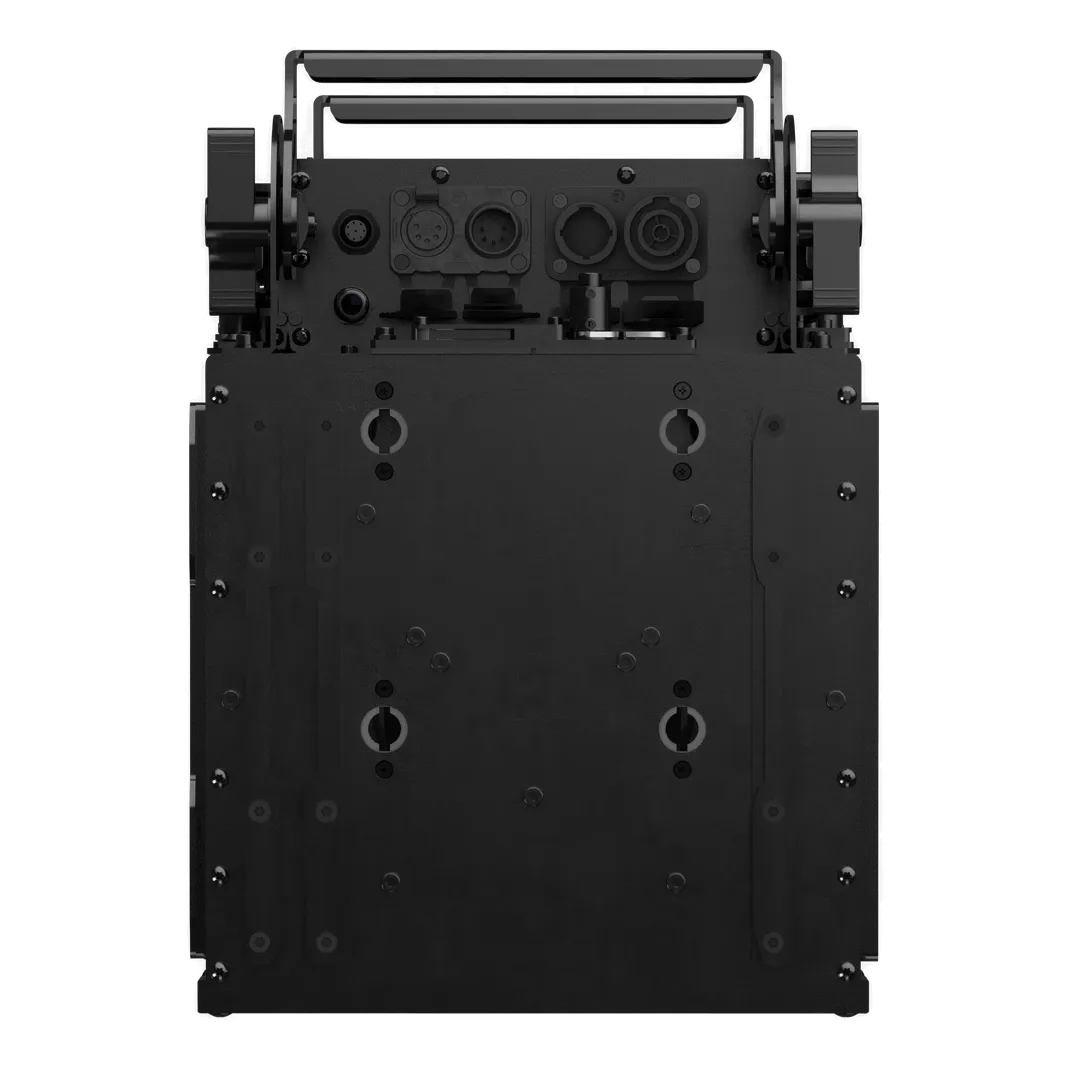

CONNECTIONS

• DMX: XLR 5-pole In/Out panel connector
• Power supply: compatible powerCON True1 panel connector

MOUNTING OPTIONS

• Compact design allowing two units to be paired within a 500 × 500 mm footprint (standard LED panel size)
• FAD (Fast Array Design) system, enabling:
  • aligned or staggered configurations;
  • 250 mm pitch;
  • no additional accessories required.

• Mounting via:
  • dual adjustable rear brackets;
  • fast-lock connections on three sides.

CIRCUITS PROTECTIONS

• Overvoltage and overtemperature circuits protection

TEMPERATURE

• Operating: -5° +45° C
• Storage: 0° +45° C

PHYSICAL

• Housing : Alluminium
• Brackets : 316L stainless steel
• Finishing: Black – White

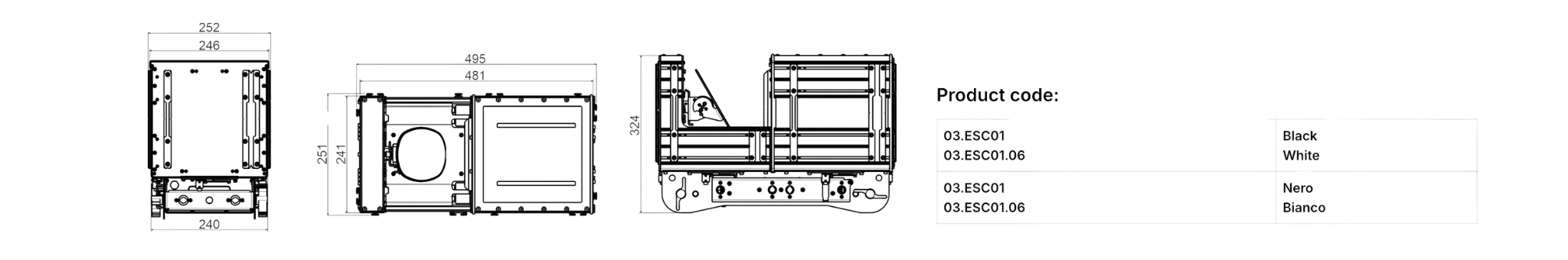

• Dimensions: 252x495x324 mm
• Weight: 21,5 Kg (47,4 lbs)
• IP rating: IP65
• Corrosion rating: Cat. 4 (According to EN 1396) Very severe costal marine application

TEST AND CERTIFICATION

• CE

ACCESSORIES INCLUDED

• 1 x XLR 5 pins male cable connector (code 0520P126)
• 1 x XLR 5 pins female cable connector (code 0520P127)
• 1 x PowerCON REAN female cable connector IP66 (code 0520P129)
• 1 x PowerCON REAN male cable connector IP66 (code 0520P130)
• 2 x Kit Omega clamp “Fast lock” (code 02K00551)

ACCESSORIES ON REQUEST

• Safety cable 5 x 600 mm – max capacity load 60 Kg (code 0521A038)
• Aliscaf clamp for tube diameter 48-51 mm – max. load. 200 Kg (code 0521A033)
• G-QUICK clamp Professional – max. load 100 Kg (code 0521A037)
• Outdoor DMX cable 2 x 0,25 mm2 – Flame retardant (code 0509C158)
• Power supply cable 3 x 1,5 mm² (code 0509C040)
• DTS firmware Uploader Dongle (code 03.LA.206)
