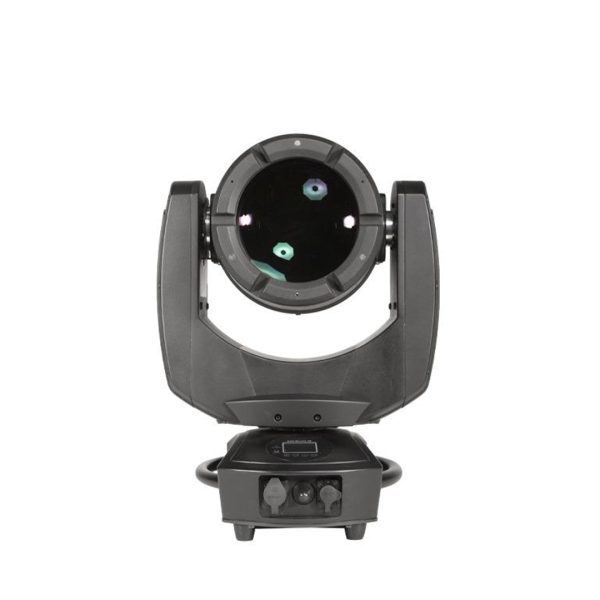

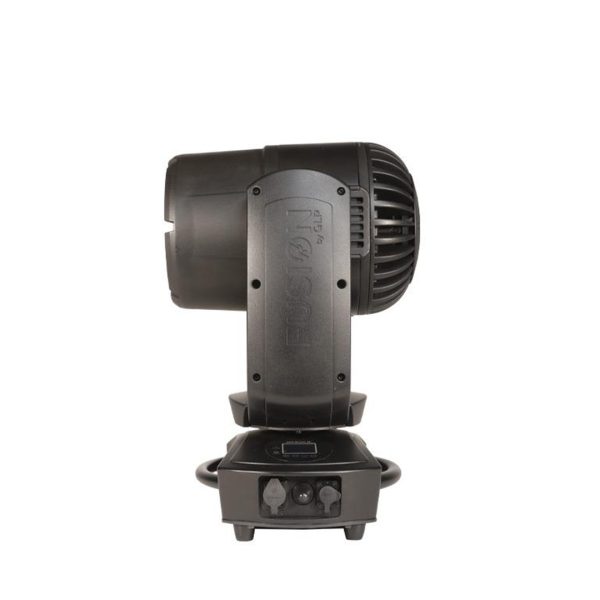

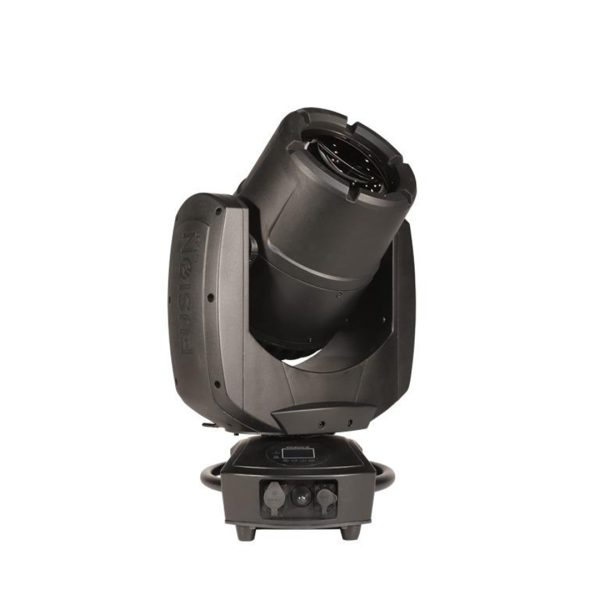

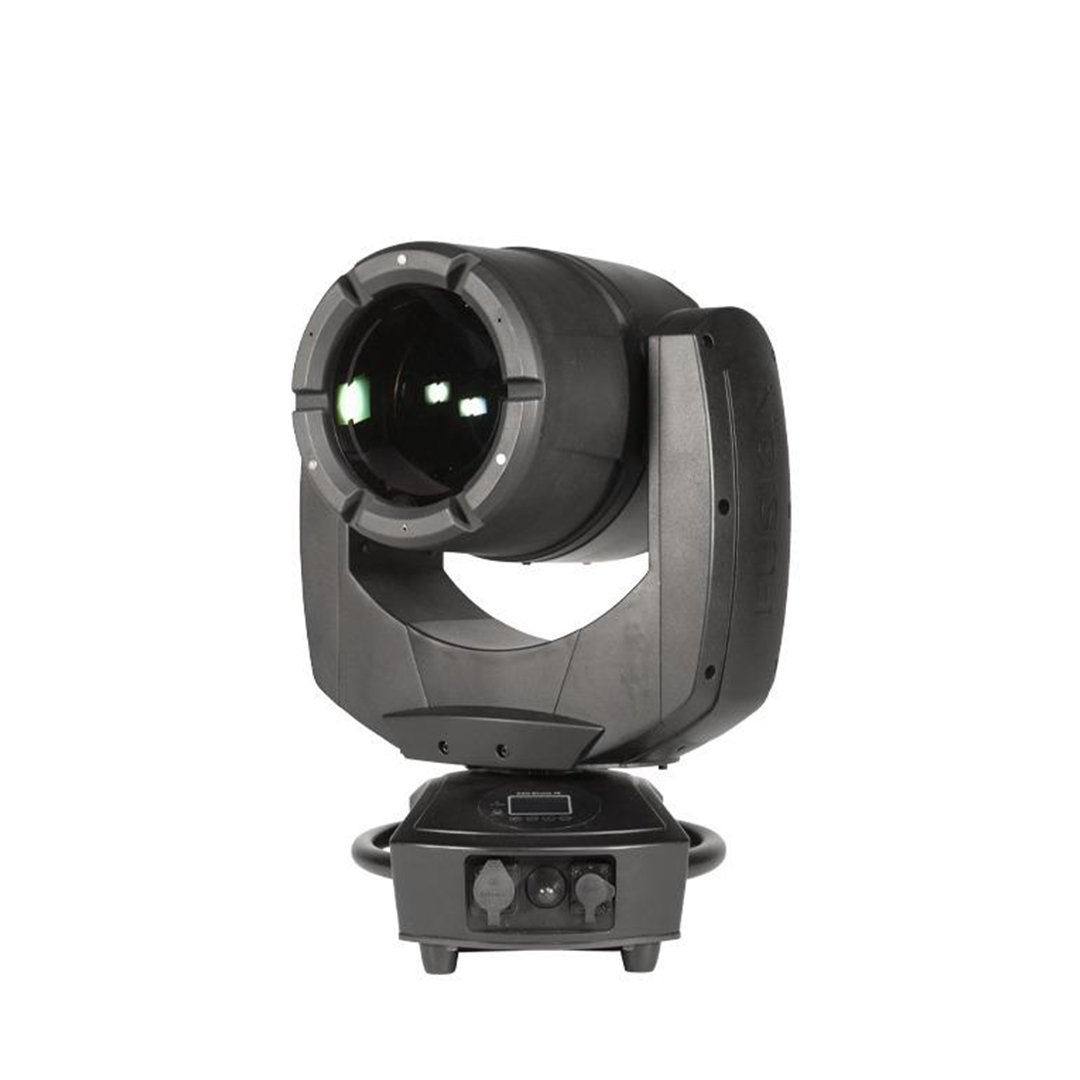

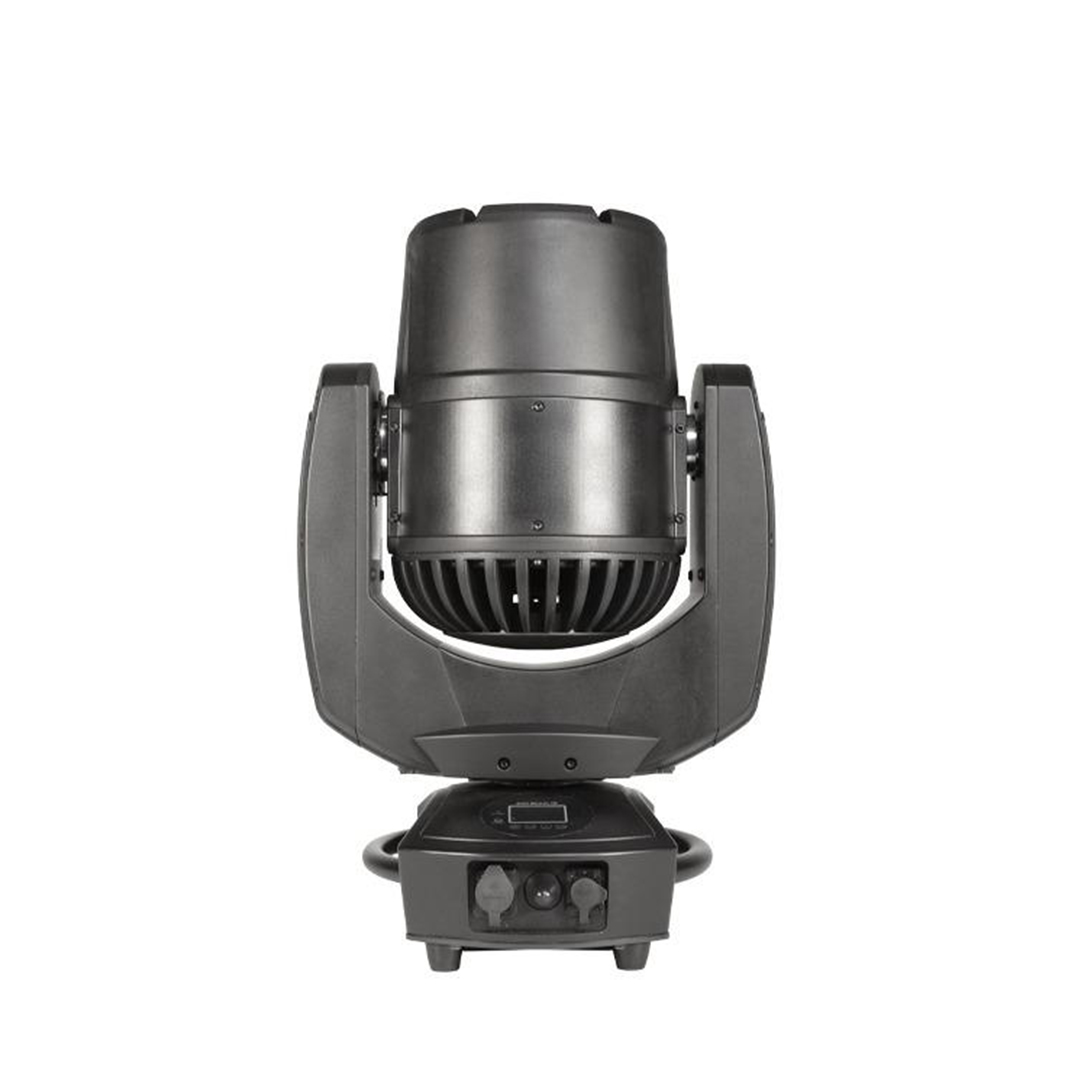

FUSION by GLP’s Exo Beam 10 is a powerful IP65 rated Moving Head with a beam angle of just 1°, generating a sharp beam that can be seen for long distances.

The Exo Beam 10 features a single, powerful and highly efficient 90 W, 7,500 K white light LED engine.

With its 160 mm front lens, the fixture features an incredible 1° beam angle and a field angle of just 1° along with incredibly fast pan and tilt movements, combining to give incredible mid air effects – either indoor, or out.

The powerful beam fixture comes equipped with a range of additional effects, including two independent rotating prisms that can be used individually, or combined together for stunning aerial effects; a hybrid gobo wheel with both static and rotating gobos; a color wheel with 14 colors; as well as motorized focus, variable speed shutter and 16 bit pan and tilt movement.

The versatile fixture can operate anywhere in the world, and in any orientation with wireless DMX control available as an optional extra. With a robust die cast housing which combined with the IP65 rating make the Exo Beam 10 ready for even the worst of outdoor conditions.

Compare
SKU: EXOBEAM10 Categories: ,

Description

Specifications

Lightsource

Typ
  • White light LED-Engine
Number of Light Sources
1
Light Source Power
  • 90 W
Light Source Lifetime
  • 20,000 h

Optical system

Focus
  • motorized
  • 2m – infinite
Output
2.300 lm
Output Lens Diameter
160 mm / 6.3 in
Beam angle
fixed, 1°

Effects

Dimmer
  • 0 – 100% electronic
  • regular and random strobe and pulse effects
Prism
  • 6-way linear
  • rotating
Gobo Wheel 1
  • 7 rotating + 7 fixed Gobos + open
  • rotatable and indexable
Color wheel
  • 14 dichroic color filters + open
Pan
  • 540°
Tilt
  • 239°
Prisma 2
  • 8-way
  • rotating

Control

Display
  • self charging buffer battery
  • OLED display with 4 buttons
Protocol
  • DMX (USITT DMX512-A)
  • RDM (ANSI/ESTA E1.20)
Wireless
  • Lumenradio CRMX DMX/RDM (optional)
Software Update
  • DMX link
DMX channels
15
Control Modes
1
Dimming Curves
  • linear
  • soft
Fan Modes
  • regulated
  • high
  • medium
  • low

Connectors

Signal connection
  • XLR 5-Pin
  • In/Out
Power Input
  • Neutrik powerCON TRUE1
  • In/Out

Mounting Options

Mounting
  • 2 pair of 1/4-turn locks
  • Rubber feet
  • eyelets for safety cable
Orientation
  • any
min. distance to combustible materials
  • 0.5 m / 18.7 in
Location
  • Outdoor temporary

Shipping

Single fixture
  • cardboard

Dimensions & Weight

Height (head vertical)
569 mm / 22.4 in
Width (across yoke)
380 mm / 14.96 in
Length
279 mm / 11 in
Weight
25,5 kg / 56.22 lbs

Electrical Specifications

Power input
  • 100 – 240 VAC / 50 – 60Hz
Power supply
  • auto-ranging electronic switch-mode
Fuse
  • T5A 250 V
max. power (@230V)
185 W, 0,8 A

Thermal Specifications

Cooling
  • combined convection and forced air
max. ambient temperature (Ta max.)
45°C / 113°F
min. ambient temperature (Ta min.)
-20°C / -4°F

Construction

Housing Color
  • Black
Housing Material
  • Aluminum
Protection Rating
  • IP 65
Construction Features
  • Pan-Tilt-Lock-System

Additional information

Brand

Fusion
